DETAILS

• Utilizing Luminus SFT40
• 9° beam angle, provides an intense focused lighting

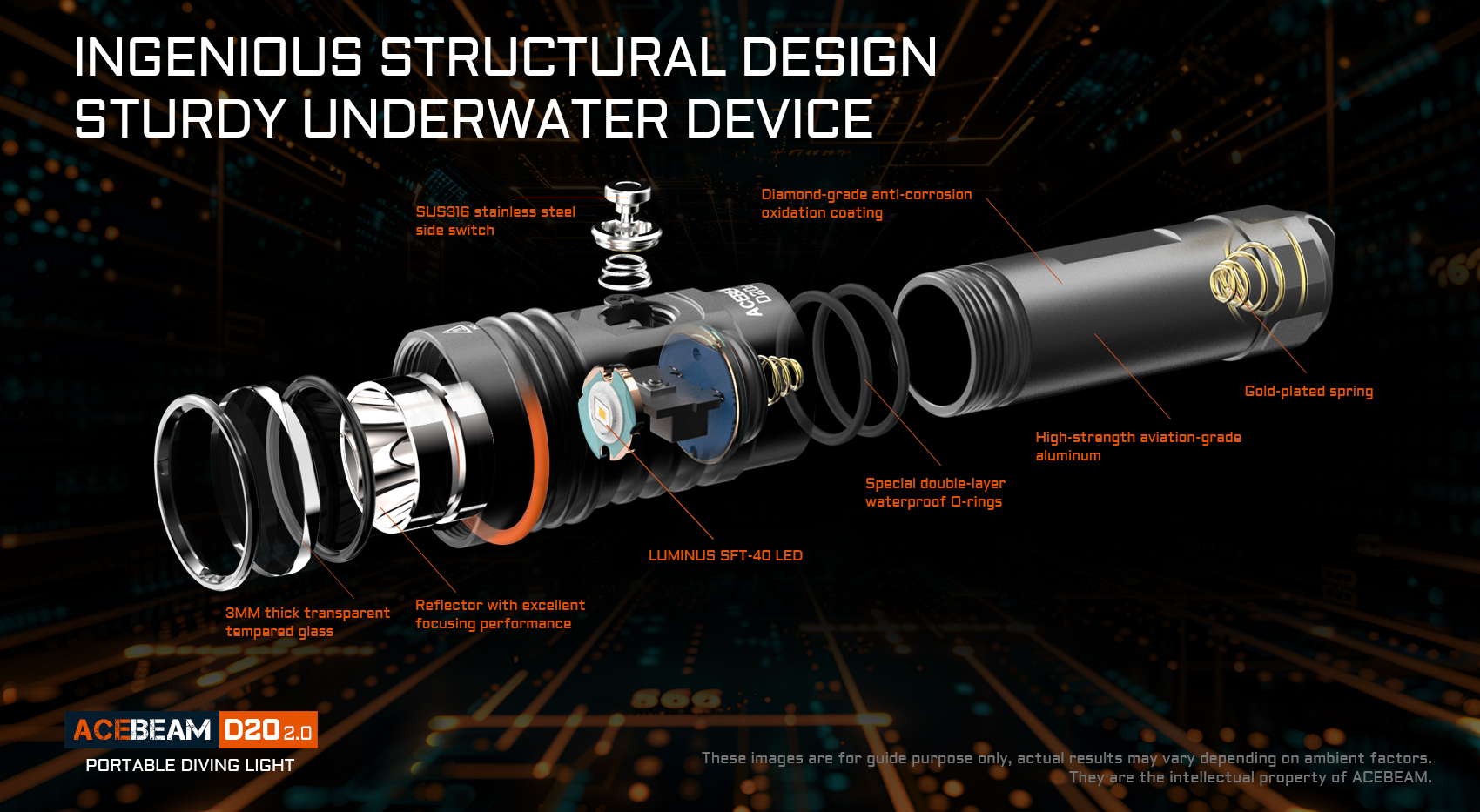

• Professional pressure-resistant and waterproof structure design, diving depth underwater 200 meters
• SUS316 side switch has better corrosion resistance and is more suitable for deep sea diving environment
• Ultra-clear tempered glass lens with anti-reflective coating, light transmittance reaches 98.3%
• Battery indicator light, which shows the remaining battery power
• Coated with tempered glass on both sides, can withstand deep water and high water pressure
• The surface forms a diamond-like high-strength protective film to resist seawater corrosion
• High strength and impact-resistant HAIII hard-anodized anti-abrasive and corrosion-resistant finish
• All metal body (AL6061-T6 high-quality aluminum alloy) can withstand 1.5-meter drop test
• IP68 Dust-proof and Waterproof Rating

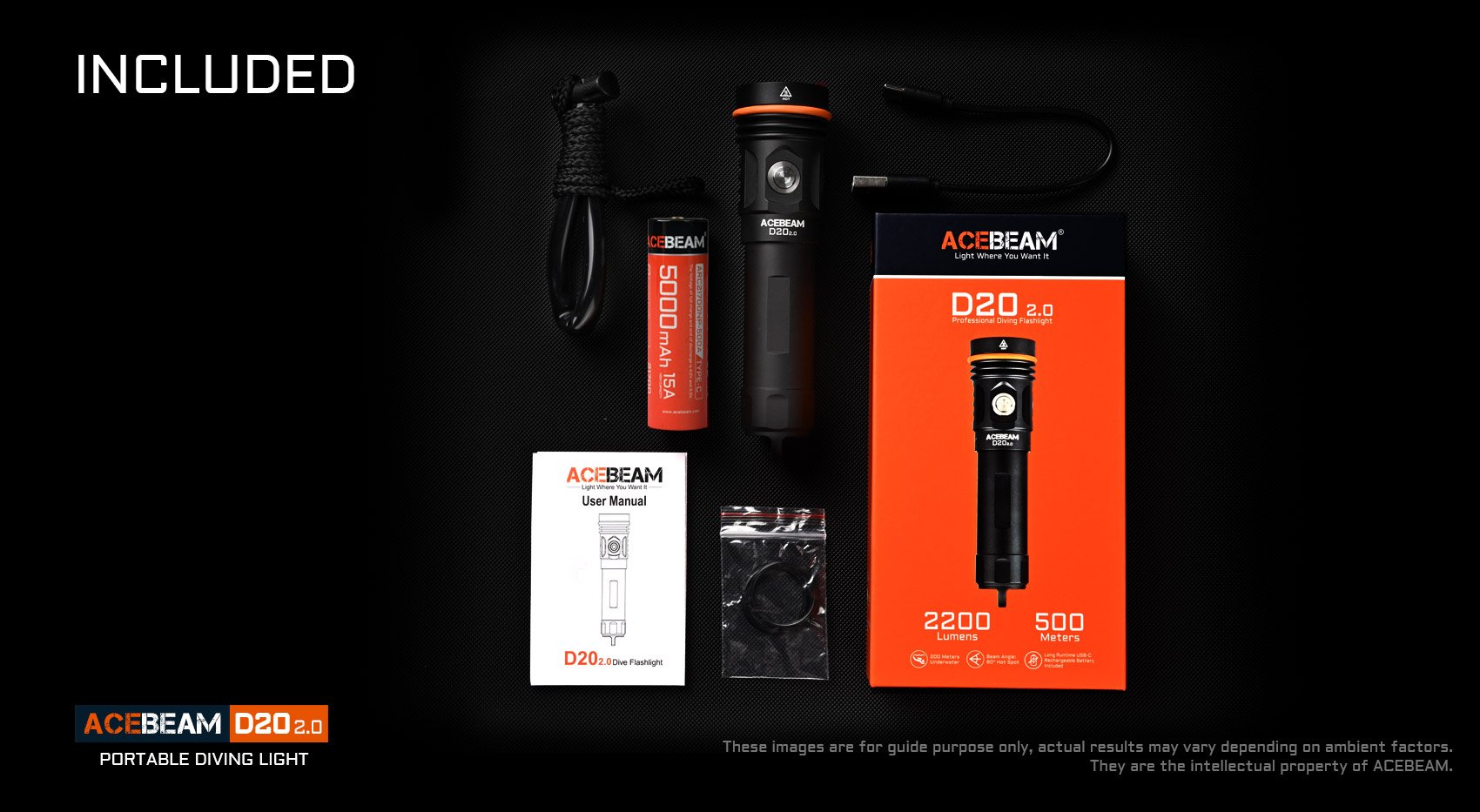

• Included: 1 x ACEBEAM 21700 USB-C rechargeable battery

SIZE

• Length: 136mm/ 5.35 inches
• Head dia.: 34mm/1.33 inches
• Tube dia.: 27mm/1.06 inches
• Weight: 128g/ 4.51oz (w/o battery)

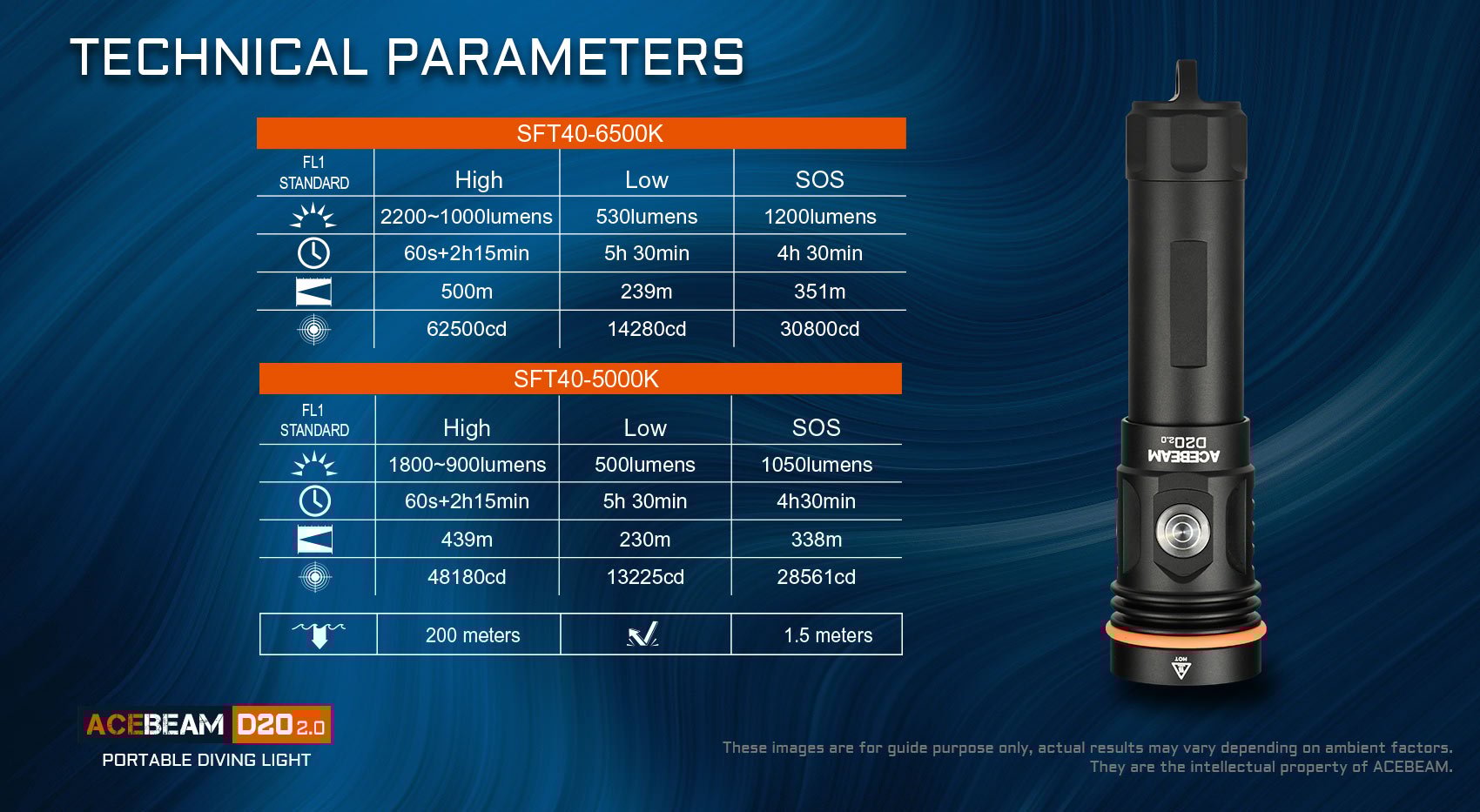

OUTPUTS

• 1 x Luminus SST-40 LED 6500K

Low: 530 lumens; 14280cd; 239 meters; 5 hours 30 minutes
High: 2200~1000 lumens; 62500cd; 500 meters; 60 seconds + 2 hour 15 minutes
SOS: 1200 lumens; 30800cd; 351 meters; 4 hours 30 minutes

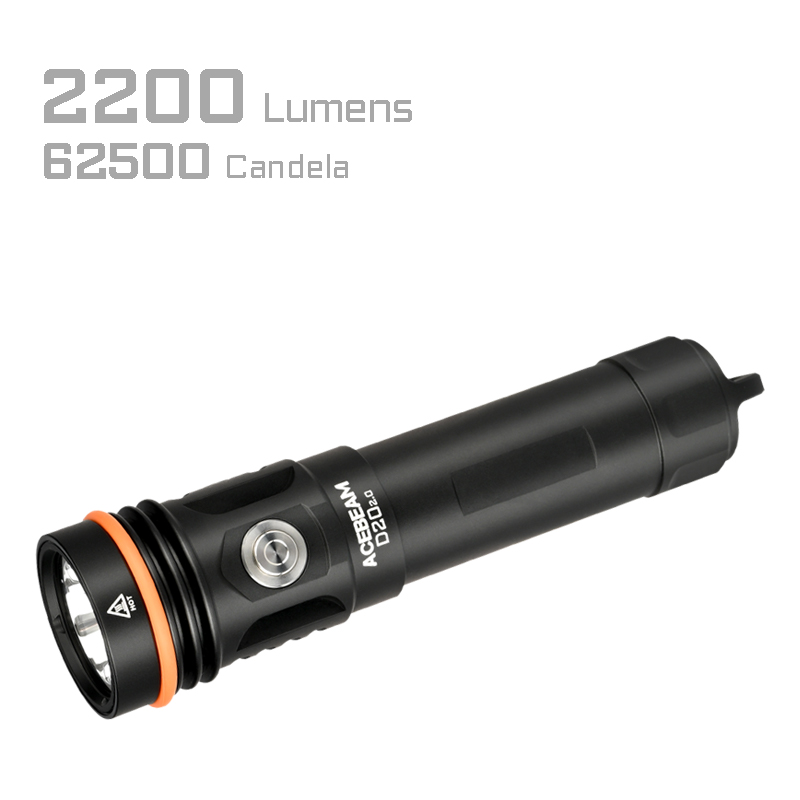

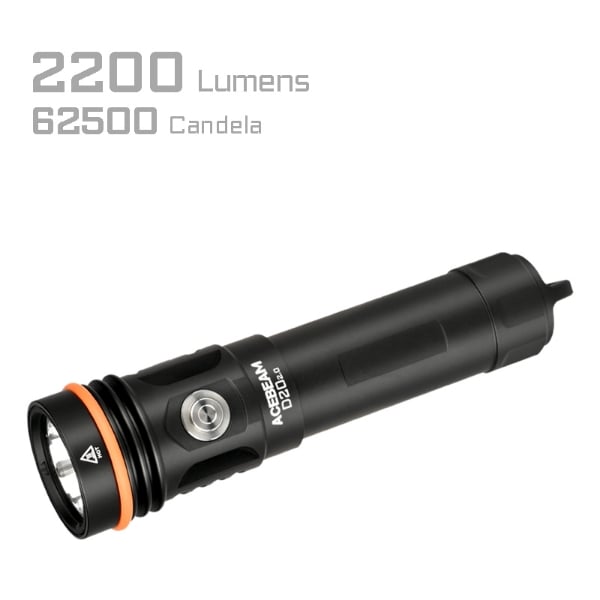

Max. output: 2200 lumens
Max. beam distance: 500 meters
Max. runtime: 5 hours 30 minutes on 530 lumens
Peak beam intensity: 62500cd

• 1 x Luminus SST-40 LED 5000K

Low: 500 lumens; 13225cd; 230 meters; 5 hours  30 minutes
High: 1800~ 900 lumens; 48180cd; 439 meters; 60 seconds + 2 hour 15 minutes
SOS: 1050 lumens; 28561cd; 338 meters; 4 hours 30 minutes

Max. output: 1800 lumens
Max. beam distance: 439 meters
Max. runtime: 5 hours 30 minutes on 500 lumens
Peak beam intensity: 48180cd

What kind of LEDs is used in D20 2.0? Does ACEBEAM offer LED replacement service?
A: It utilizes one Luminus SFT40.

ACEBEAM does not offer LED replacement service currently, and please do not replace the LEDs privately, as doing so may affect product performance or cause damage to the product.

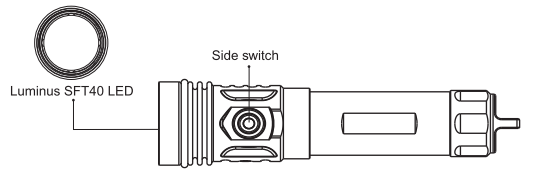

May I have an overview of D20 2.0?

How to get started?

What kind of battery can be used in D20 2.0 and how to install?

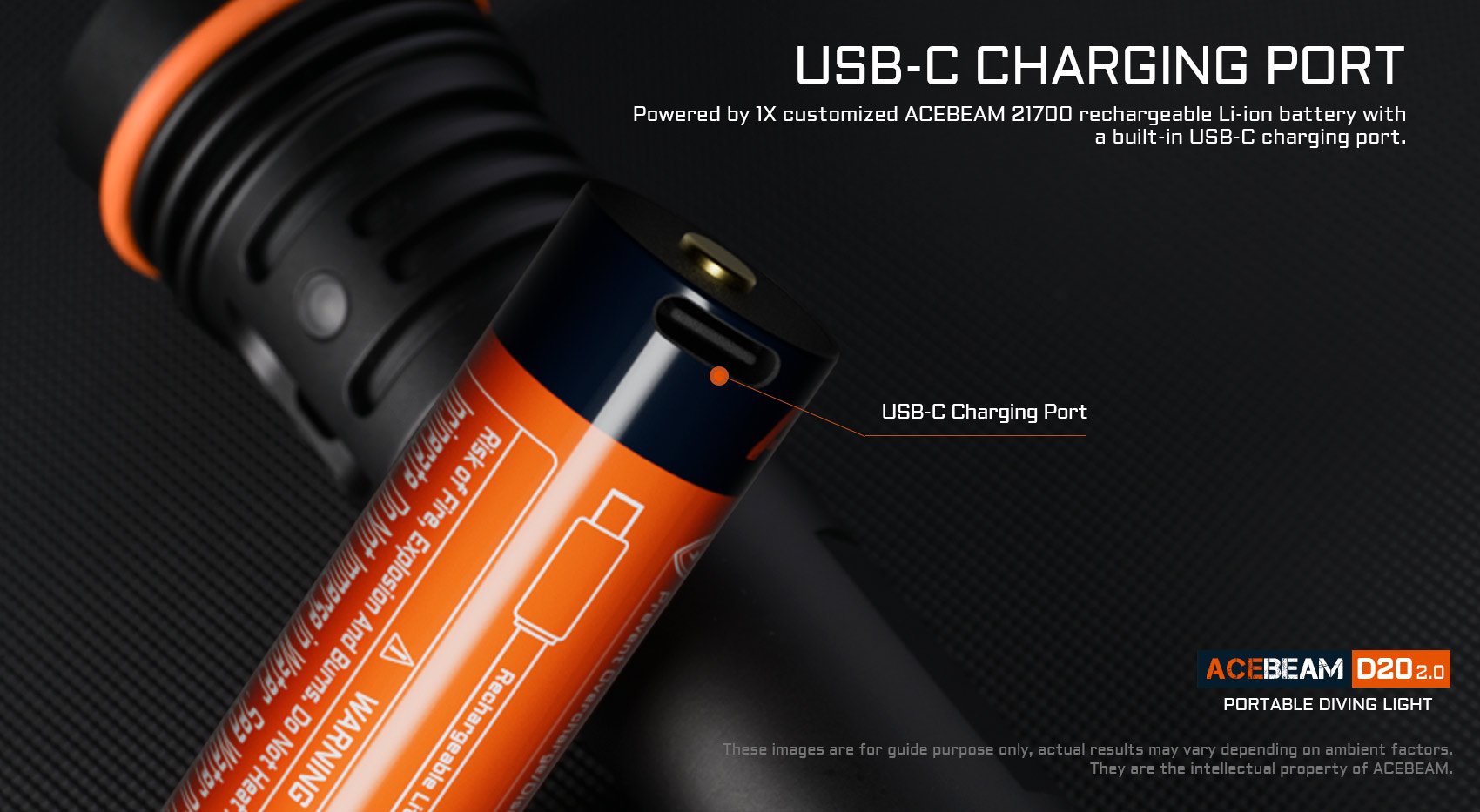

A: It is recommended to use an ACEBEAM 21700 USB-C rechargeable Li-ion battery (included).

Note:  While installing the battery, make sure the battery is inserted with the positive (+) end pointing to the head of the flashlight.

What does the light color mean of charging indicator?
A: Yes.

How to operate?

- ON/OFF: press and hold for > 0.5s
- Output selection: with the flashlight is ON, click the switch to cycle through Low-High-SOS-Low, and release the switch to select the mode.
- Lock: when the flashlight is OFF, press and hold the switch for 3s.
- Unlock: when the flashlight is locked, press and hold the switch for 3s.

Is it waterproof?
A: Yes, it is IP68 rated. Tough enough to support you in every moment.

What should I do if it needs repair?
A: Please refer below:
 • 15-day replacement: ACEBEAM will replace any quality defective lights within 15 days of purchase.
 • 5-year free repair: ACEBEAM will repair an LED light free of charge within 5 years (LEP model, battery, battery pack, charger, remote switch, and other accessories: 1 year) of purchase if problems develop with normal use.
 • Limited lifetime warranty, if repair is required after 5 years from the date of purchase, ACEBEAM will charge for parts.
Please keep your warranty card in contacting the authorized distributors for after-sale maintenance, and the customer information is required to fill out if repair is needed.
