OUTPUTS

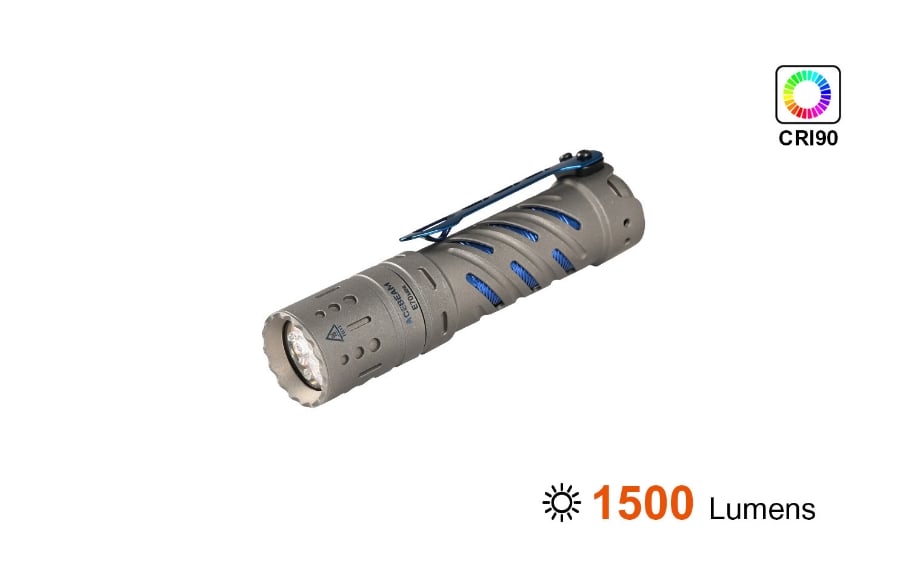

• 3 x Nichia 519A LED: Max output: 1500 lumens, Max throw: 140m

DETAILS

• Utilizes 3 x Nichia 519A high CRI 90 5000K LED
• Pocket-sized, compact
• Digitally regulated output maintains constant brightness
• 5 Brightness levels, Strobe and Moonlight available
• Utilize the most sophisticated technology to offer a small device that doesn't sacrifice power

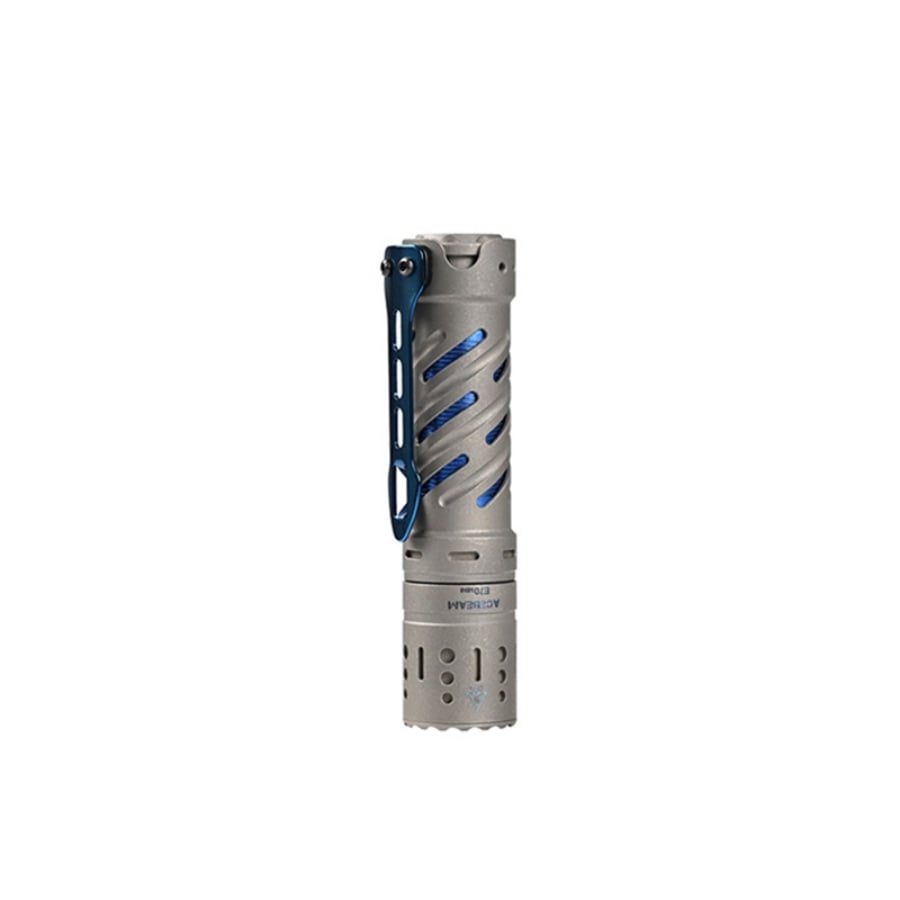

• The outer shell is stonewashed titanium, has a swirl pattern milled into it, and an inside layer with the blue inner tube
• High efficient circuit provides stability and optimum performance
• All circuitry contact points are gold-plated, providing better conductivity and superior durability
• All-in-one tail switch for convenient operation
• Tail stand eligible it use as a candle
• Ultra clear tempered glass lens with anti-reflective coating
• Tritium slots for glow tubes/tritium vials
• IP68, ideal for camping, hiking, fishing, dog walking, and more.

BATTERIES

• Included: 1 x ACEBEAM 18560 USB-C rechargeable battery

SIZE

• Length: 111mm/4.37 inches
• Head dia.: 26mm/1.02 inches
• Body dia.: 23.4mm/0.92 inches
• Weight: 93.2g/3.3 oz (w/o battery)
• Weight: 144.8g/5.1 oz (incl. battery)

Are there any tips for daily use?
A: Tips:
• Do not allow kids to play with it.
• Do not shine the light directly into human eyes.
• Do not cover the light head when the flashlight is on, or place the flashlight head on the ground.
• Do not modify/disassemble the light, otherwise, it may invalidate the warranty.
• Do not use the turbo mode continuously when the environmental temperature is high.
• Please keep the front lens clean and for more information, please refer user manual.

What kind of LED is used in E70 MINI Ti? Does ACEBEAM offer LED replacement service?

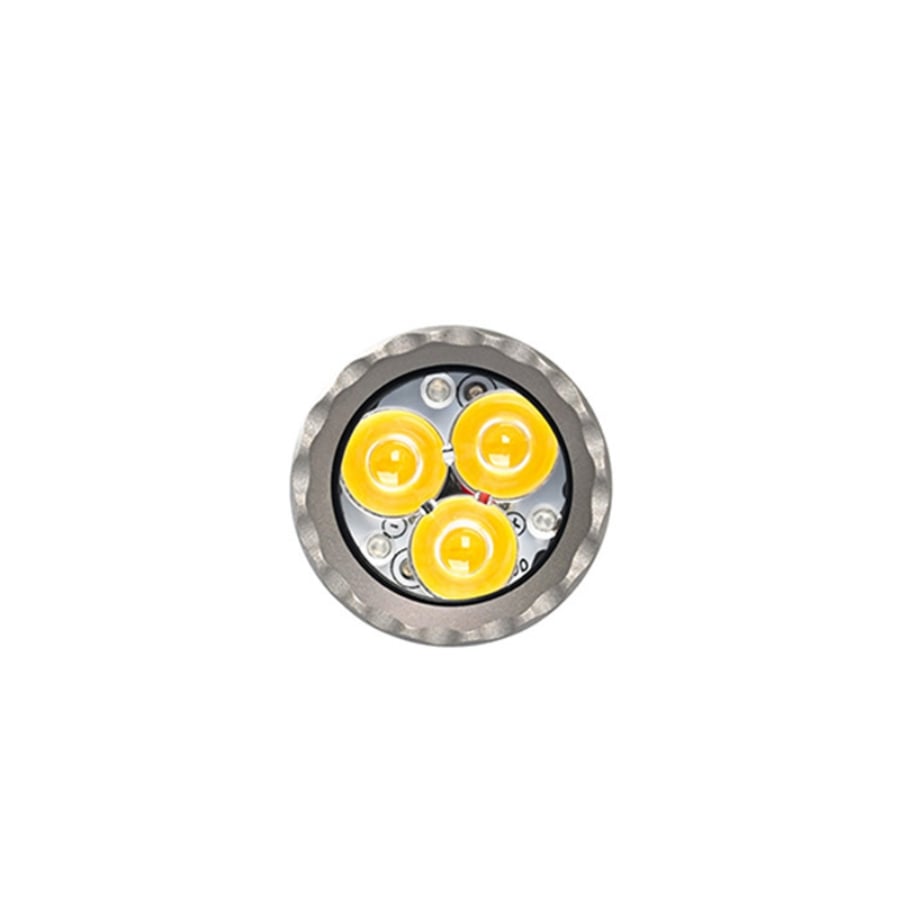

A: It utilizes three Nichia 519A LEDs.

ACEBEAM does not offer LED replacement services currently, and please do not replace the LEDs privately, as doing so might affect product performance and cause damage to the product.

What sort of battery is included in E70 MINI Ti?
A: One ACEBEAM 18650 USB-C Li-ion rechargeable battery.

How to get started?

A: Before first use, please remove the insulating film.

How to install battery?


How to operate?

- ON/OFF: Double-click to turn ON, Single click to turn OFF
- Output selection: with the flashlight is ON, press and hold the switch to cycle through Low-Med1-Med2-High, and release the switch to select the mode.
- Turbo: double-click, and double-click again to switch between Turbo and the memorized mode.
- Strobe: Triple-click
- Ultra-Low: when the flashlight is OFF, long press the switch for about 0.5s
- Lock: when the flashlight is OFF, press and hold the switch for 5s.
- Unlock: when the flashlight is locked, press and hold the switch for 5s.

Does it have Low-voltage warning?
A: Yes, when the battery power < 20%, the light will automatically lower its lighting level. When step down to Moonlight and the battery voltage < 2.7V, it will turn OFF.

What should I do if it needs repair?
A: Please refer below:
 • 15-day replacement: ACEBEAM will replace any quality defective lights within 15 days of purchase.
 • 5-year free repair: ACEBEAM will repair an LED light free of charge within 5 years (LEP model, battery, battery pack, charger, remote switch, and other accessories: 1 year) of purchase if problems develop with normal use.
 • Limited lifetime warranty, if repair is required after 5 years from the date of purchase, ACEBEAM will charge for parts.
Please keep your warranty card in contacting the authorized distributors for after-sale maintenance, and the customer information is required to fill out if repair is needed.
