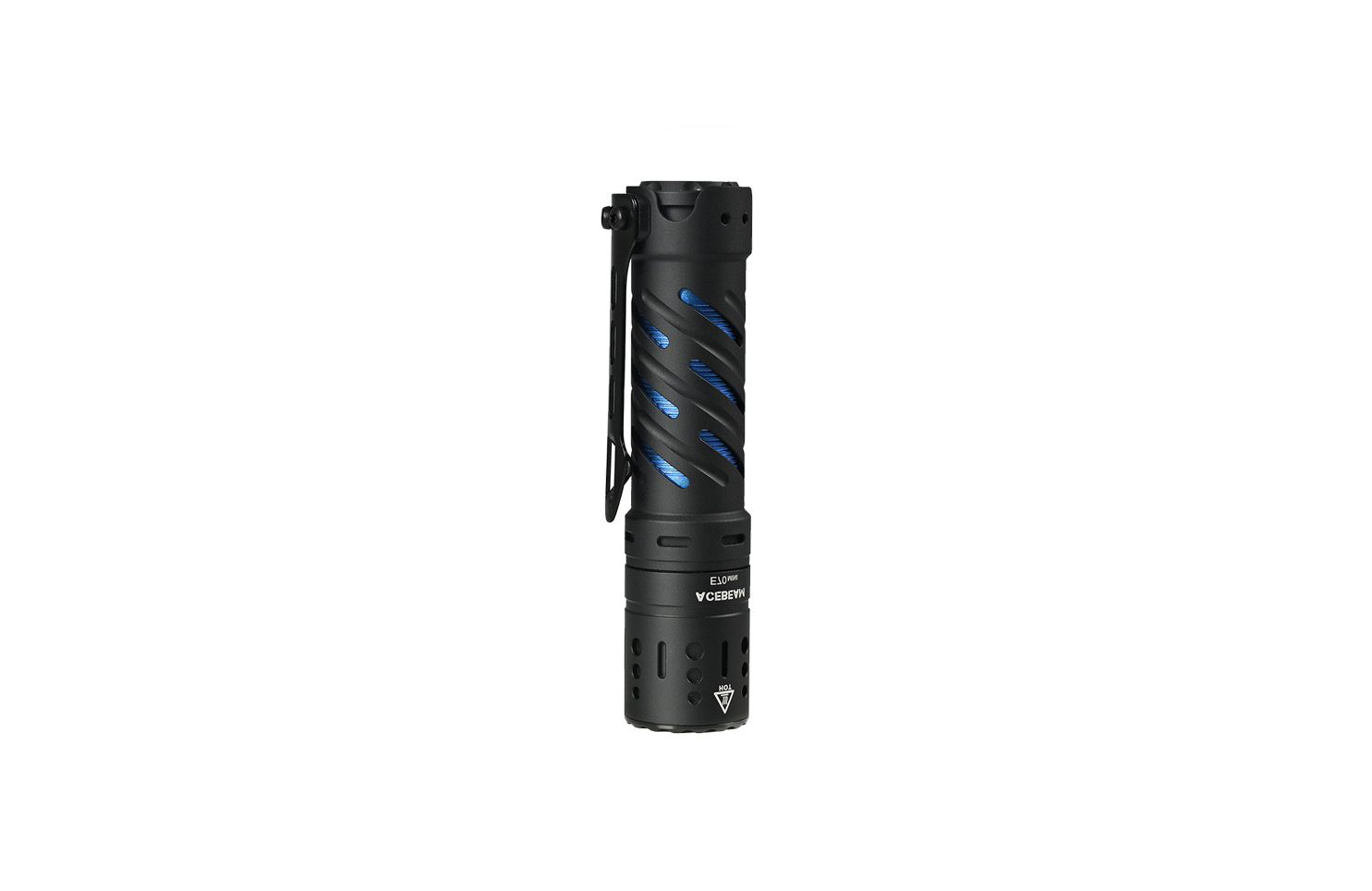

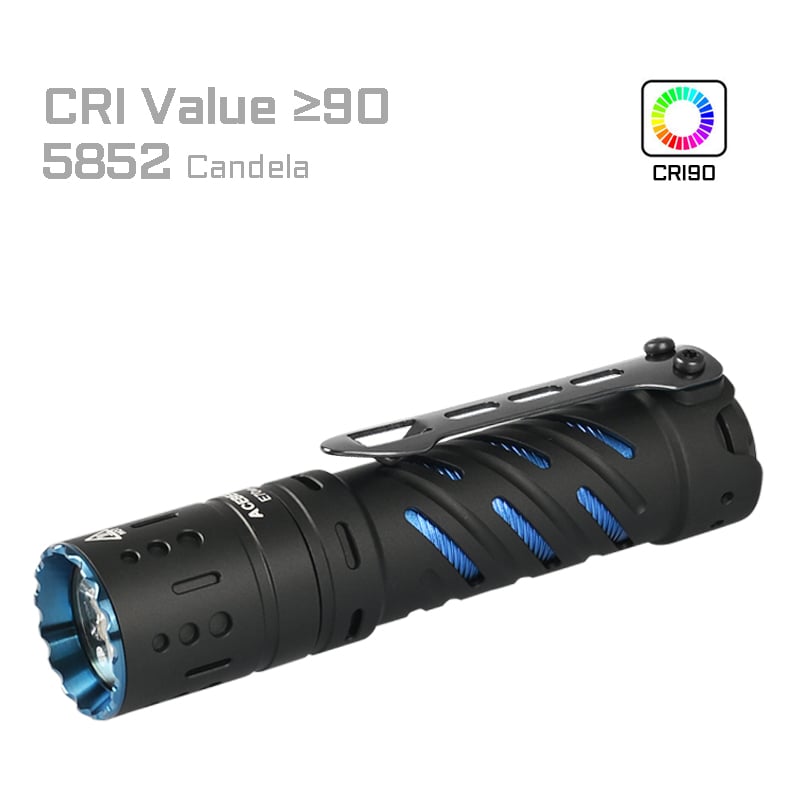

E70 MINI Nichia 519A Flashlight

OUTPUTS

3 x Nichia 519A 5000K CRI 90, Max Output 2000lm, Max throw 153m

DETAILS

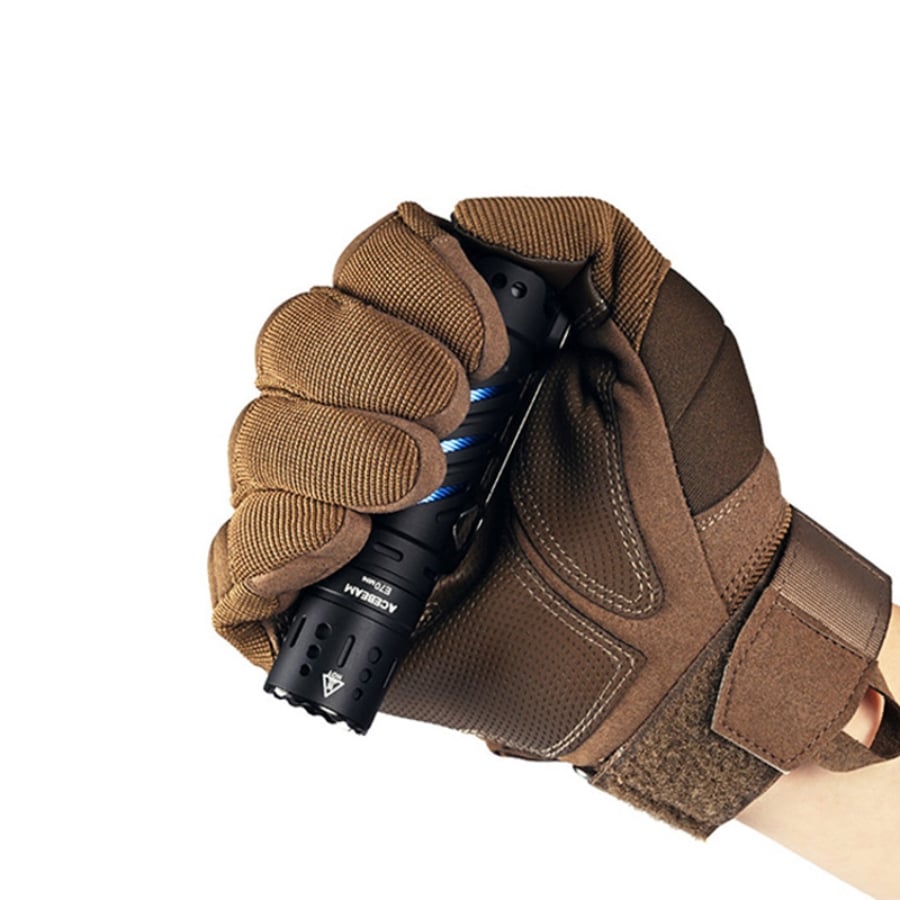

Compact size
Diminutive and finely crafted (only 72g w/o battery)

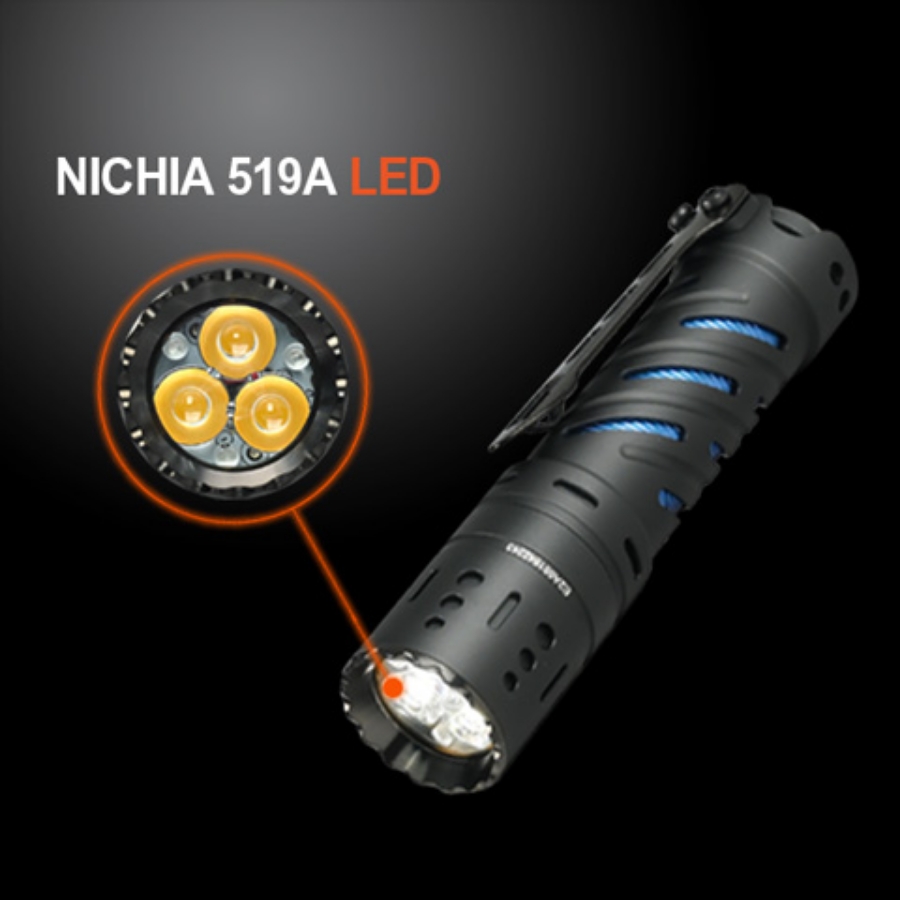

Utilizes 3 Nichia 519A LEDs, burst max. output 2000 lumens

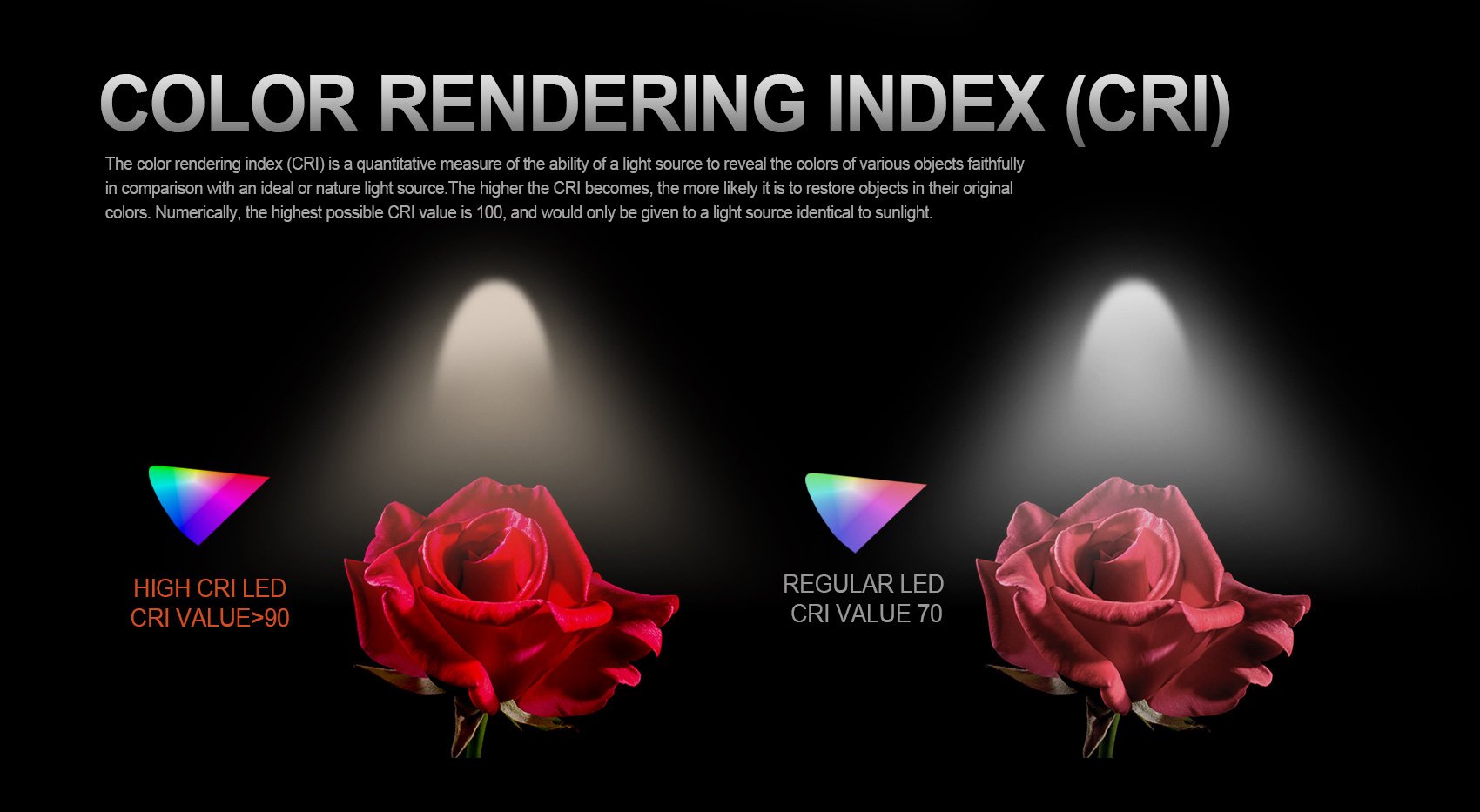

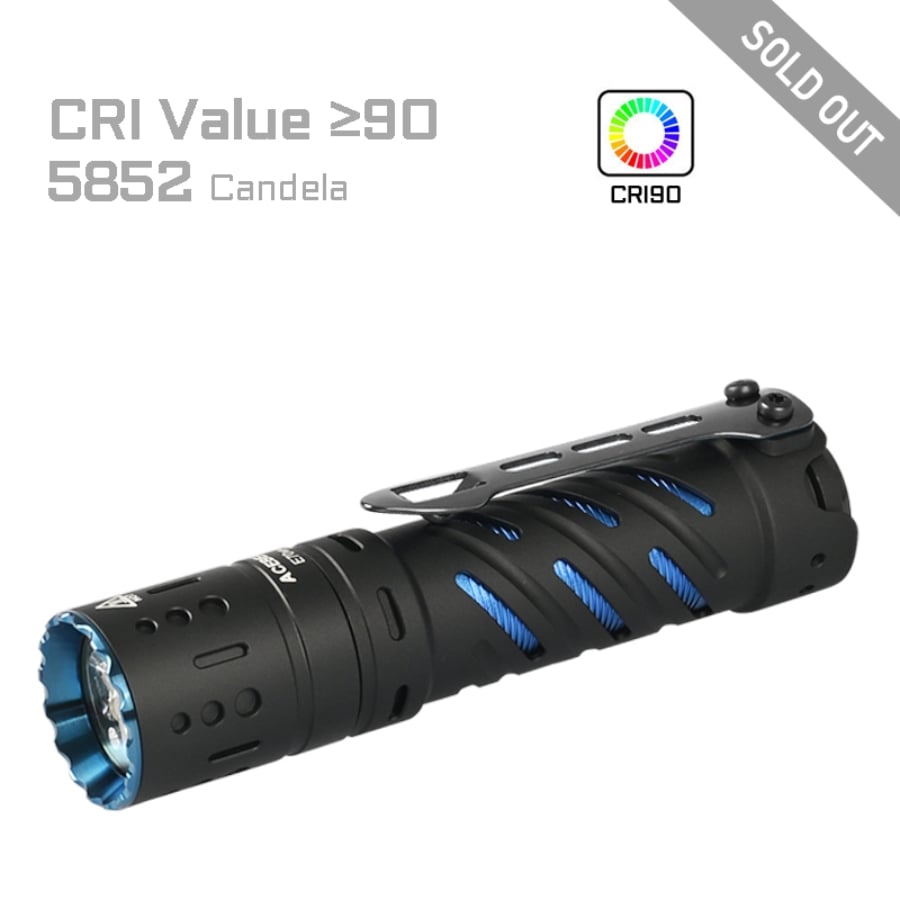

The high CRI>90 Nichia 519A LED produces a uniform and smooth spot with no artifacts, capable of revealing every detail on objects
Neutral white (5000K) uniform spot reducing chances of misdiagnoses
5 Brightness levels and 2 special modes (Strobe and Ultra-Low) for various scenarios
With a stainless steel clip can be attached to pockets
Highly efficient circuit design
Stylish double layers tube design for better grip and heat insulation
Lockout mode and "double click to turn on" design prevents accidental activation
Toughened ultra-clear mineral glass with dual-side anti-reflective coating ensures the highest optical efficiency and light transmittance
HAIII hard-anodized anti-abrasive and corrosion-resistant finish
AL6061-T6 high-quality aluminum alloy body can withstand 1.5-meter drop test

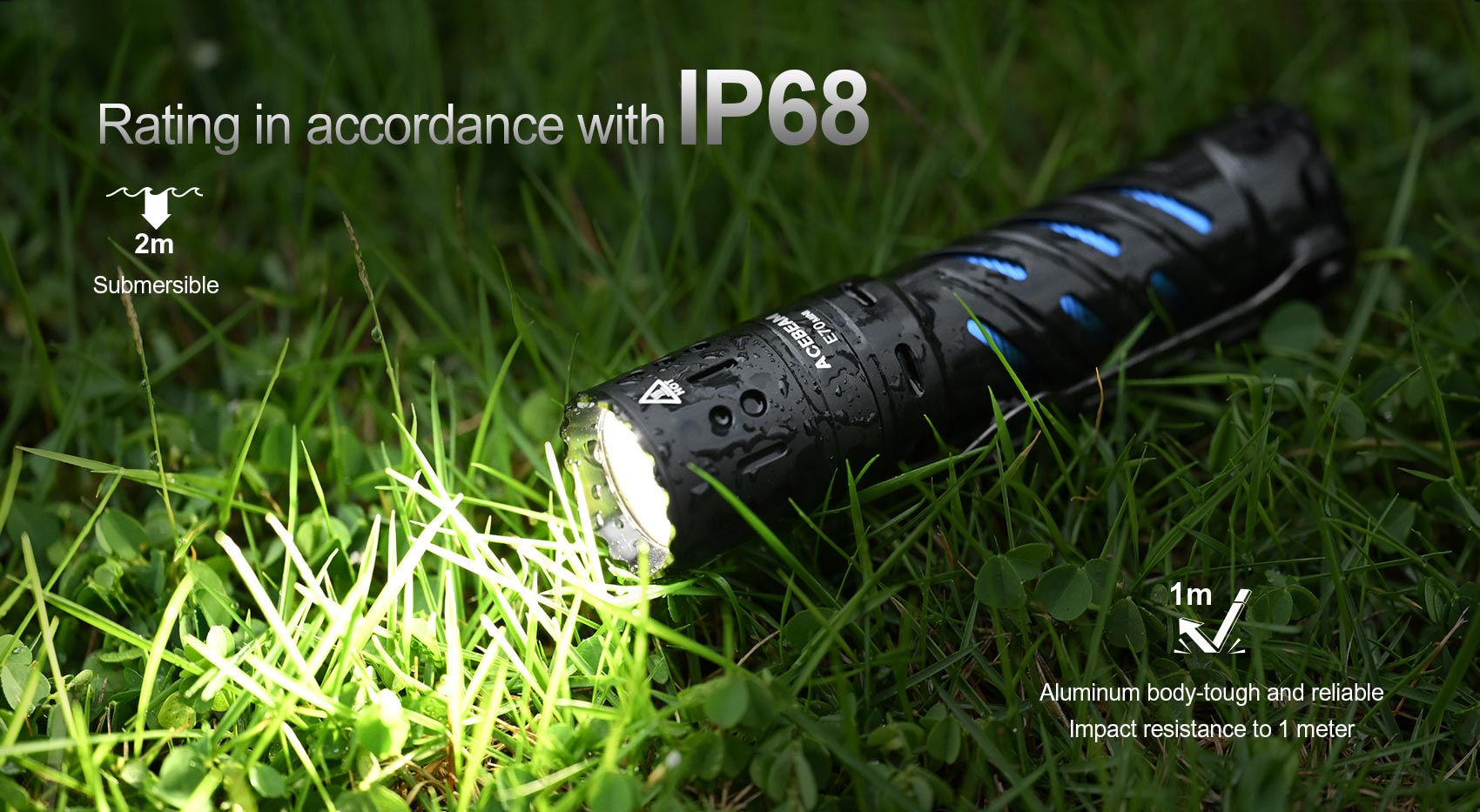

IP68, fully submersible to 6.5 feet for up to 30 minutes

BATTERIES

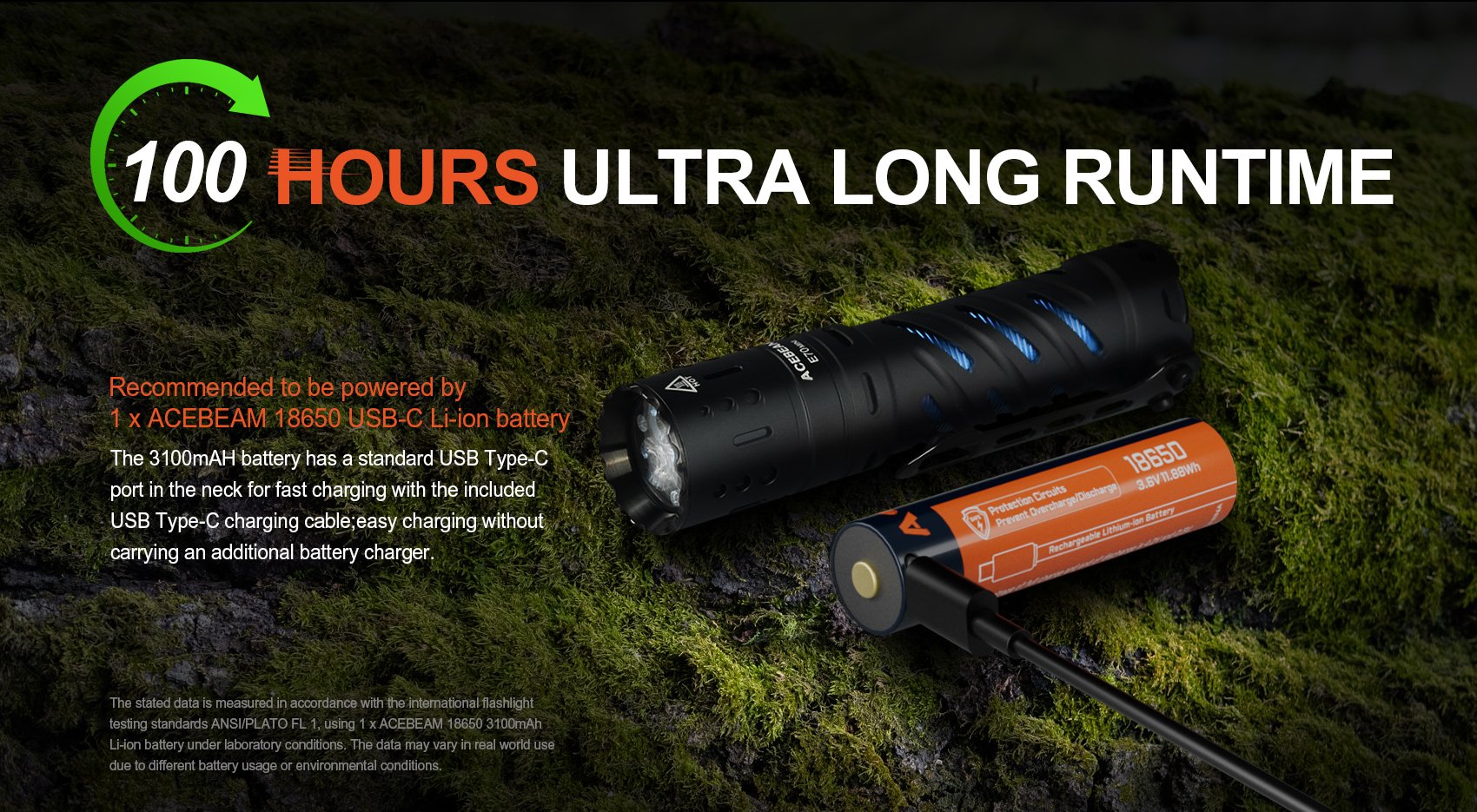

Included: 1 x ACEBEAM 18650 USB-C rechargeable battery

SIZE

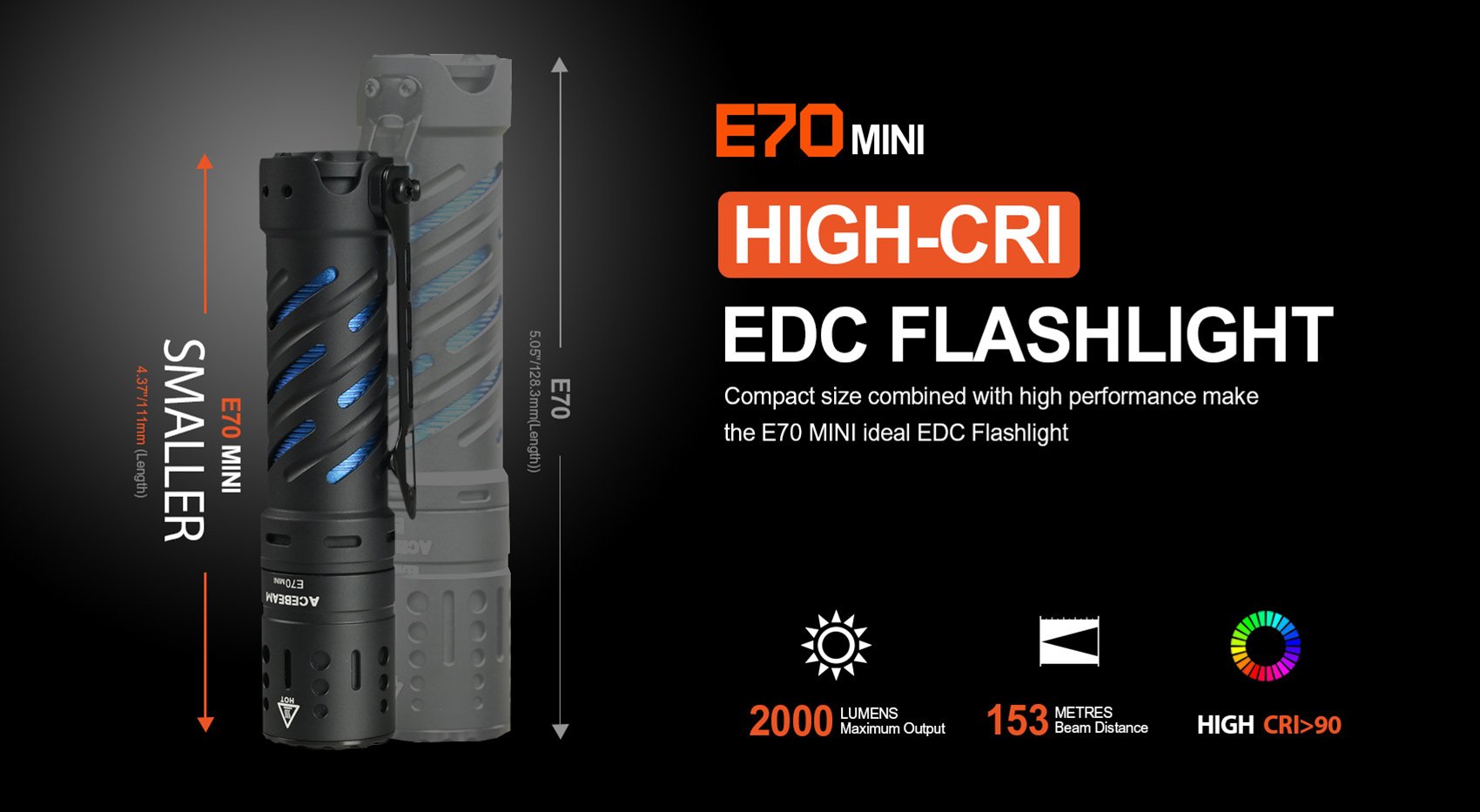

Length: 4.37''/111mm
Head Dia.: 1.02''/26mm
Body Dia.: 0.92''/23.4mm
Weight: 72g /2.53oz (w/o battery)
Weight: 120g/4.23oz (Including battery)

Are there any tips for daily use?
A: Tips:
• Do not allow kids to play with it.
• Do not shine the light directly into human eyes.
• Do not cover the light head when the flashlight is on, or place the flashlight head on the ground.
• Do not modify/disassemble the light, otherwise, it may invalidate the warranty.
• Do not use the turbo mode continuously when the environmental temperature is high.
• Please keep the front lens clean and for more information, please refer user manual.

What kind of LED is used in E70 MINI? Does ACEBEAM offer LED replacement service?

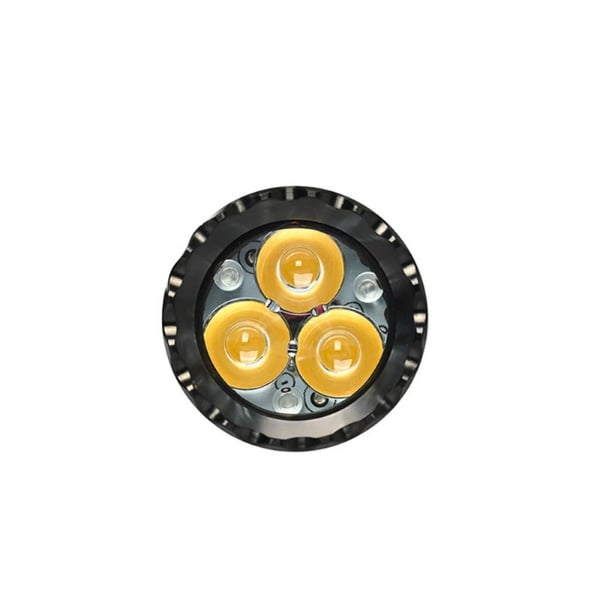

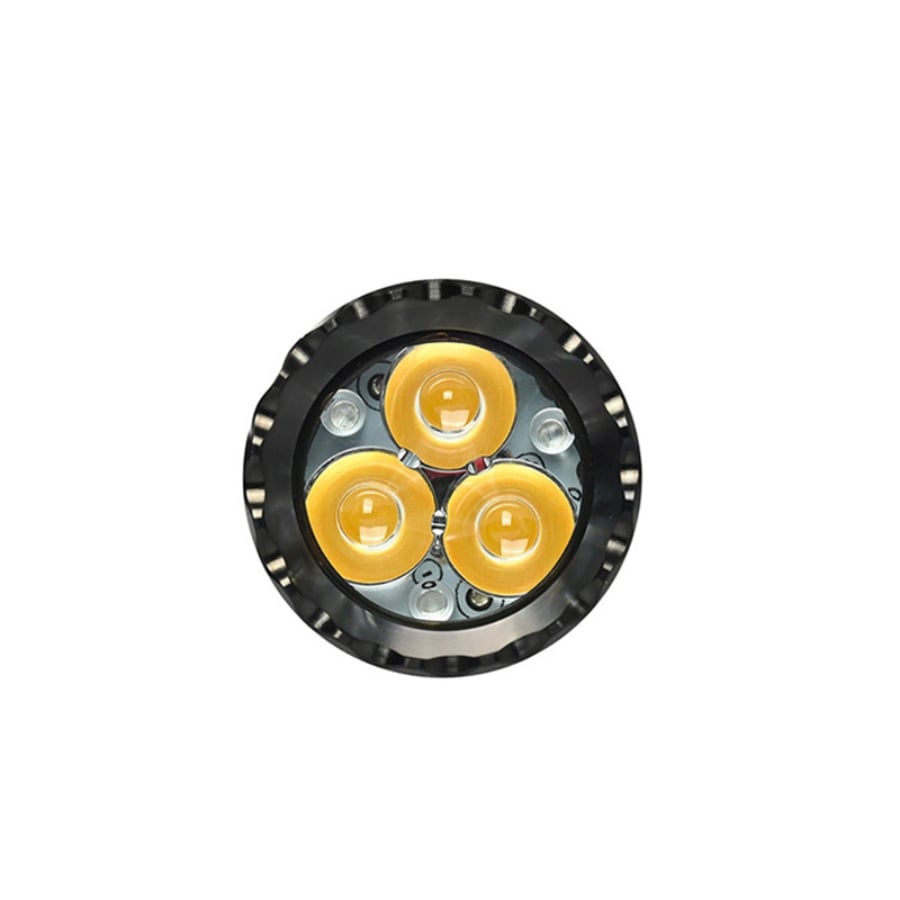

A: It utilizes three Nichia 519A LEDs.

ACEBEAM does not offer LED replacement services currently, and please do not replace the LEDs privately, as doing so might affect product performance and cause damage to the product.

What sort of battery is included in E70 MINI?
A: One ACEBEAM 18650 USB-C Li-ion rechargeable battery.

How to get started?

A: Before first use, please remove the insulating film.

How to install battery?

How to operate?

- ON/OFF: Double-click to turn ON, Single click to turn OFF
- Output selection: with the flashlight is ON, press and hold the switch to cycle through Low-Med1-Med2-High, and release the switch to select the mode.
- Turbo: double-click, and double-click again to switch between Turbo and the memorized mode.
- Strobe: Triple-click
- Ultra-Low: when the flashlight is OFF, long press the switch for about 0.5s
- Lock: when the flashlight is OFF, press and hold the switch for 5s.
- Unlock: when the flashlight is locked, press and hold the switch for 5s.

Does it have Low-voltage warning?
A: Yes, when the battery power < 20%, the light will automatically lower its lighting level. When step down to Moonlight and the battery voltage < 2.7V, it will turn OFF.

What should I do if it needs repair?
A: Please refer below:
• 15-day replacement: ACEBEAM will replace any quality defective lights within 15 days of purchase.
• 5-year free repair: ACEBEAM will repair an LED light free of charge within 5 years (LEP model, battery, battery pack, charger, remote switch, and other accessories: 1 year) of purchase if problems develop with normal use.
• Limited lifetime warranty, if repair is required after 5 years from the date of purchase, ACEBEAM will charge for parts.
Please keep your warranty card in contacting the authorized distributors for after-sale maintenance, and the customer information is required to fill out if repair is needed.

Existing reviews

Beautiful, functional performance

I like triples and quads with broad wide beams, and this E70 Mini has become my recent favorite. The awesome & new 519A @ 5000K R9080 emitter behind TIR provides a flawless wide beam (around 30 deg to my eyes), great neutral tint for outdoors, no tint shift, and beautiful color rendition. Some may prefer warmer CCTs, especially for indoors, but I think 5000K is perfect for outdoors.

The brightness levels are all perfectly selected, I can dial it in for good balance of runtime & brightness no matter what the situation. Since my hikes are varied in length between 1-6 hours, I really like that I can select a level that gives me runtime suitable to hike length. 170 lm for 7 hours is more than adequate for most things. I think the lowest mode is perfect too, which I will use during full moon low-light hike.

I think this light should be 5 stars, but I am giving it 4.5 for only one reason: the springs are too short for normal flat top batteries to work reliably. You will need at least button top, and the selection of flat tops, depending on where you live, is always smaller than flat tops.

I am hoping Acebeam can release a side-clicky version of this light, and an E70 (full size) quad 519 5000K as well. Additional improvements would be allow the blue collar for removal and cleaning, as dirt will collect in there. A great companion would be a H17 with the same emitter.

In short, this light will replace a large swath of my collection. I've already ordered a few, I can not be without this one.

Was this review helpful? (2/0)

Lovely beam pattern and neutral tint

The Acebeam E70 Mini produces one of the most neutral beams that I have seen. It is a lovely tactical EDC torch!

The E70 Mini looks like a tactical torch with a matte black finish but it is comfortable, there are no sharp edges, and the beam that it produces is easy on the eyes.

It would be nice if unprotected flat top 18650 cells fit. The tube is a bit too long. And double click to turn on will take some getting used to.

I am impressed again with the excellent build quality from Acebeam.
