H16 Headlamp Orange (519A-V1 LED)

DETAILS

Three color options: Black, Grey, and Orange
H16 Black: 1 x 519A Neutral White, 5000K, High CRI 90 Max Output 650 Lumens, 100° Wide Range Flood Beam;
H16 Gray: 1 x Cool White 6500K, Max Output 1000 Lumens, 110° Wide Range Flood Beam;

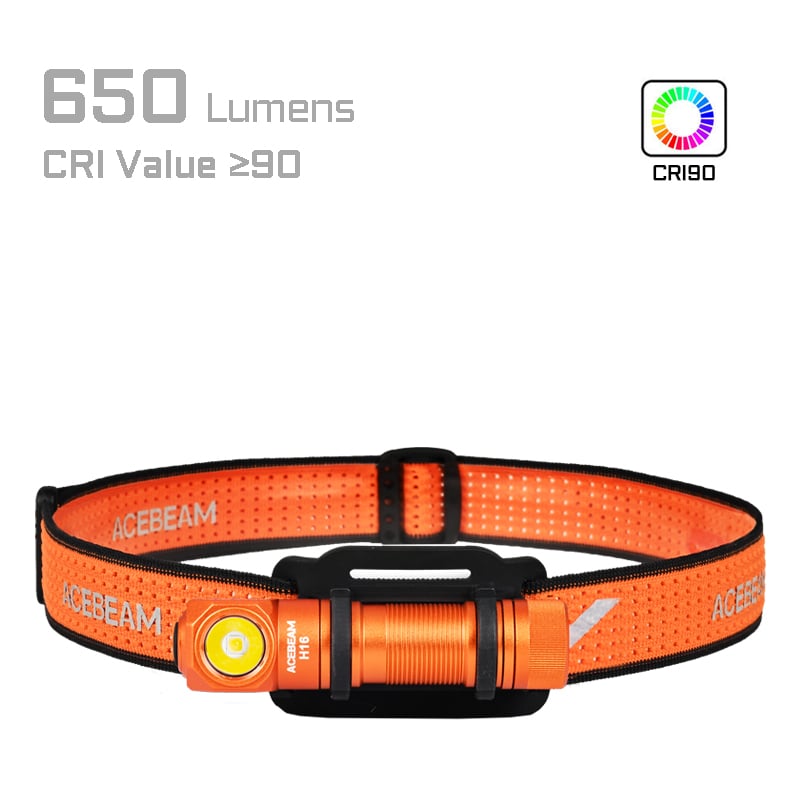

H16 Orange: 1 x 519A-V1 LED, Neutral White, 5000K, High CRI 90 Max Output 650 Lumens, 100° Wide Range Flood Beam;
One 14500/Type-C rechargeable Li-ion battery included
Compatible with one AA Alkaline or NiMH rechargeable battery, wide range of Voltage design: 0.9V~4.2V
Durable tempered glass lens with AR film plating for scratch resistance, light transmittance reaches up to 99%
The high-efficiency constant current circuit board provides a maximum runtime of 58 hours
Detachable from headband - Can be used as a flashlight
Two-way body clip capability for varying conditions
Magnetic tail hands-free fixation
High strength and impact-resistant HAIII hard-anodized anti-abrasive and corrosion-resistant finish
All metal body (AL6061-T6 high-quality aluminum alloy) can withstand 1.5-meter drop test
IP68 Dust-proof and Waterproof Rating: Fully submersible to 6.5 feet for up to 30 minutes

BATTERIES

Included: 1 x ACEBEAM 14500 USB-C rechargeable battery
Compatible: one AA Alkaline or NiMH rechargeable battery

SIZE

Length: 81.6mm
Body Width: 17mm
Body Height: 19mm
Weight: 71g / 2.5 oz (Including battery and Headband with holder)
Weight: 53.5g / 1.9oz（Including battery)

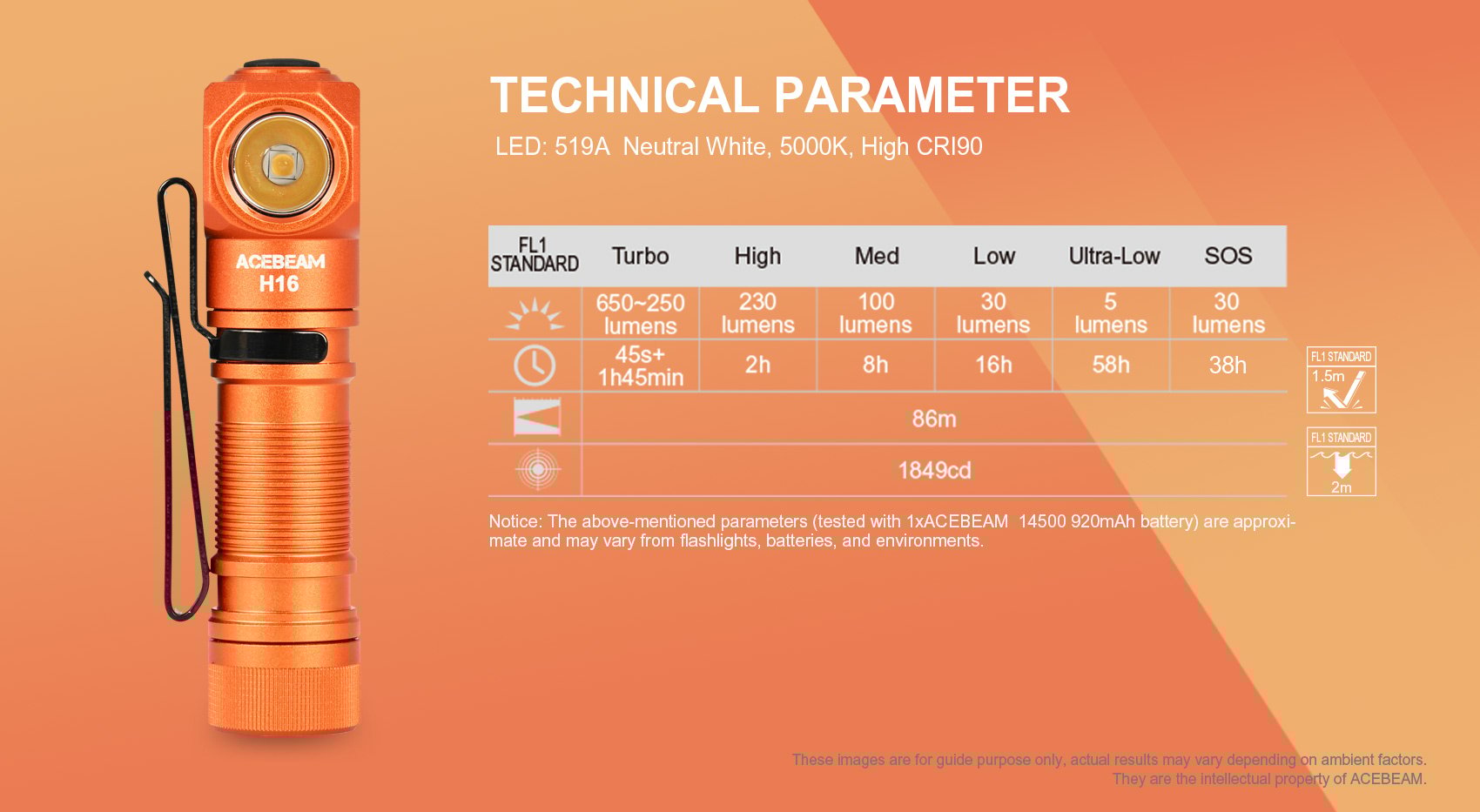

OUTPUTS

1 x Nichia 519A LED Neutral White 5000K, CRI 90
Ultra-Low: 5 lumens; 1849cd; 86 meters; 58 hours
Low: 30 lumens; 1849cd; 86 meters; 16 hours
Mid: 100 lumens; 1849cd; 86 meters; 8 hours
High: 230 lumens; 1849cd; 86 meters; 2 hours
Turbo: 650~ 250 lumens; 1849cd; 86 meters; 45 seconds + 1 hours 45 minutes
SOS: 30 lumens; 1849cd; 86 meters; 38 hours
Max. output: 650 lumens
Max. beam distance: 86 meters
Max. runtime: 58 hours on 5 lumens
Peak beam intensity: 1849cd

What is included in the package?
A:
1 x H16;
1 x 14500 USB-C rechargeable battery;
1 x charging cable;
1 x pocket clip
2 x O-rings
1 x user manual

What kind of LEDs are used in H16?

A: Utilizing a Nichia 519A-V1 High CRI90 LED.

What is the color temperature of H16?

A: 5000K.

What makes H16 different from other ACEBEAM headlamps?

A: Light in weight, it weighs 53.5g / 1.9oz (including battery) , nearly the same weight as an egg.

What kind of battery can be used in H16?

A: 14500 Li-ion battery, compatible with standard 1 x AA Alkaline/ NiMH battery.

How to install a battery?
A: If the battery needs to be replaced, make sure that the positive pole (+) end of the battery is towards the flashlight head when you put it in.

How do I start using it?

A: remove insulating film.

How to operate?
- ON: Double click
- OFF: Single click
- Ultra-Low: Long press the switch for 0.5s
- Turbo: when the light is ON, quickly double-click the switch, and double-click again to switch between Turbo and the memorized mode.
- SOS: Triple-click
- Output selection: with the lamp switched on, press and hold the switch to cycle through Low-Med-High, and release the switch to select the mode.

The lamp will memorize the last selected brightness. When turned on again the previously used brightness level will be recalled. (Ultra-Low and Turbo will not be memorized)

What if it shows abnormal flashes or failure to turn ON? What should I do if there is abnormal noise?
A:

What should I do if H16 needs repair?
A: Please refer below:
• 15-day replacement: ACEBEAM will replace any quality defective lights within 15 days of purchase.
• 5-year free repair: ACEBEAM will repair an LED light free of charge within 5 years (LEP model, battery, battery pack, charger, remote switch, and other accessories: 1 year) of purchase if problems develop with normal use.
• Limited lifetime warranty, if repair is required after 5 years from the date of purchase, ACEBEAM will charge for parts.
Please keep your warranty card in contacting the authorized distributors for after-sale maintenance, and the customer information is required to fill out if repair is needed.

Existing reviews

Love this little guy!

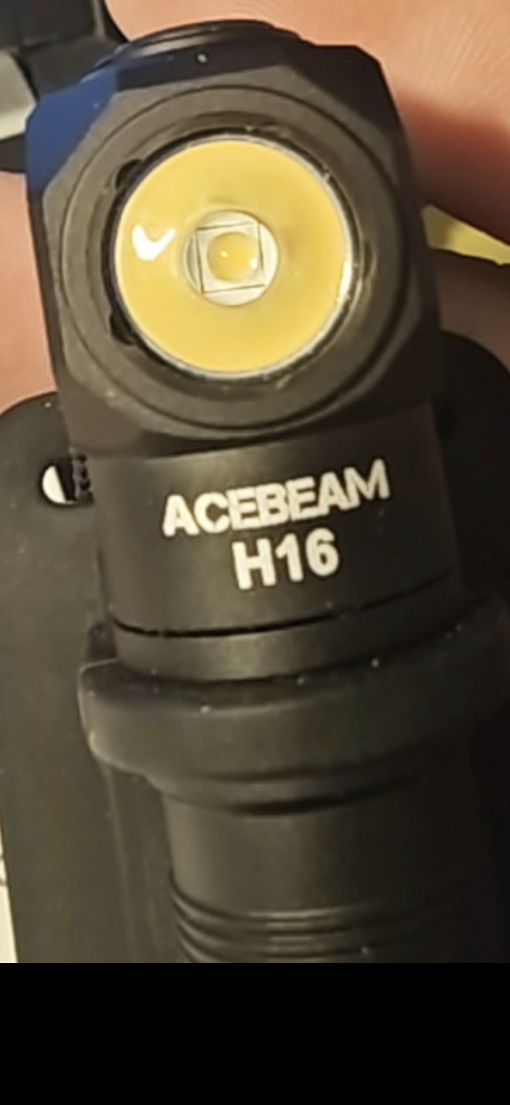

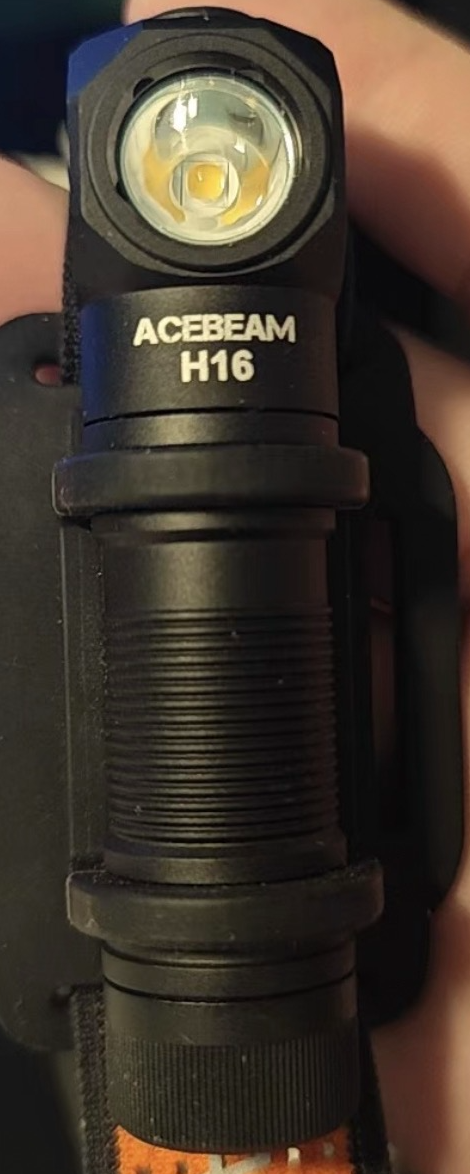

Super light weight and super cute, yet still producing an impressive output. 650lm on turbo with the high CRI option (orange) and a whopping 1,000 lumens with the cooler kelvin option (gray). Use turbo for short bursts though. The mode you will use most is "high" with output in the 300lm range and an impressive run time of two hours. This is a very useful amount of light -especially for doing close-up tasks. The high CRI lamp is very easy on your eyes and an excellent option for reading.

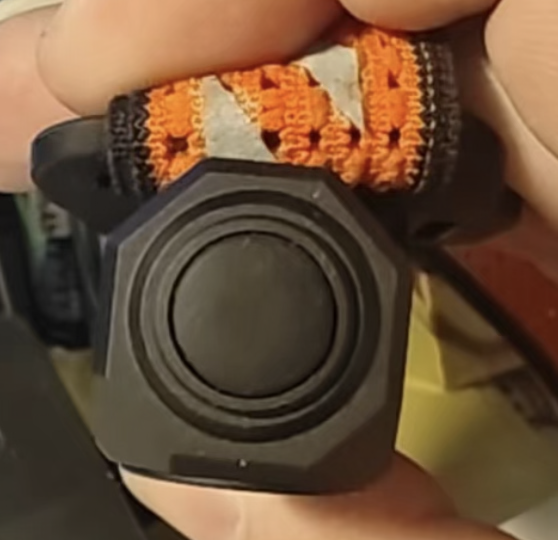

Talk about versatility: clip mount, head mount or magnet mount with a tiny size that is not much bigger than a AA battery. Using the excellent little workhorse 14500 battery and also compatible with a standard or NiMh AA, I believe this is the most versatile light that Acebeam offers. I'm sure Macgyver wished he had this little companion in his pocket.
