DETAILS

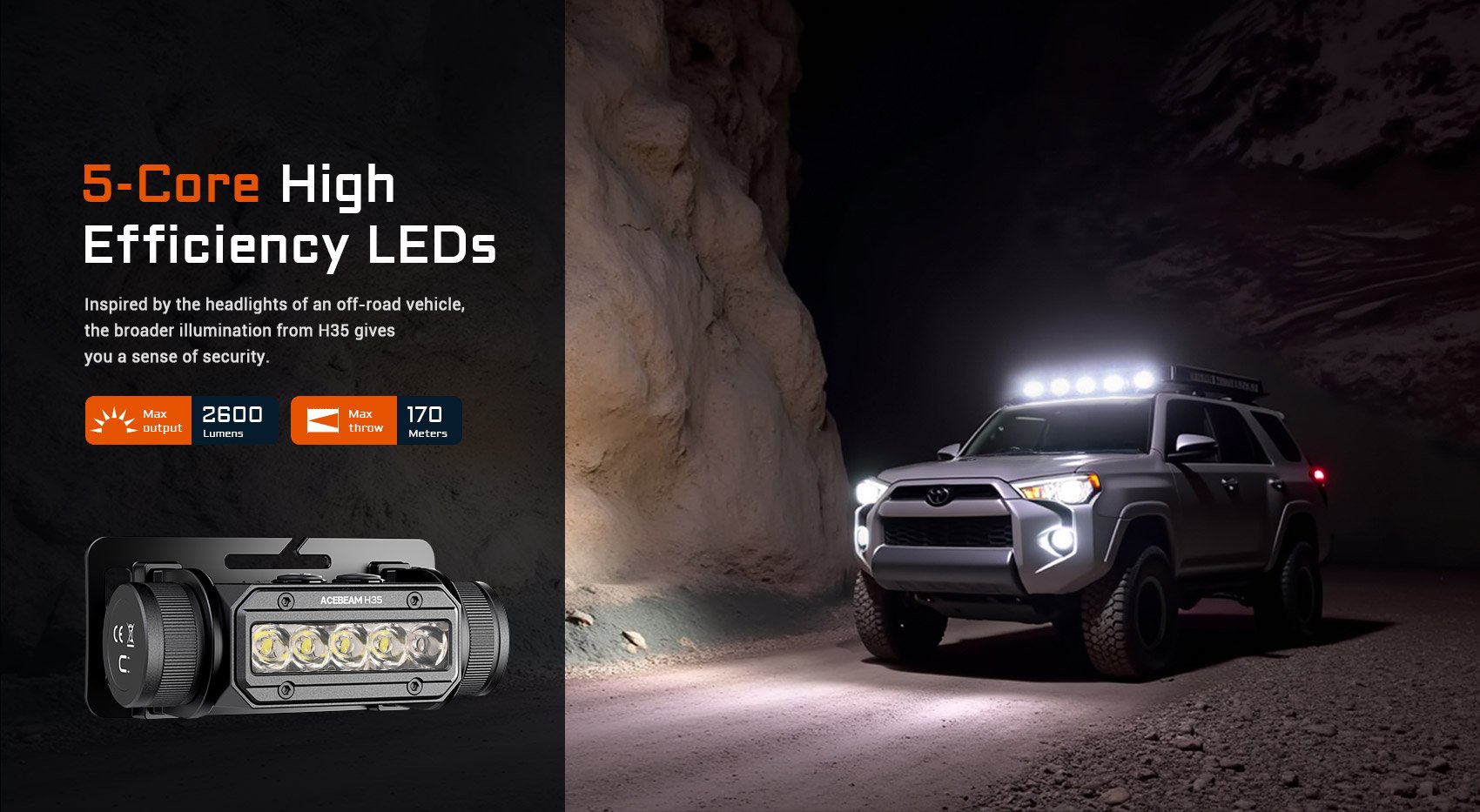

• A linear array of 5 high-efficiency LEDs that deliver a broader and brighter illumination

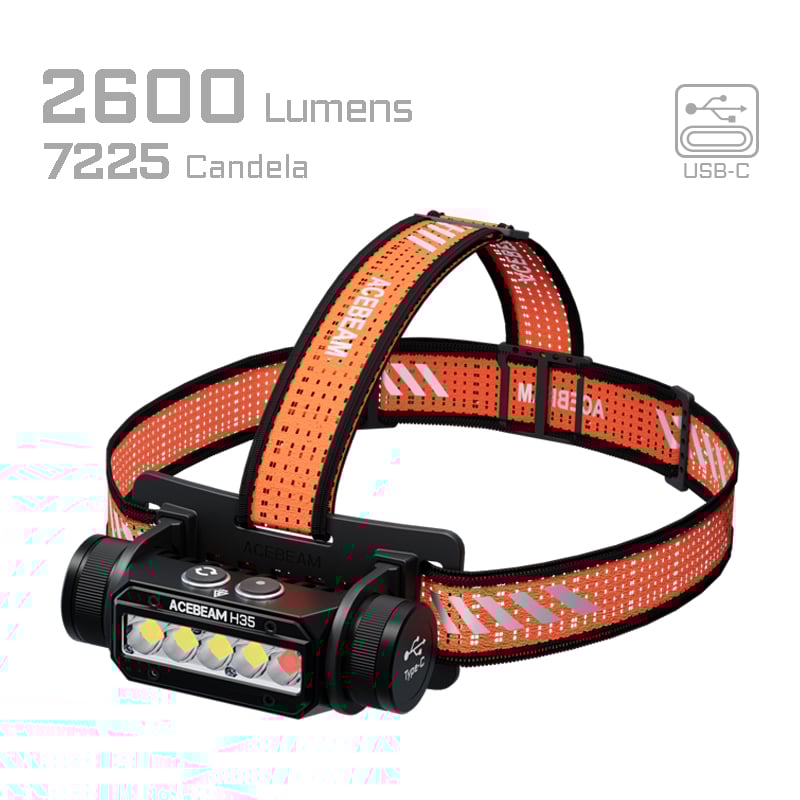

• Max 2600 lumens with an extreme beam distance of 170 meters / 185 yards
• 46mm light-emitting surface reduces shadows and uneven brightness significantly
• >100° beam angle ensures that you can see things around you clearly
• Intelligent temperature control, stable output
• White and red dual light sources, built for any adventure
  - White light has 5-level brightness, offering clear illumination with simple Mode Switching.
  - Red light delivers max 200 lumens and throws up to 63 meters, ideal for hunting and preserving night vision
• Convenient USB-C charging port, 5V 2A charging, about 3.5 hours to get fully charged

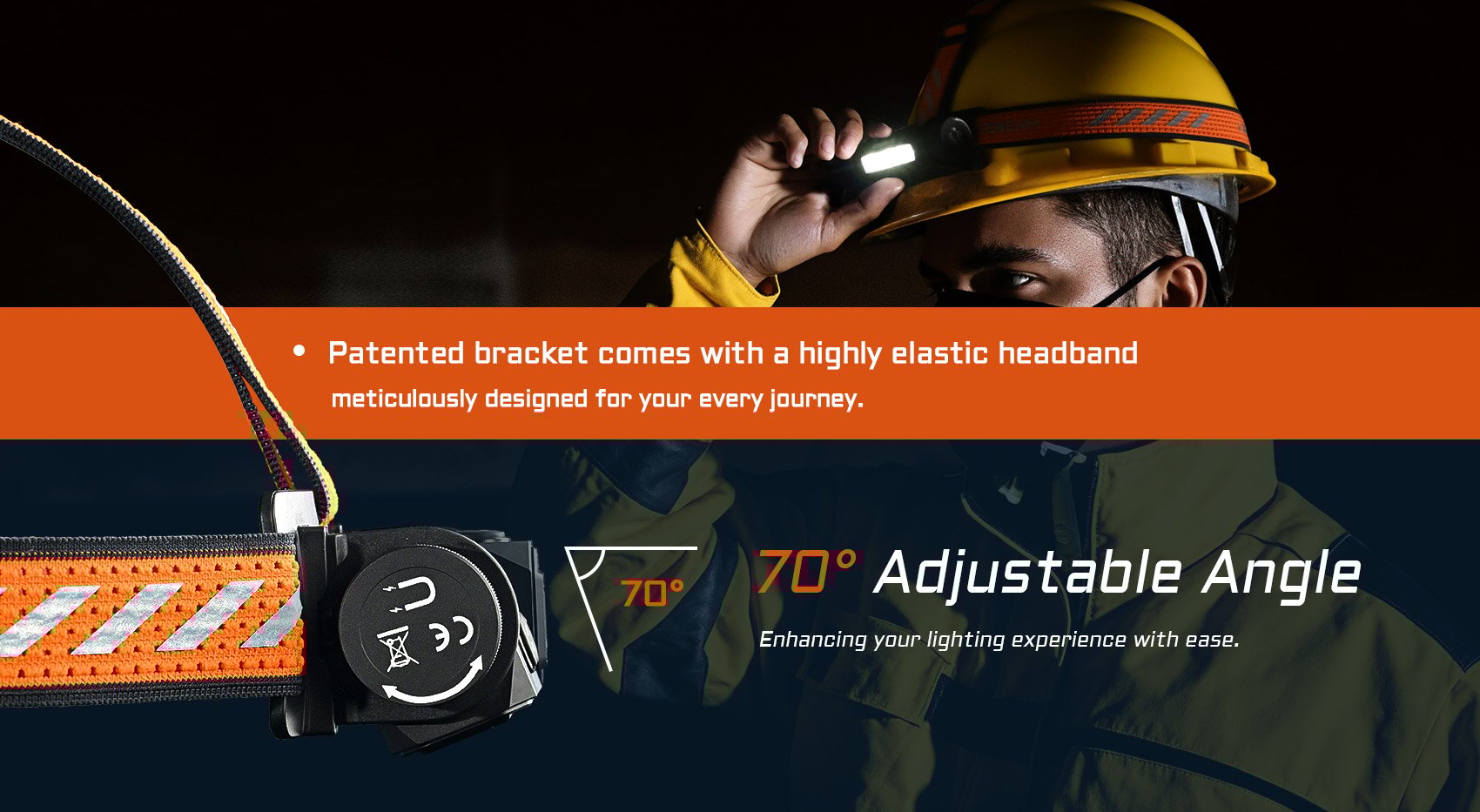

• Patented bracket, 70° Stepless pitch angle enhances your lighting experience with seamless adjustability
• Highly elastic headband, meticulously designed to care for your every journey

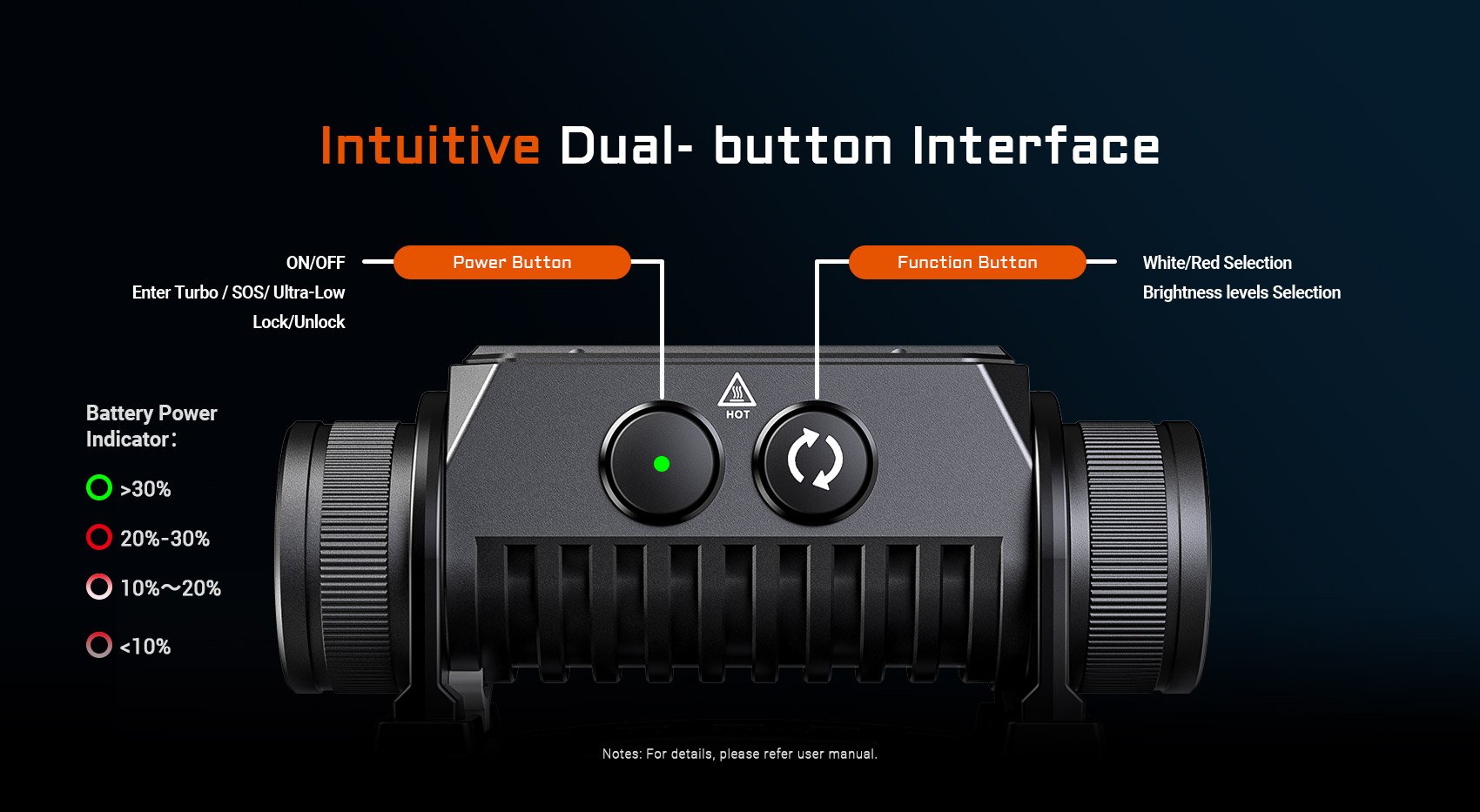

• Intuitive Dual- button Interface offers quick and convenient operation
• Lock function with Power button to prevent accidental activation

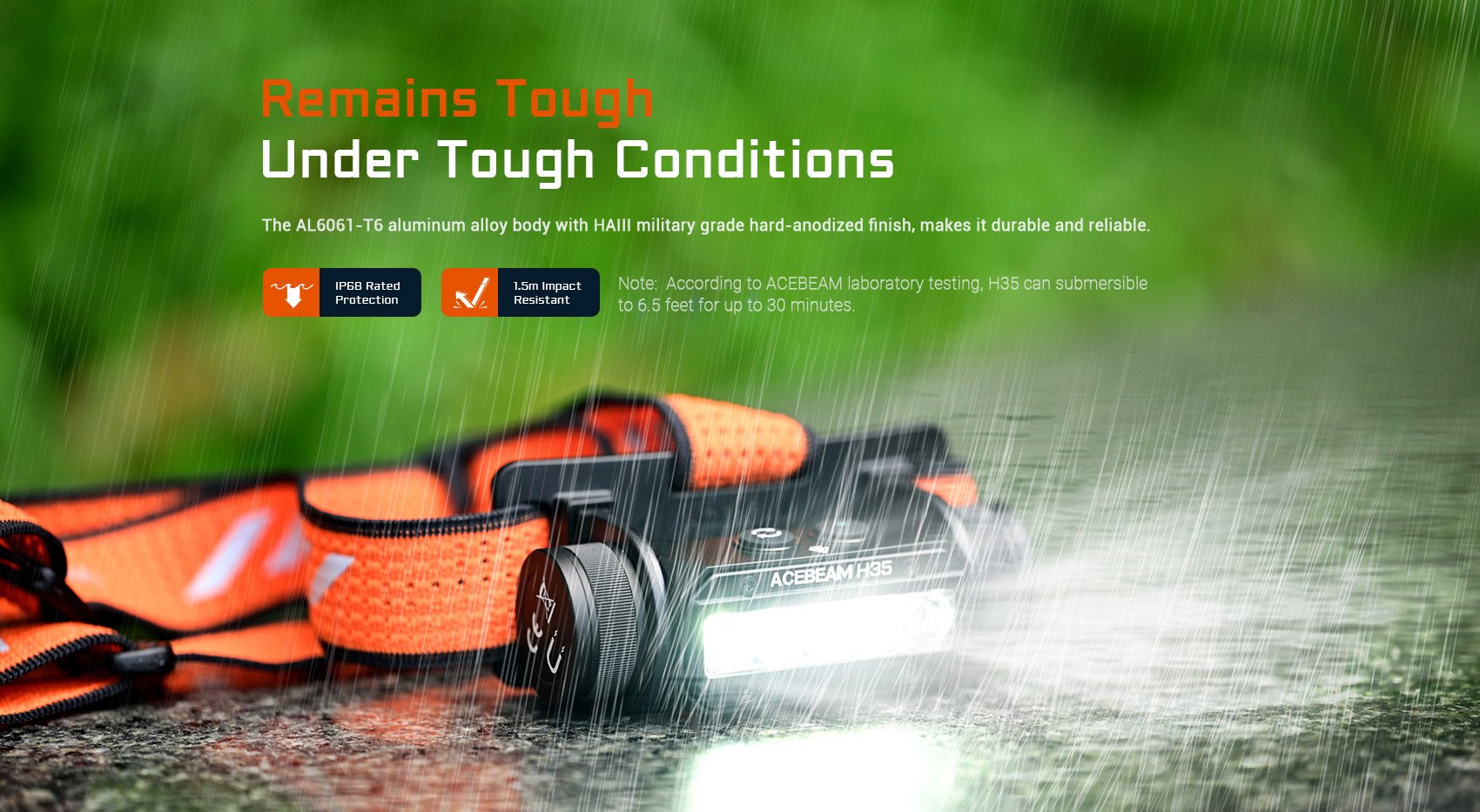

• All metal (AL6061-T6 high-quality aluminum alloy) unibody design provides quick heat dissipation and can withstand 1.5-meter drop test
• IP68 Dust-proof and Waterproof Rating: Fully submersible to 2 meters / 6.5 feet
• Ideal for hunting, camping, fishing, climbing, hiking, emergency lighting, exploration and caving

BATTERIES

• Including:  1 x 3800mAh 18650 lithium-ion battery

SIZE

• Length: 87mm/3.42"
• Width: 40mm/1.57"
• Height:  44.3mm/1.74"
• Weight: 163g/ 5.7oz (Including battery, bracket and headband)

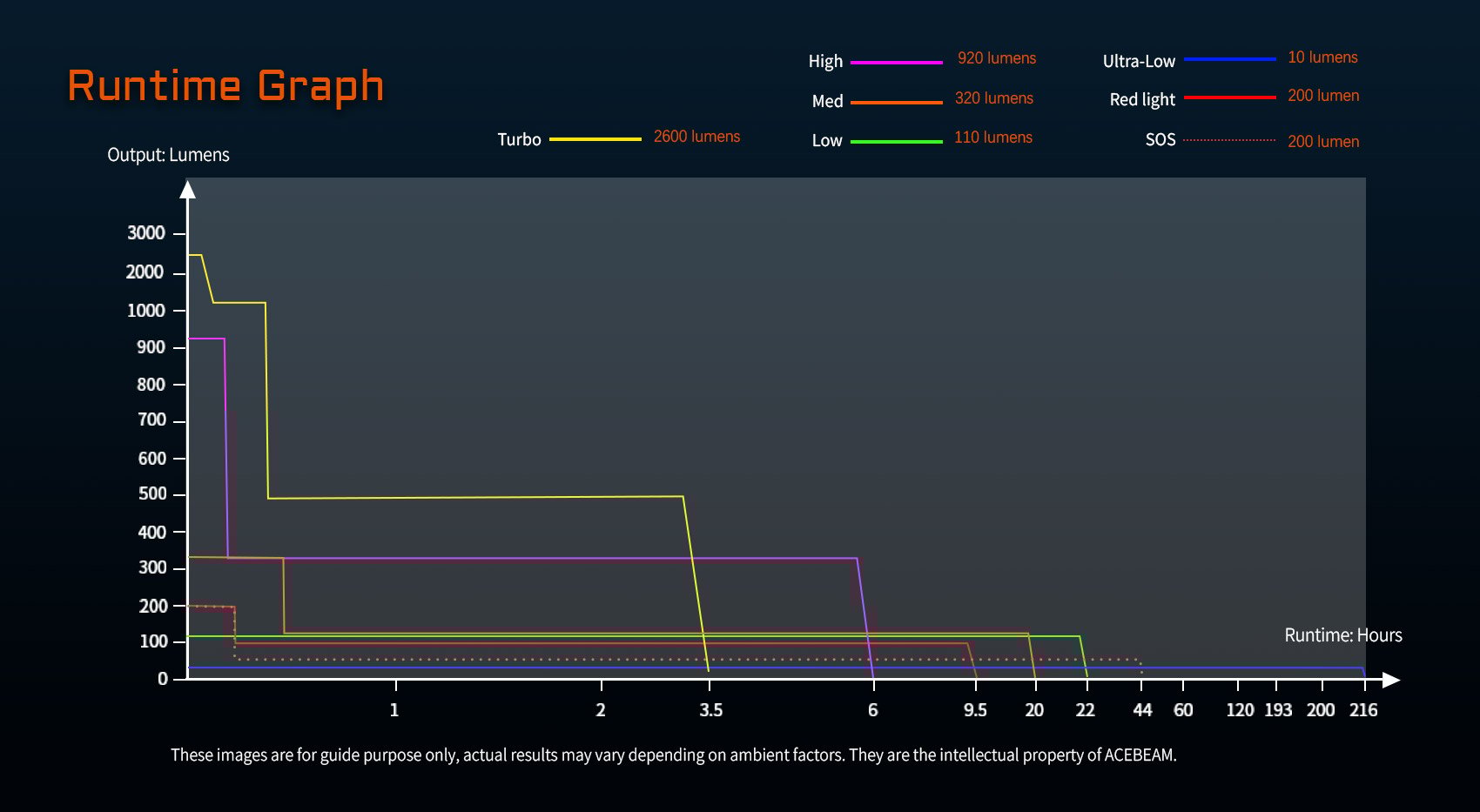

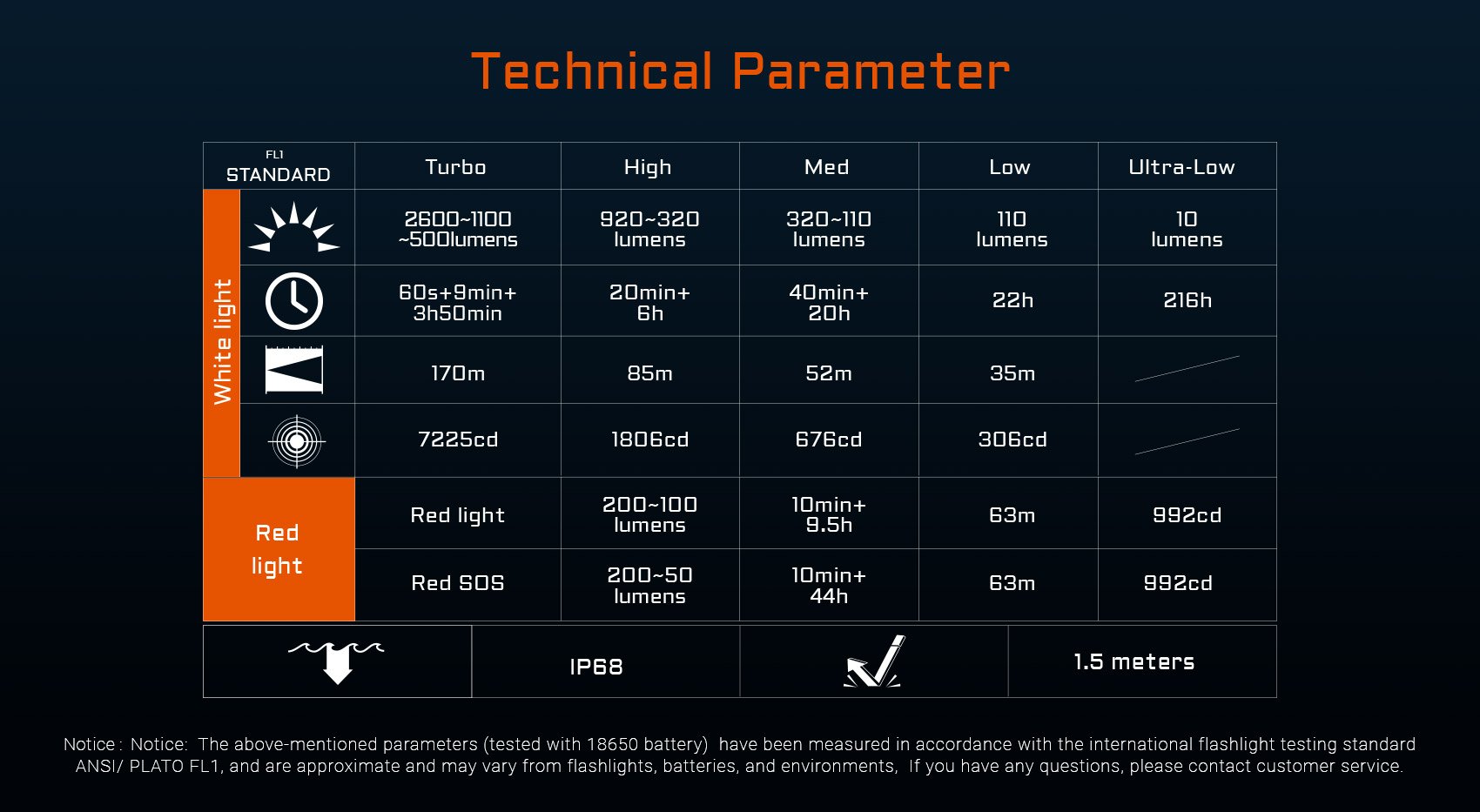

OUTPUTS

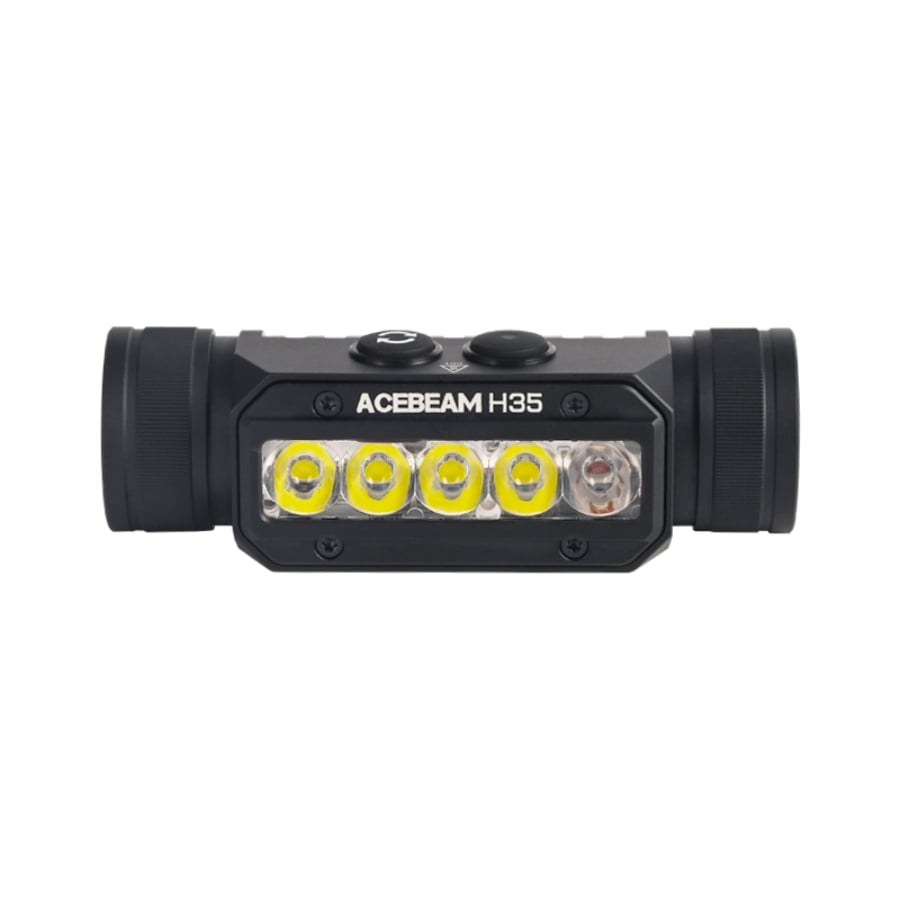

 •  4 x White light LEDs

Ultra Low: 10 lumens; 216 hours
Low: 110 lumens; 22H
Med: 320 ~ 110 lumens; 40min ~ 20H
High: 920 ~ 320 lumens; 20min ~ 6H
Turbo: 2600 ~ 1100 ~ 500 lumens; 7225cd; 170 meters; 60 seconds ~ 9min ~ 3H50min

Max. output: 2600 lumens
Max. beam distance: 170 meters/185 yards
Max. runtime: 216 hours on 10lm
Peak beam intensity: 7225cd

 •  1 x Red CREE LED

Lighting level: 200 ~ 100 lumens;  992.25cd; 63 meters; 10min ~ 9.5H
SOS: 200 ~ 50 lumens;  992.25cd; 63 meters; 10min ~ 44H

Max. output: 200 lumens
Max. beam distance: 63 meters/ 68 yards
Max. runtime: 44 hours on 50lm (SOS)
Peak beam intensity: 992.25cd

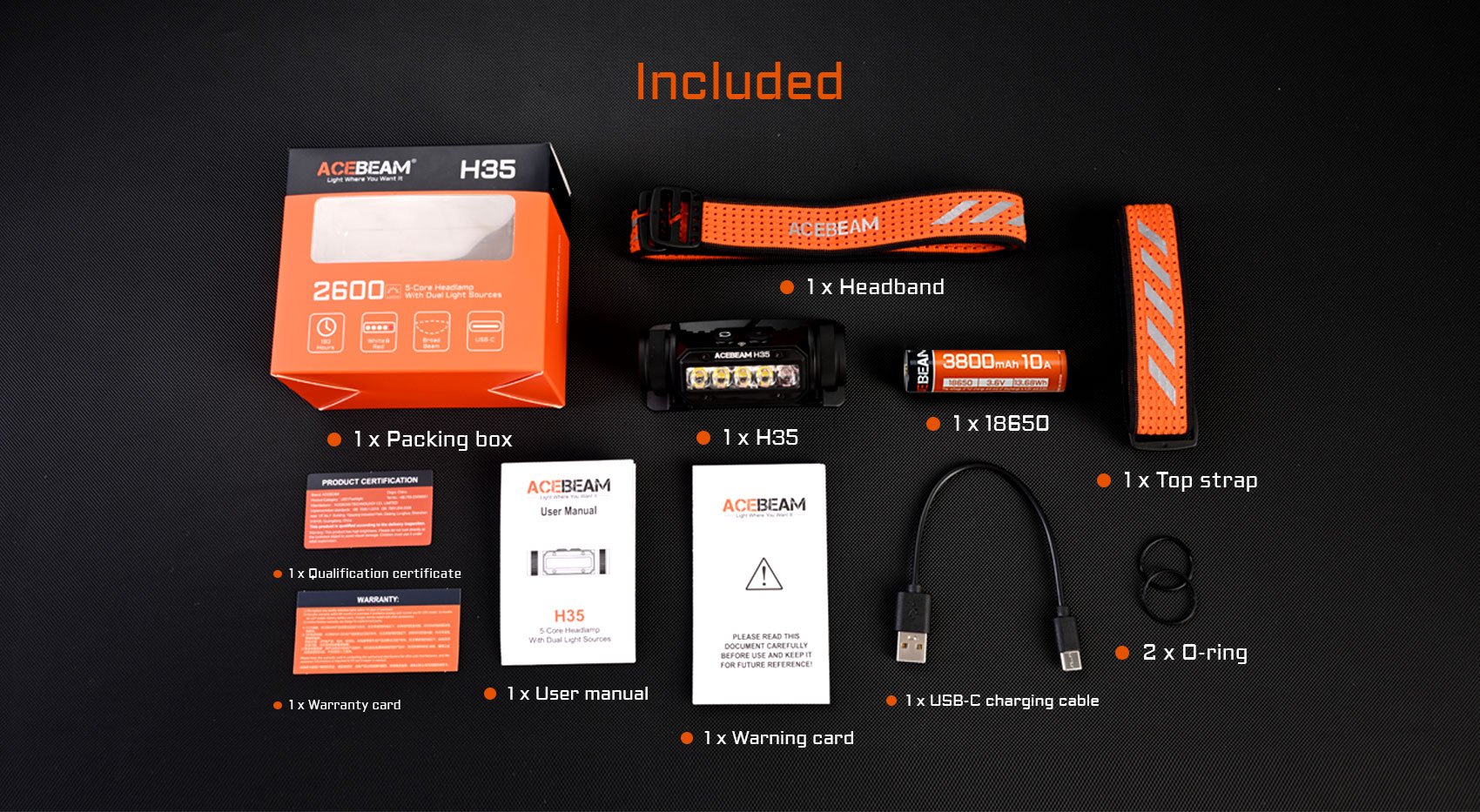

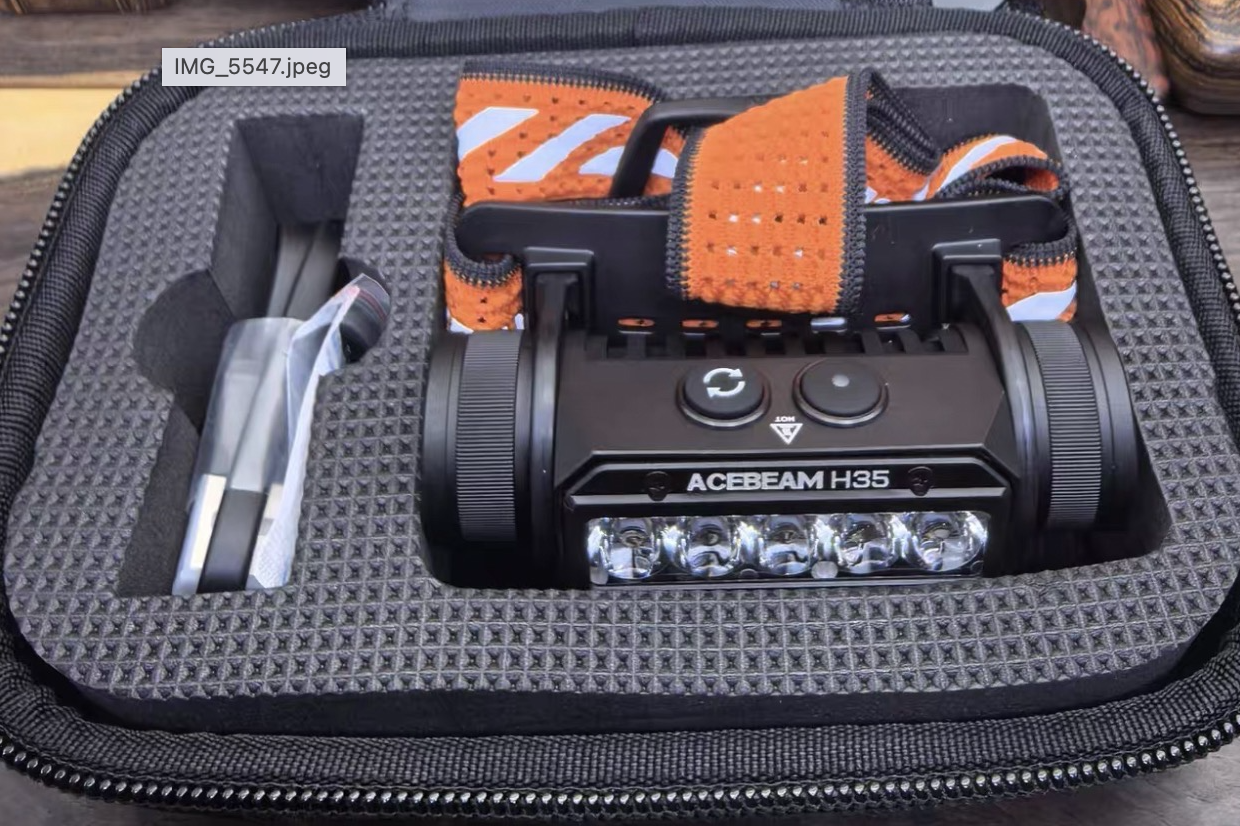

What is included in the package?
A:
1 x H35;
1 x 18650 Li-ion battery;
1 x charging cable;
1 x Headband;
1 x Top strap;
2 x O-rings
1 x user manual
1 x qualification certification;
1 x warranty card;
1 x warning card.

What kind of LEDs are used in H35?
A: Utilizes 4 LUXEON HL4X 6500K LEDs and a powerful auxiliary red LED.

What are the benefits of having a red light?
1. Preserve & improve night vision
2. Fewer bugs & Insects
3. Send out signals
4. Reduce disturbance to others

What makes H35 different from other ACEBEAM headlamps?
A: It is a 5-core industrial-grade mental headlamp with white and red dual-light sources

Where is the charging port located?
A:

What kind of battery can be used in H35?
A: 18650 Li-ion battery.

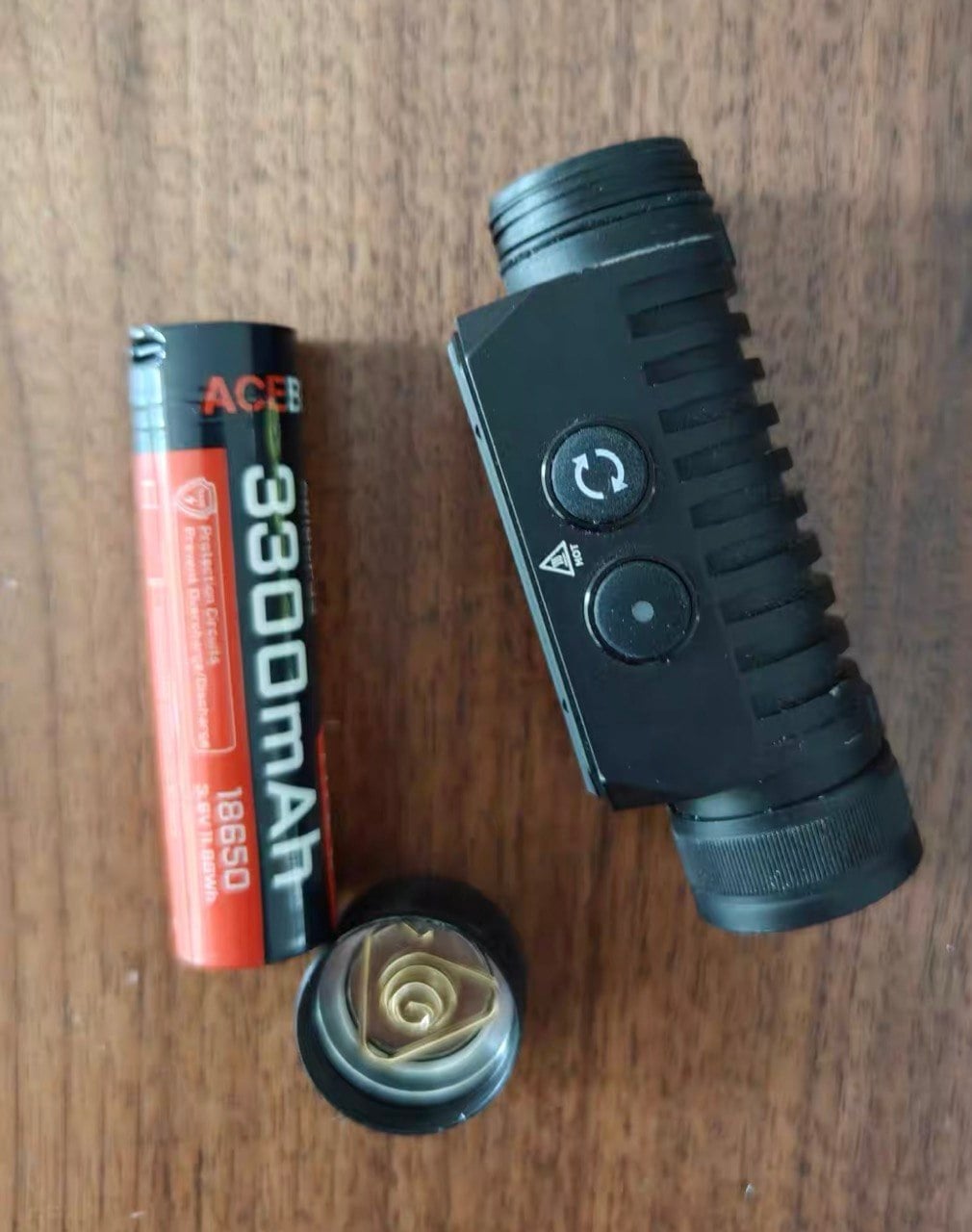

How to install a battery?
A: If the battery needs to be replaced, make sure that the positive pole (+) end of the battery is towards the flashlight head when you put it in.

How do I start using it?
A: remove the insulating film.

How to operate?

What should I do if H35 needs repair?
A: Please refer below:
 • 15-day replacement: ACEBEAM will replace any quality defective lights within 15 days of purchase.
 • 5-year free repair: ACEBEAM will repair an LED light free of charge within 5 years (LEP model, battery, battery pack, charger, remote switch, and other accessories: 1 year) of purchase if problems develop with normal use.
 • Limited lifetime warranty, if repair is required after 5 years from the date of purchase, ACEBEAM will charge for parts.
Please keep your warranty card in contacting the authorized distributors for after-sale maintenance, and the customer information is required to fill out if repair is needed.
