DETAILS
• Two LED options:
- 1 x Luminus SFT-90X LED, max output 5600 lumens, throw up to 1454 meters
- 1 x Luminus SBT-90.2 LED, max output 5500 lumens, throw up to 1280 meters

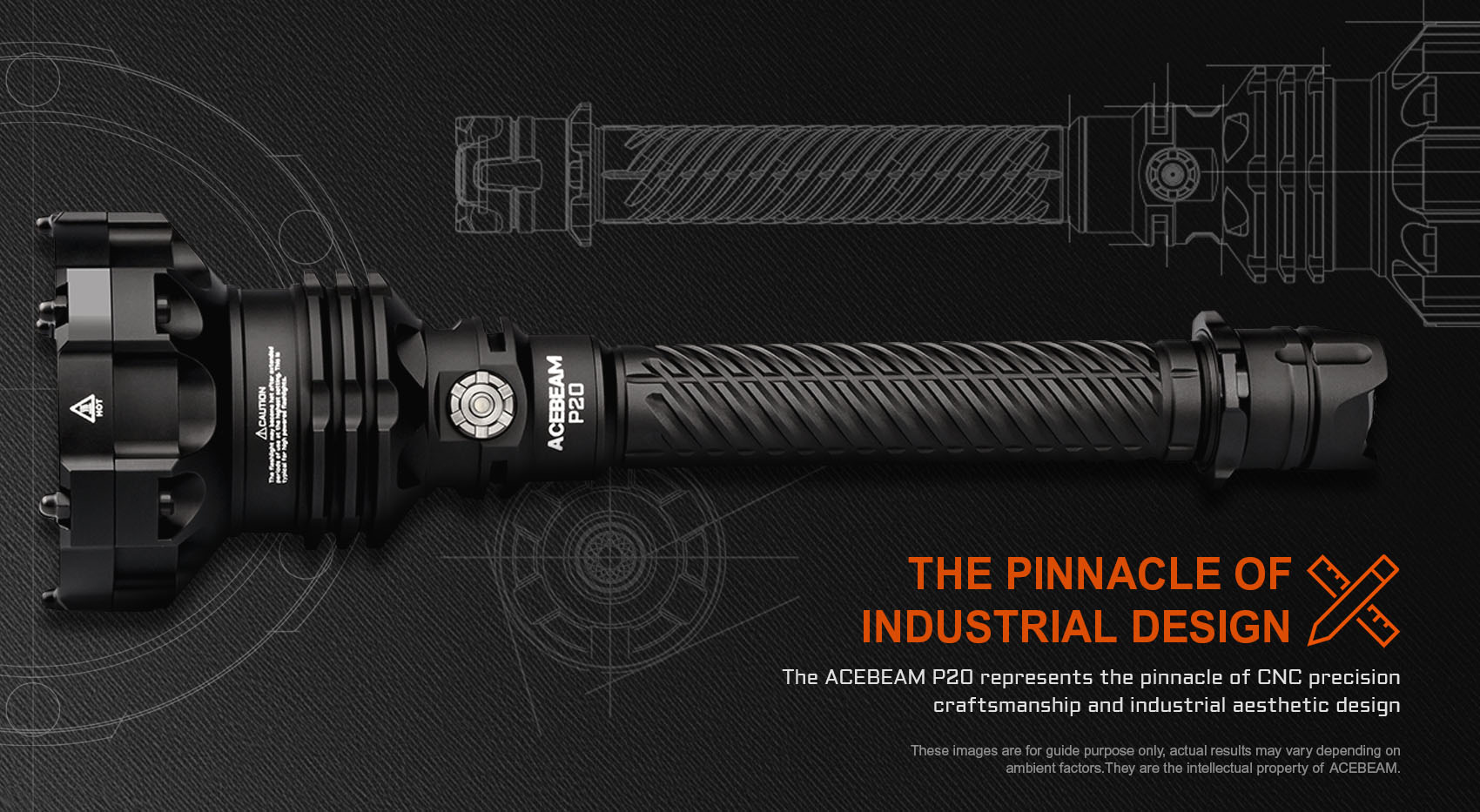

• Represents the pinnacle of CNC precision craftsmanship and industrial aesthetic design
• 6 Brightness Levels and Strobe to meet your multiple lighting needs
• Powered by a high-capacity 21700 battery pack with a built-in USB-C port for better waterproofing (lP68)
• Compatible with two 21700 lithium-ion batteries, ensuring hassle-free battery replacement outdoors

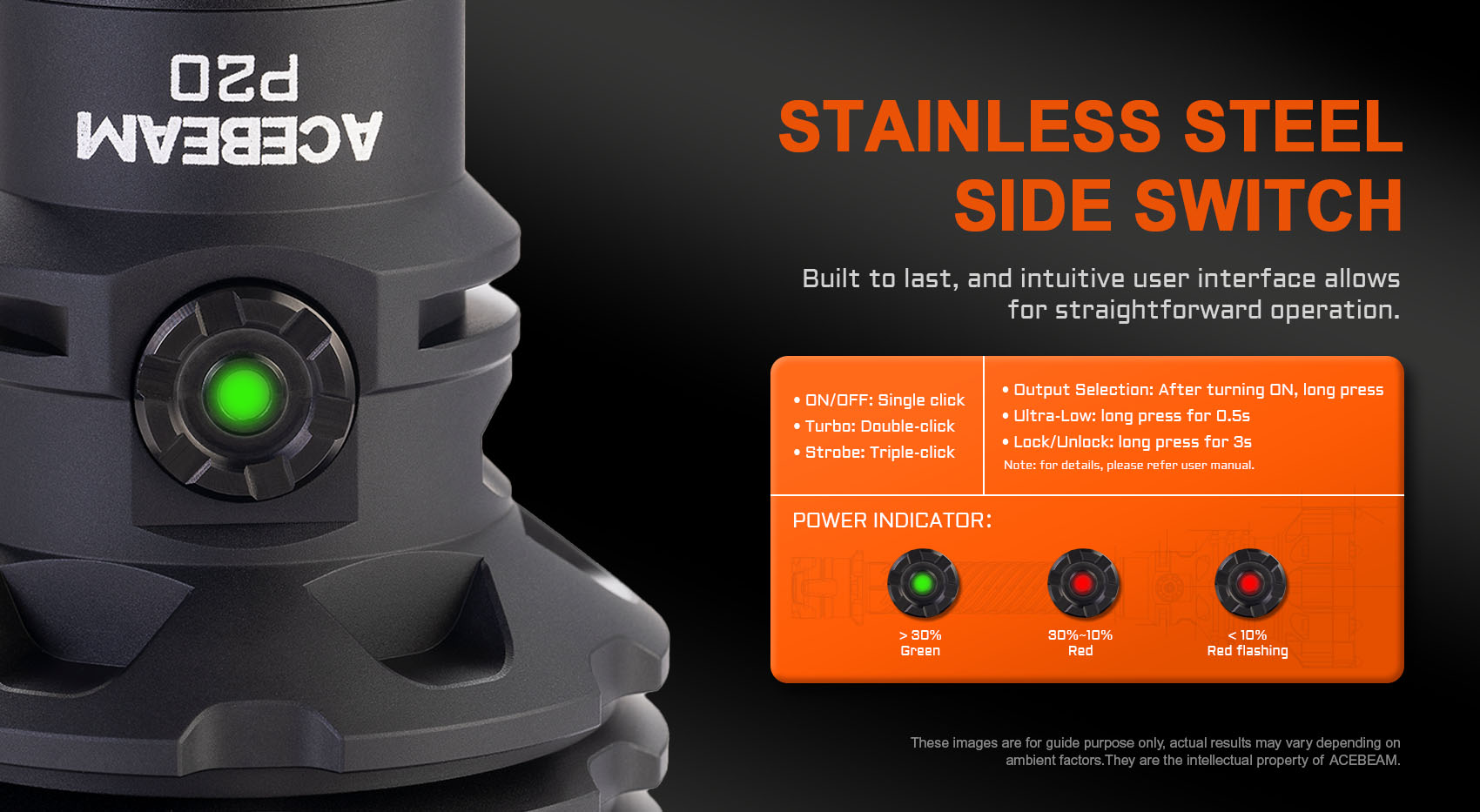

• Dual switches allow you to swiftly ON/OFF, or cycle through various modes

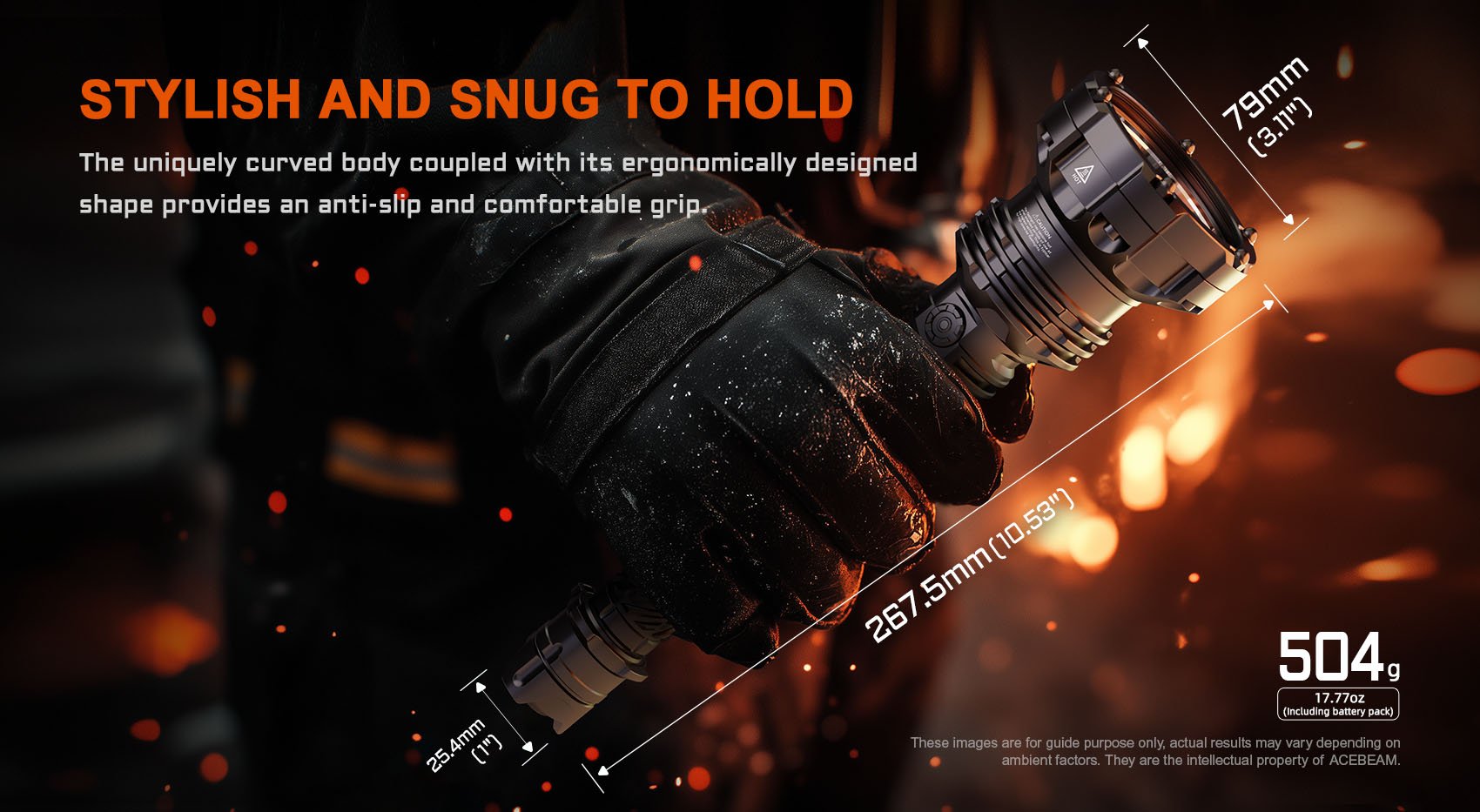

• Long and slim barrel makes it cozy in your hands

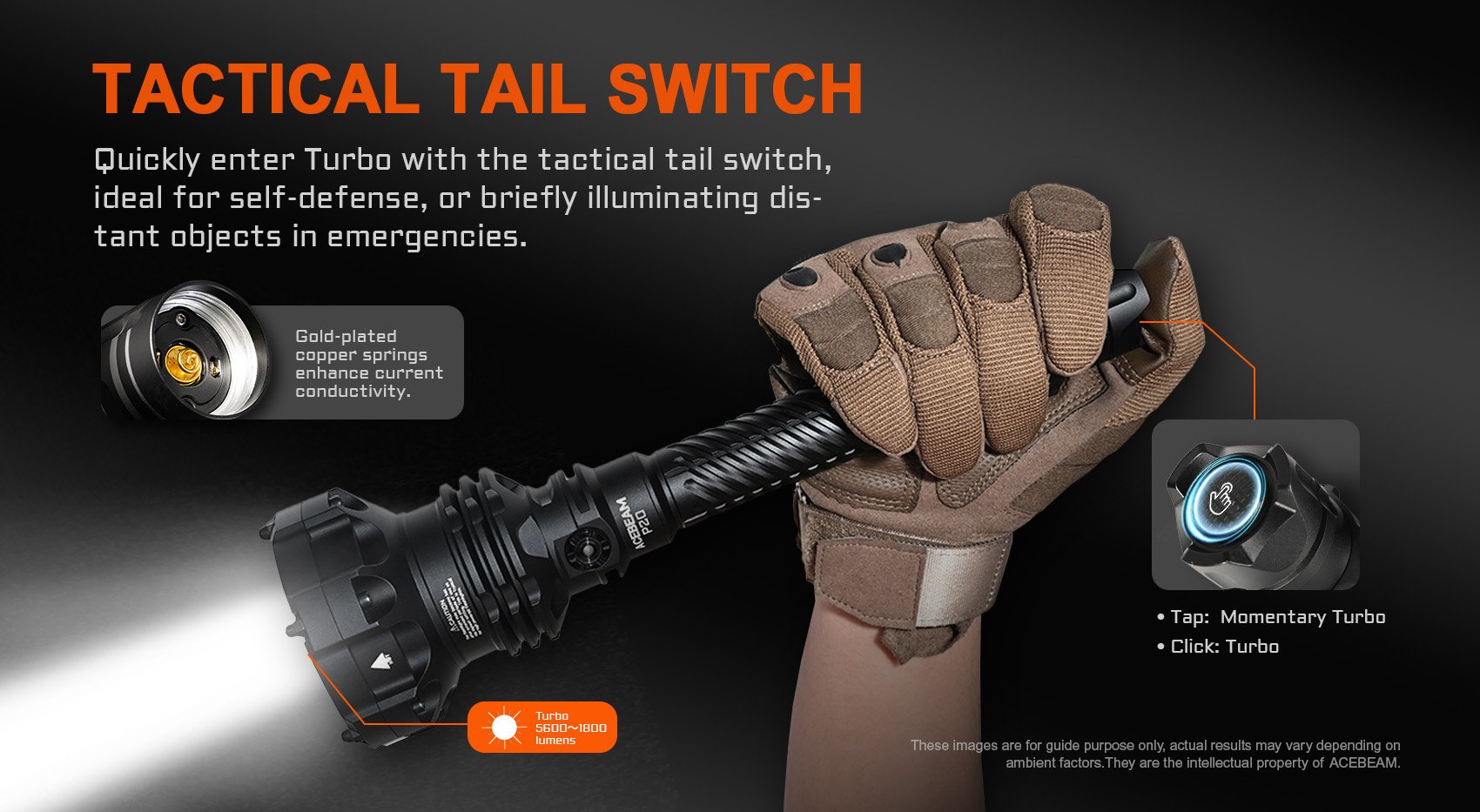

• Quick access to Turbo, reliable at critical moments
• 3mm thickened tempered glass brings greater durability, shock resistance, and better heat tolerance
• High strength and impact-resistant HAIII hard-anodized anti-abrasive and corrosion-resistant finish
• All metal body (AL6061-T6 high-quality aluminum alloy) can withstand 1.5-meter drop tests
• IP68 Dust-proof and Waterproof Rating: Fully submersible to 2 meters / 6.5 feet for up to 30 minutes
• Ideal for car repair, self-defense, search and rescue, law enforcement, and wildlife watching

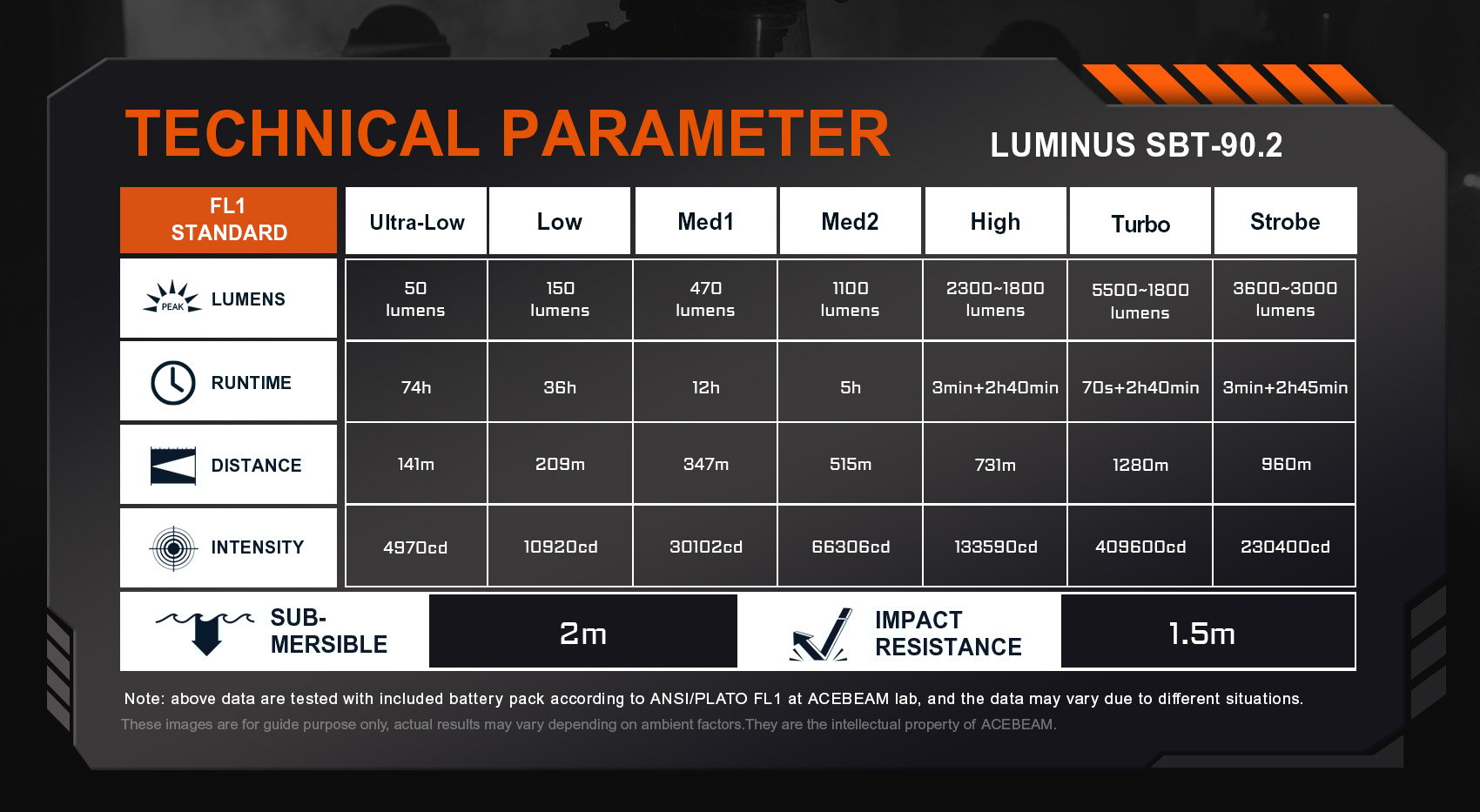

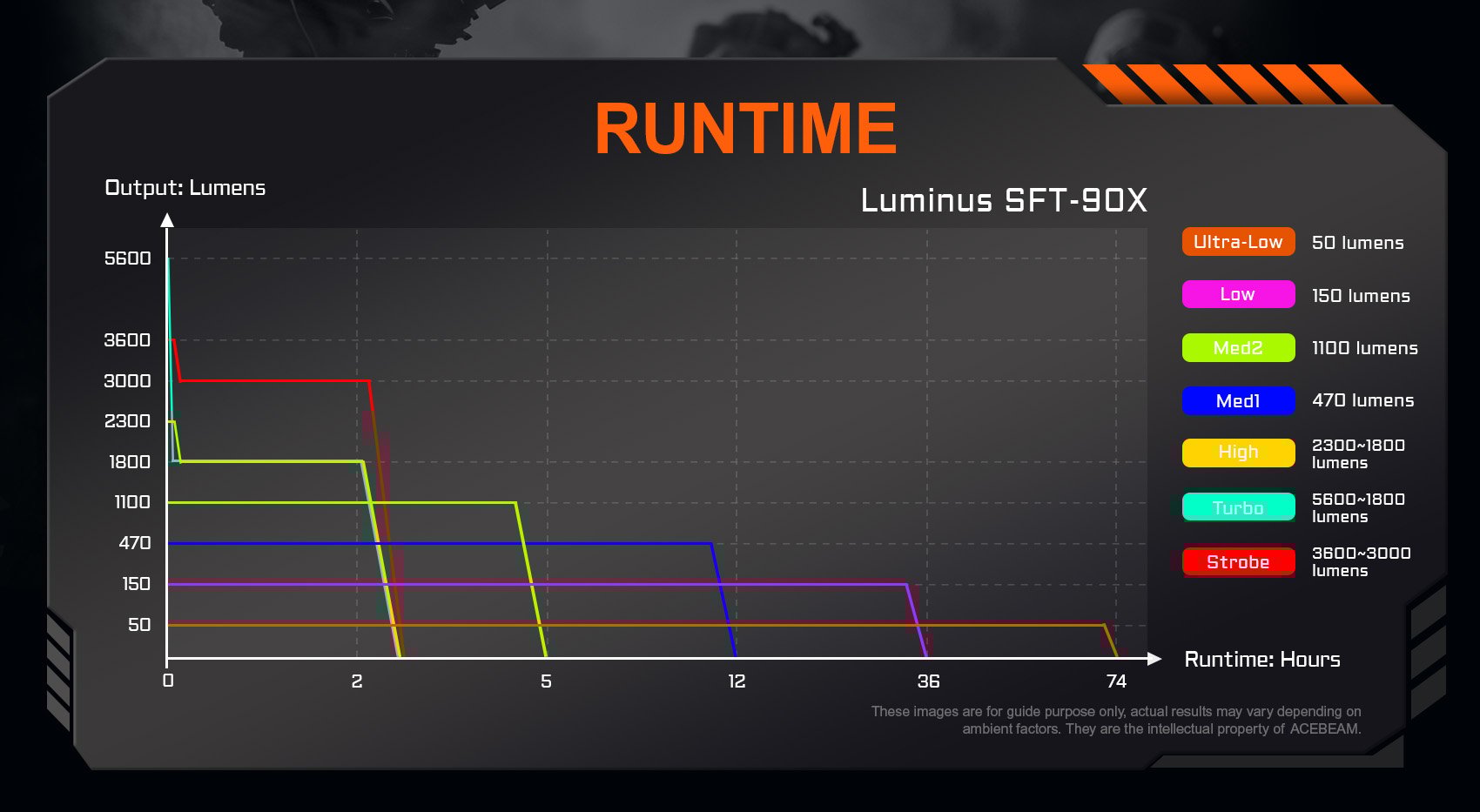

• 1 x Luminus SBT-90.2 LED
Ultra-Low: 50 lumens; 4970cd; 209 meters; 74 hours
Low: 150 lumens; 1092cd; 209 meters; 36 hours
Med1: 470 lumens; 30102cd; 347 meters; 12 hours
Med2: 1100 lumens; 66306cd; 515 meters; 5 hours
High: 2300 ~ 1800 lumens; 133590cd; 731 meters; 3 minutes + 2 hours 40 minutes
Turbo: 5500 ~ 1800 lumens; 409600cd; 1280 meters; 70 seconds + 2 hours 40 minutes
Strobe: 3600 ~ 3000 lumens; 230400cd; 960 meters; 3 minutes + 2 hours 40 minutes
Max. output: 5500 lumens
Max. beam distance: 1280 meters/1400 yards
Max. runtime: 74 hours on 50lm
Peak beam intensity: 409600cd
• 1 x Luminus SFT-90X LED
Ultra-Low: 50 lumens; 5256cd; 145 meters; 74 hours
Low: 150 lumens; 11664cd; 216 meters; 36 hours
Med1: 470 lumens; 33572cd; 367 meters; 12 hours
Med2: 1100 lumens; 78120cd; 559 meters; 5 hours
High: 2300 ~ 1800 lumens; 164430cd; 811 meters; 3 minutes + 2 hours 40 minutes
Turbo: 5600 ~ 1800 lumens; 528529cd; 1454 meters; 70 seconds + 2 hours 40 minutes
Strobe: 3600 ~ 3000 lumens; 285156cd; 1068 meters; 3 minutes + 2 hours 40 minutes
Max output: 5600 lumens

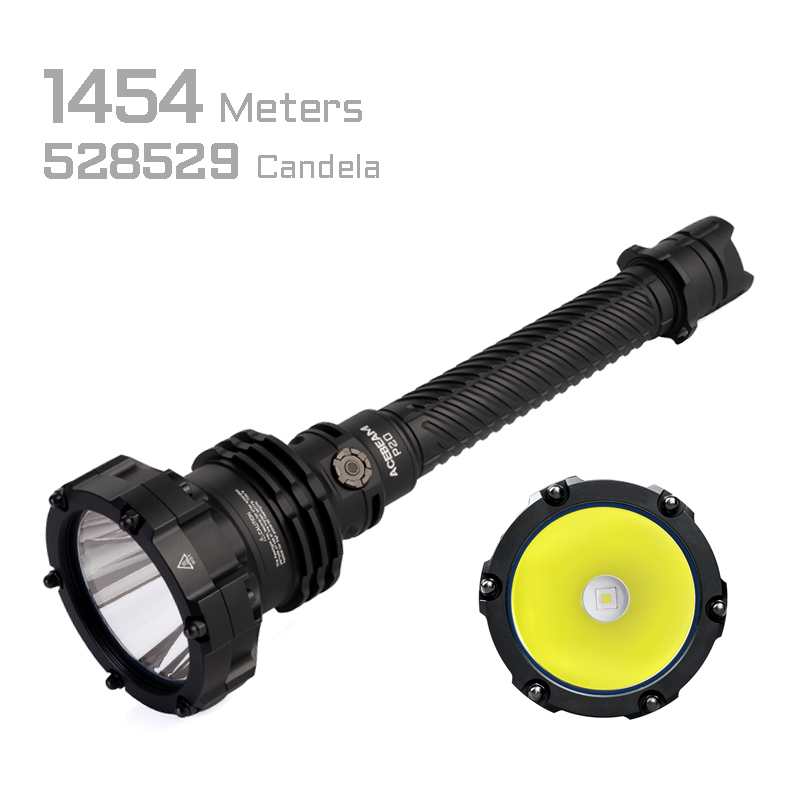

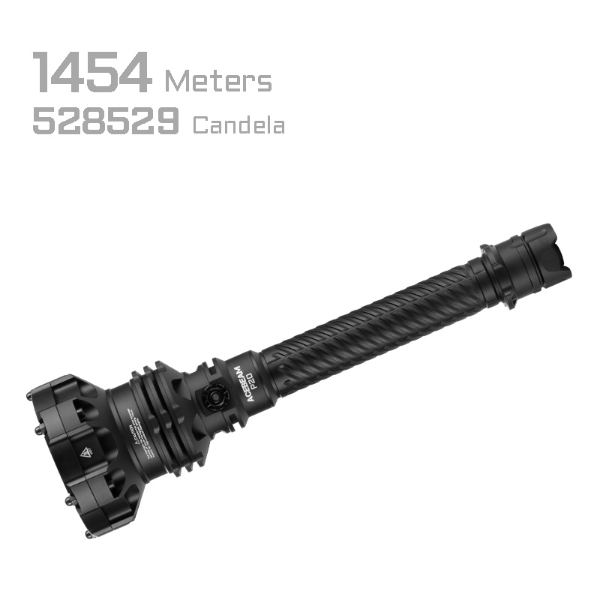

Max beam distance: 1454 meters/1590 yards
Max runtime: 74 hours on 50lm
Peak beam intensity: 528529cd
What is the concept design of the P20?
A: The P20 is designed to be extremely rugged, with a one-layer tube that withstands extreme conditions and rough handling. P20 is your trustworthy helper for searching or in emergencies. It is compatible with 2 readily available 21700 batteries as quick & easy backup options. with P20, will never let darkness catch you.
What kind of LED is used in P20?
A: Two LED options:
- 1 x Luminus SFT-90X LED, max output 5600 lumens, throw up to 1454 meters
- 1 x Luminus SBT-90.2 LED, max output 5500 lumens, throw up to 1280 meters
What is the product positioning of P20?
A: The highlight of the P20 is rugged durability, perfect for outdoor navigation, long-distance spotting, tactical and emergency missions.
What is the LED Color Temperature of P20?
A: Around 6000K Cool White.
Why does the ACEBEAM P20 21700 battery pack only have 5000mAh?
A: Our ACEBEAM 2 x 21700 Battery Pack is made in Series (Not in Parallel), the capacity remains 5000mAh, but the battery Voltage changes to 7.4V.
The total capacity of discharging in Series is the same 37Wh (Voltage x Capacity) as made in Parallel.
What is the range of the Operating Voltage of P20?
A: 5.0 - 8.4 V.
What is its charging Voltage and Current?
A: 5V 1.0~2A.
Why choose the removeable 21700 Battery Pack with built-in USBC port?
There are 3 factors.
1). Waterproof considerations:
To achieve an IP68 waterproof rating, we chose to a removable 21700 battery pack with built-in USBC port, not built in the USBC port on the flashlight.Using silicone cover will compromise the P20's tough exterior and waterproof rating, as the silicone material will degrade over time. Charging through such a 21700 battery pack ensures the best waterproof protection and tough feature.
2). 21700 Battery pack design:
This 21700 battery pack is made of two 21700 batteries in a 2S1P configuration. The copper ring of the ends around the battery pack serves as a signal transmission area. With built-in the chips of the battery- management and protection board monitor the charging process to ensure safety and reliability, which also enables the tail switch function to operate normally. so you can rest assured to use them.
3). Flexible battery options:
For long runtime outdoors, the P20 comes with a removable high-capacity 21700 battery pack, compatible with regular 21700 batteries (with or without built-in USBC port). So you do not need to wait for charging for a long time, which works in any emergency tasks. This is also crucial for long hiking trips or unexpected power outages. When the flashlight is powered by 2 x 21700 single batteries, please operate the flashlight via the side switch.This flexibility enhances the practicality of the P20 in extreme conditions.
Why does P20 use one-layer tube design?
The one-layer tube is designed to withstand extreme conditions and rough applications.
When using 2 x 21700 single batteries, can I still operate the light with tail switch?
A: When powered by 21700 batteries, it is programmed that you can experience smooth operation with the side switch.
How to get started?
How to install a battery?

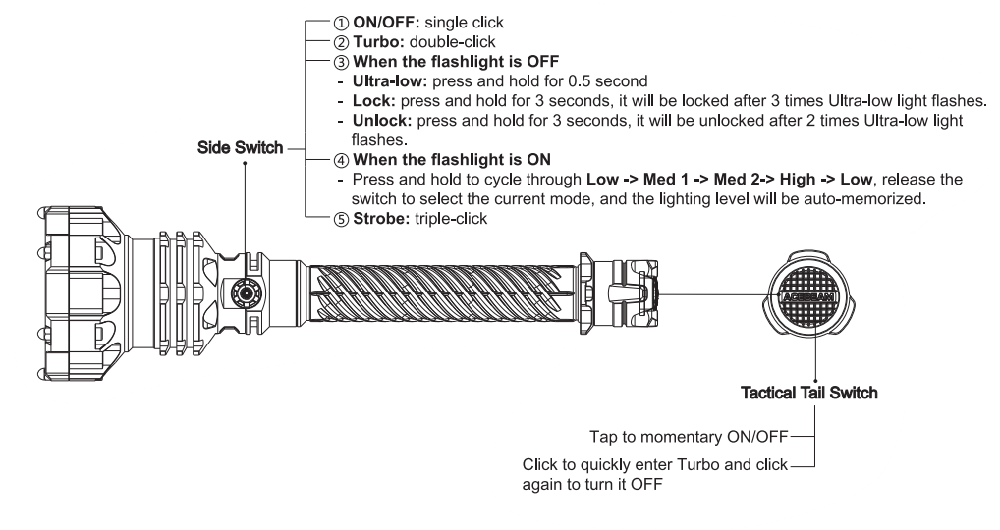

How to operate?
Why does the flashlight happen to flicker?
A: The reasons that may cause the light to flicker, shine intermittently or even fail to illuminate:
1). Poor battery level.
Solution: Recharge or replace the battery.
2). The contact or contact point of the battery or flashlight is dirty.
Solution: Clean the contact points with a cotton swab soaked in rubbing alcohol.
3). The tail switch of the flashlight is slightly misaligned.
Solution: Make sure the flashlight tail switch is screwed on properly.
