DETAILS

• Utilizes one high-efficient LUXEON HL4X LED with a lifespan of 50,000 hours
• Max output 500 lumens, throw up to 80 meters
• 3 brightness levels are available: Low, Med, and High
• Turns ON in "Med" by default, reduces frequent output selection
• Durable tail switch provides easy one-handed operation
• One 10880 USB-C Li-ion battery (included), compatible with two AAA Alkaline/Ni-MH batteries
• Sturdy Two-way Clip for hands-free use
• Pen-shaped design, comfortable to grip
• Paired with TIR optical lens for uniform light output
• No standby current, safe and cost-efficient
• High strength and impact-resistant HAIII hard-anodized anti-abrasive and corrosion-resistant finish
• AL6061-T6 high-quality aluminum alloy body can withstand 1.5-meter drop test
• IP68 rated, provides effective protection against dust, and can fully submersible to 2 meters / 6.5 feet for up to 30 minutes

BATTERIES

• Included: 1 x 10880 USB-C Li-ion battery
• Compatible: 2 x  AAA Alkaline/Ni-MH batteries

SIZE

• Length: 132.5mm/5.21"
• Body dia.: 14mm/0.55"
• Weight: 47g/1.65oz (incl. battery)

OUTPUTS

• 1 x  LUXEON HL4X 6500K LED

Low: 5 lumens; 28 hours
Med: 300 lumens; 1h15min
High: 500 lumens;1600cd; 80 meters; 30min

Max. output: 500 lumens
Max. beam distance: 80 meters
Max. runtime: 28 hours
Peak beam intensity: 1600cd

What kind of LED is used in PT20? Does ACEBEAM offer LED replacement service?
A: PT20 utilizes one high-efficient LUXEON HL4X LED with a lifespan of 50,000 hours.

ACEBEAM does not offer LED replacement services currently, and please do not replace the LEDs privately, as doing so might affect product performance and cause damage to the product.

How to get started?

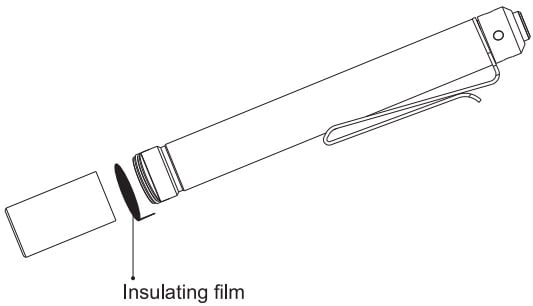

Before first use, unscrew the head of penlight and remove the insulating film.

What kind of battery is included?
1 x 10880 USB-C Li-ion battery

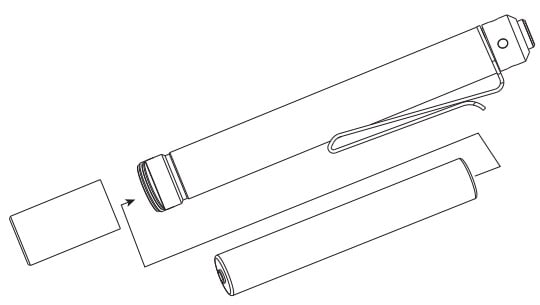

How to install the battery?

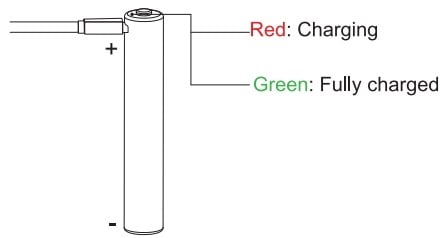

battery charging indicator

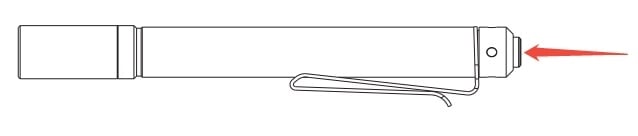

How to ON/OFF?

Fully press the tail switch until a click is heard, and then release the switch.

How to Output Selection?

When the light is switched ON, tap the tail switch to cycle through "Med → Low → High→ Med".

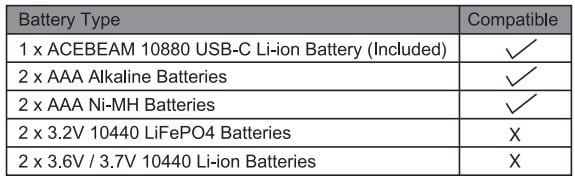

Battery options

What should I do if it needs repair?
A: Please refer below:
 • 15-day replacement: ACEBEAM will replace any quality defective lights within 15 days of purchase.
 • 5-year free repair: ACEBEAM will repair an LED light free of charge within 5 years (LEP model, battery, battery pack, charger, remote switch, and other accessories: 1 year) of purchase if problems develop with normal use.
 • Limited lifetime warranty, if repair is required after 5 years from the date of purchase, ACEBEAM will charge for parts.
Please keep your warranty card in contacting the authorized distributors for after-sale maintenance, and the customer information is required to fill out if repair is needed.
