DETAILS

• Two LED options:

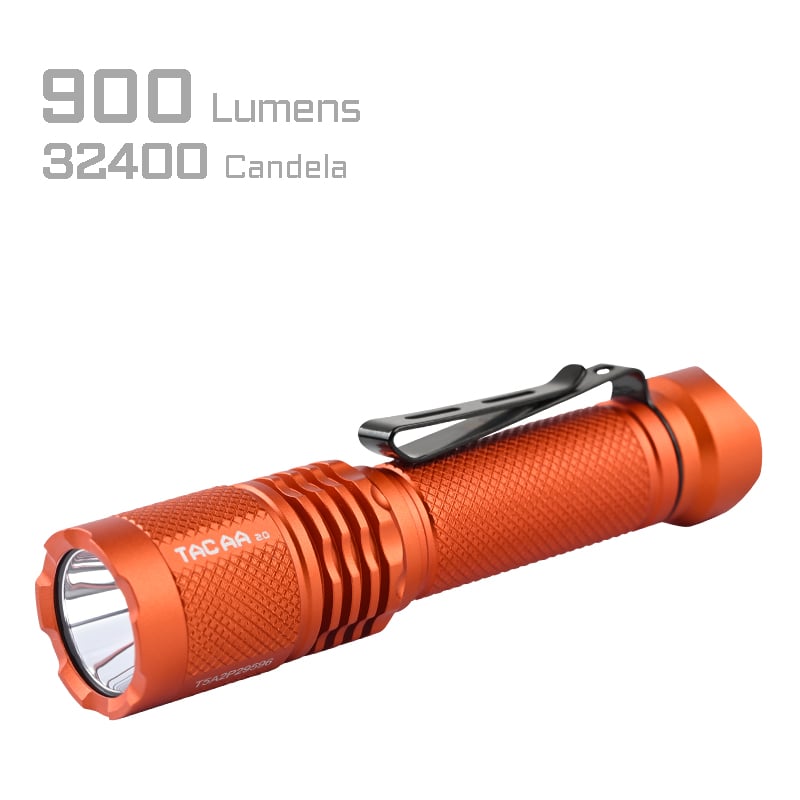

- Utilizes a Luminus SFT-25R HI 6500K LED with max output 900 lumens and max throw of 360 meters
- Utilizes a cool white 6500K TN LED with max output 1000 lumens and max throw of 280 meters
• 6 programmable modes so that you can program the light functions according to your needs.
• 4 brightness levels, Strobe, SOS, meet your lighting needs of multiple scenarios

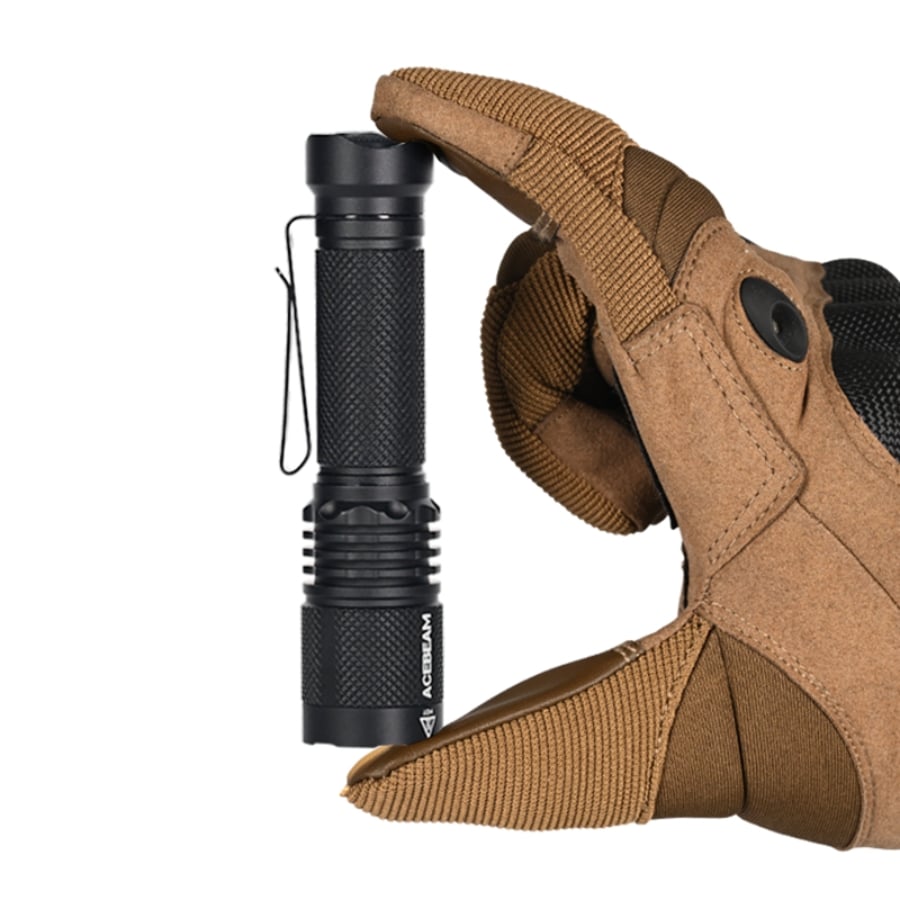

• Compact size makes it easy to take anywhere
• Operate with a single, easy-to-press tactical tail switch
• Dual fuel design, powered by an included 14500 USB-C battery, compatible with a standard AA battery for use as a backup
• Two-way clip and tail standing capability for various conditions.
• The included diffuser caps (white, orange) can transform your light into a reading, signal or emergency light.
• Stainless steel strike bezel ideal for self-defense in case of emergencies
• Anti-slip knurling provides a stable, reliable grip
• High strength and impact-resistant HAIII hard-anodized anti-abrasive and corrosion-resistant finish
• AL6061-T6 high-quality aluminum alloy can withstand 1.5-meter drop test
• IP68 Dust-proof and Waterproof Rating: fully submersible to 6.5 feet for up to 30 minutes

BATTERIES

• Included: 1 x ACEBEAM 14500 USB-C rechargeable battery
• Compatible: one AA Alkaline or NiMH rechargeable battery

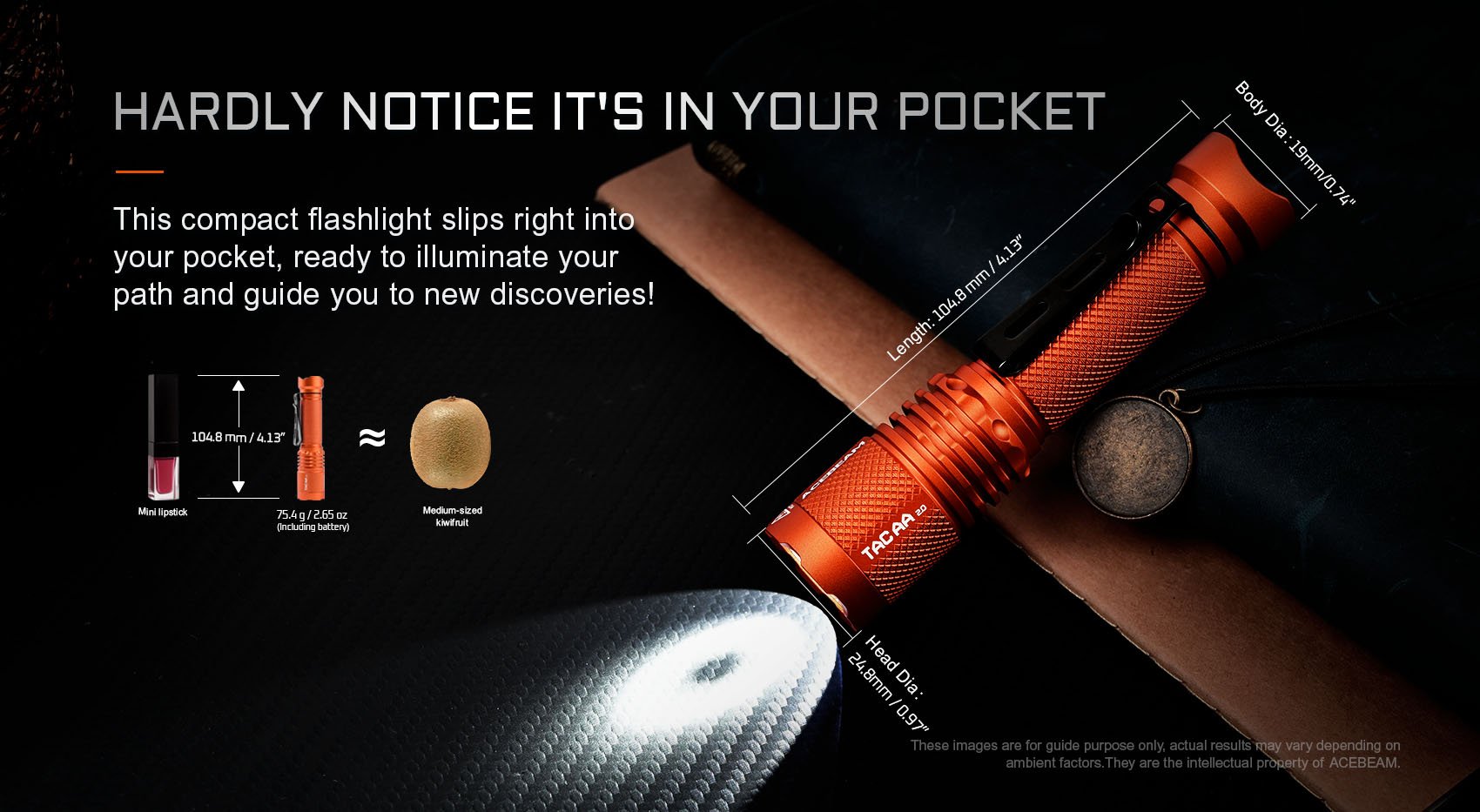

SIZE

• Length: 104.8mm / 4.12"
• Head Diameter: 24.8mm / 0.97"
• Body Diameter: 19mm / 0.74"
• Weight: 75g / 2.64oz (including battery)

OUTPUTS

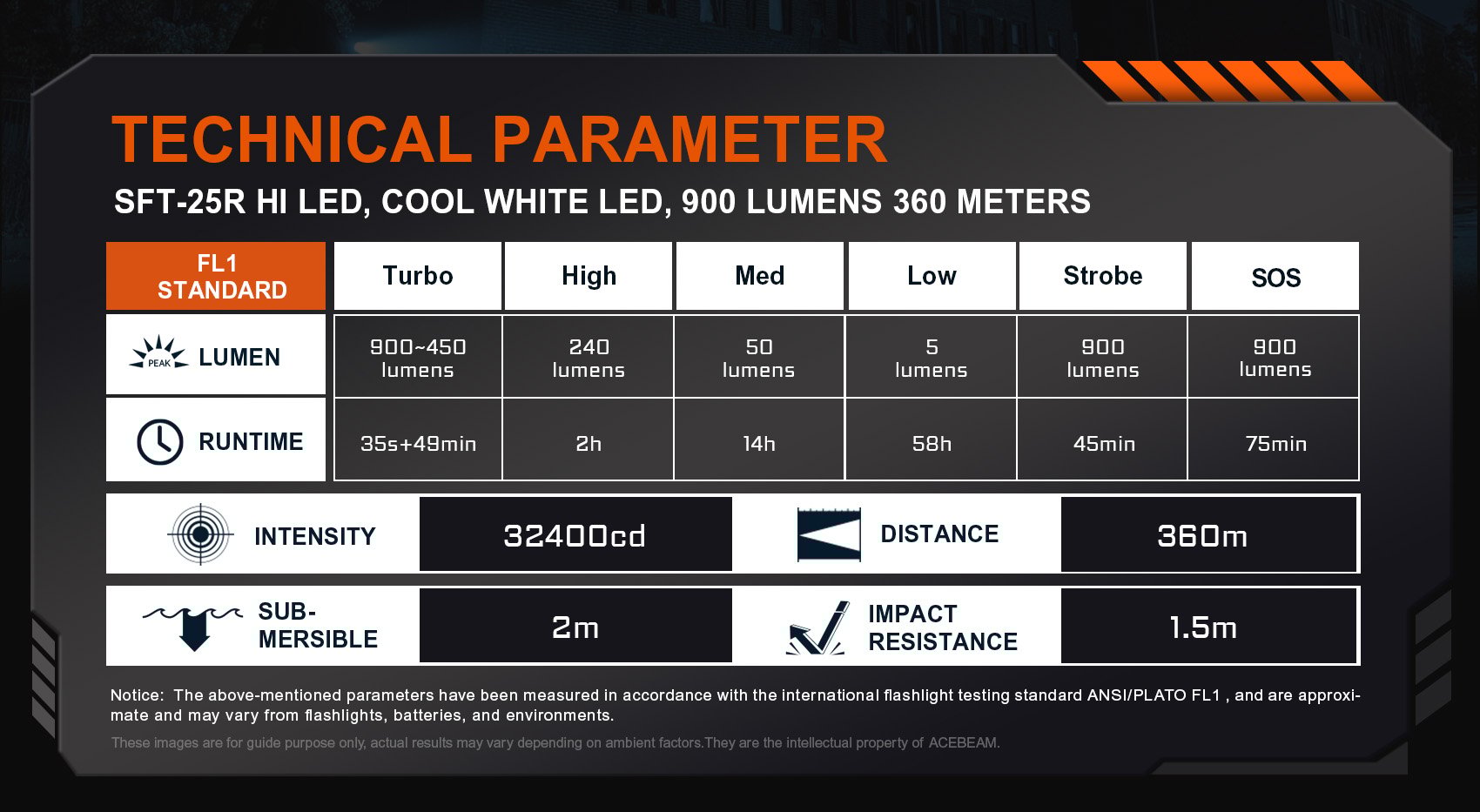

• 1 x Luminus SFT-25R HI LED 6500K

Low: 5 lumens; 58 hours
Med: 50 lumens; 14 hours
High: 240lumens; 2 hours
Turbo: 900 ~ 450 lumens; 32400cd; 360 meters; 35s+49min
Strobe: 900 lumens; 45 minutes
SOS: 900 lumens; 75 minutes

Max. output: 900 lumens
Max. beam distance: 360 meters
Max. runtime: 58 hours on Low
Peak beam intensity: 32400cd

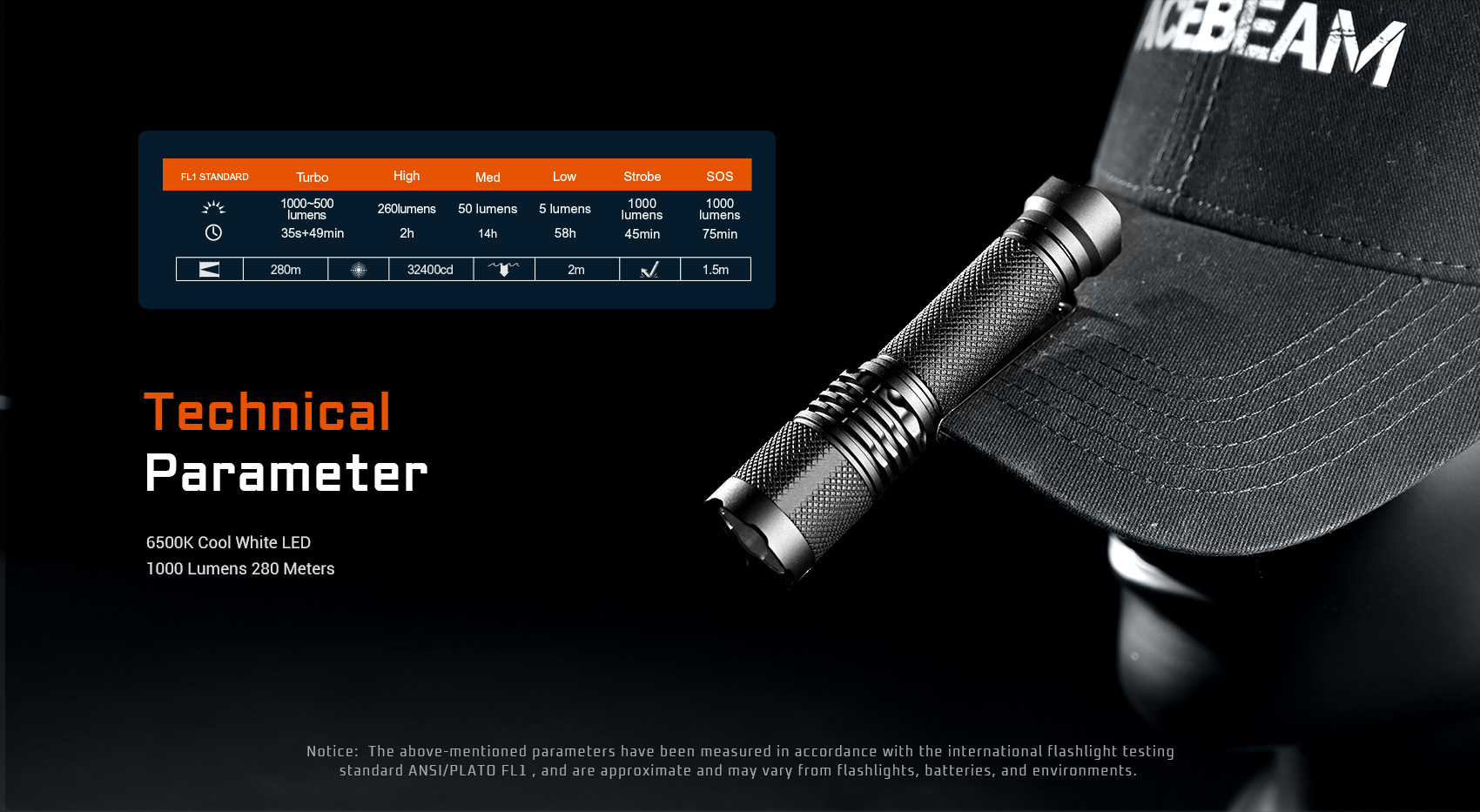

• 1 x TN LED 6500K

Low: 5 lumens; 58 hours
Med: 50 lumens; 14 hours
High: 260 lumens; 2 hours
Turbo: 1000 ~ 500 lumens; 32400cd; 280 meters; 35s+49min
Strobe: 1000 lumens; 45 minutes
SOS: 1000 lumens; 75 minutes

Max. output: 1000 lumens
Max. beam distance: 280 meters
Max. runtime: 58 hours on Low
Peak beam intensity: 32400cd

Does TAC AA 2.0 offer two LED options? Does ACEBEAM offer LED replacement service?
Yes, Two LED options:
- Utilizes a Luminus SFT-25R HI 6500K LED with max output 900 lumens and max throw of 360 meters
- Utilizes a cool white 6500K TN LED with max output 1000 lumens and max throw of 280 meters

ACEBEAM does not offer LED replacement services currently, and please do not replace the LEDs privately, as doing so might affect product performance and cause damage to the product.

How to get started?

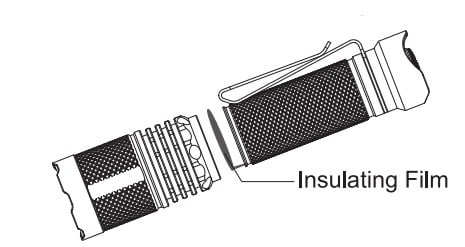

Please remove the insulating film.

What kind of battery is included?
1 x ACEBEAM 14500 USB-C rechargeable battery.

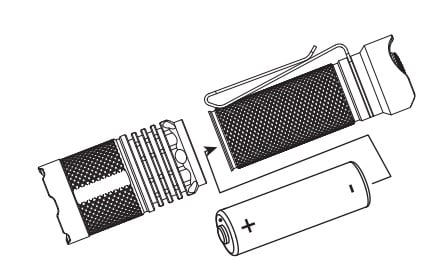

How to install the battery?

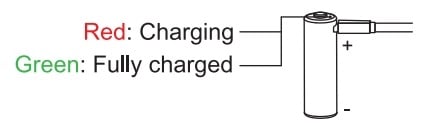

battery charging indicator

What kind of battery is included?
1 x ACEBEAM 14500 USB-C rechargeable battery.

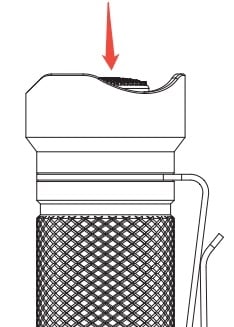

How to ON/OFF?

Fully single-click the switch.

How to conduct Output Selection?

when the light is switched OFF, half press the switch or rapidly fully click the switch to cycle through brightness levels.

How to conduct Mode Selection?
When the light is switched OFF, conduct Output Selection more than 20 times in a row, and make sure the light is switched ON, now the light will start flashing (flashes once, indicates Mode 1, flashes twice, indicates Mode 2, and so on, 6 Modes in total). Then quickly conduct Output Selection once to enter the next mode.
Mode 1: Low, Turbo.
Mode 2: Low, Med, High, Turbo.
Mode 3: Low, Med, High, Turbo, Strobe.
Mode 4: Low, Med, High, Turbo, SOS.
Mode 5: Turbo, High, Med, Low.
Mode 6: Turbo

What should I do if it needs repair?
A: Please refer below:
 • 15-day replacement: ACEBEAM will replace any quality defective lights within 15 days of purchase.
 • 5-year free repair: ACEBEAM will repair an LED light free of charge within 5 years (LEP model, battery, battery pack, charger, remote switch, and other accessories: 1 year) of purchase if problems develop with normal use.
 • Limited lifetime warranty, if repair is required after 5 years from the date of purchase, ACEBEAM will charge for parts.
Please keep your warranty card in contacting the authorized distributors for after-sale maintenance, and the customer information is required to fill out if repair is needed.
