• 3-in-1 light sources: white light, red light, UV light
• Utilizes a Luminus SFT-25R HI cold white 6500K LED with a max output of 1,000 lumens and up to 220 meters
• Five white brightness levels + Strobe to meet your multiple daily lighting needs
• The soft red light is perfect for outdoor activities at night as it does not disrupt wildlife
• 365nm UV light allows you to spot stains that are difficult to find with the naked eyes
• Dual-stage tactical tail switch is for easily and quickly access Turbo and Strobe
• Function switch is for output selection, entering red light, UV light, and more
• Built-in 1000mAh rechargeable lithium-polymer battery
• 5V 1A charging, about 1.2 hours to full charge via USB-C port
• CNC machined flat unibody design, strong and durable.
• Lightweight and Ultra-thin, comes with a detachable two-way clip, easy to carry
• Double-sided tempered glass with anti-reflective coating lens with strong light transmittance
• High strength and impact-resistant HA III hard-anodized anti-abrasive and corrosion-resistant finish
• AL6061-T6 high-quality aluminum alloy body can withstand 1.5-meter drop test
• IP68 rated, provides effective protection against dust, and can fully submersible to 2 meters / 6.5 feet for up to 30 minutes
Ultra-Low: 5 lumen; 63 hours
Low: 60 lumens; 7.9 hours
Med: 200 lumens; 2.5 hours
High: 450 lumens; 1 hour
Turbo: 1000 ~ 450 lumens; 12100cd; 220 meters; 2min + 54min
Strobe: 1000 ~ 450 lumens; 12100cd; 220 meters; 6min + 1h40min

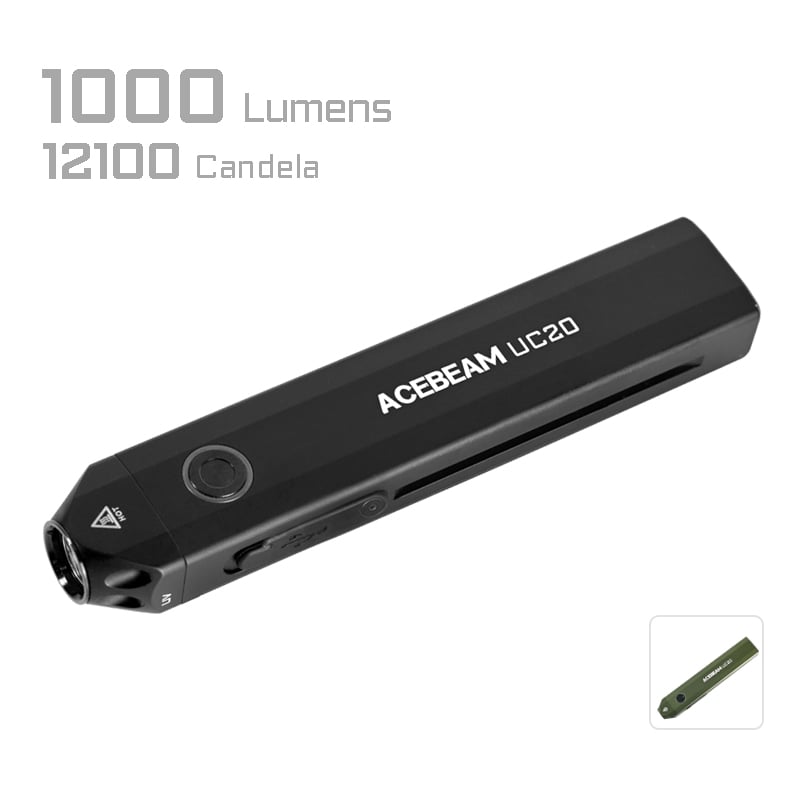

Max. output: 1000 lumens
Max. beam distance: 220 meters
Max. runtime: 63 hours
Peak beam intensity: 12100cd
Low: 8 lumens; 4.3 hours
High: 23 lumens; 1.1 hours
High: 2.3 hours
What sort of LED is used in UC20? Does ACEBEAM offer LED replacement service?
UC20 utilizes a Luminus SFT-25R HI cold white 6500K LED
ACEBEAM does not offer LED replacement services currently, and please do not replace the LEDs privately, as doing so may affect product performance or cause damage to the product.
May I have a brief overview of UC20?

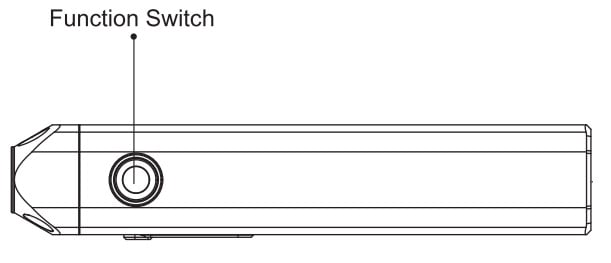

How to operate Function Switch?
• ON/OFF: single click (default white light)
• Enter Ultra-Low: when the light is OFF, long press the function switch for about 0.5s to access.
• Output selection (white light): while turning ON in white light, long press the function switch to cycle through "Low→Med→High "
• Enter red light: quick double-click
• Output selection (red light): while turning ON in red light, long press to cycle through "Low→High→Low"
• Enter the UV light: quick triple-click
• Exit red/UV light: turn the light OFF with just a simple click of the function switch

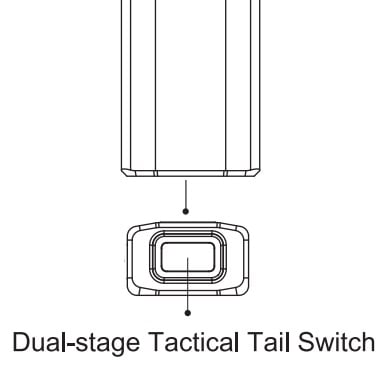

How to operate Tail Switch?
Half Press ( < 5S ): Momentary Turbo
Full Press ( < 5S ): Momentary Strobe
Half Press ( > 5S ): Turbo
Full Press ( > 5S ): Strobe

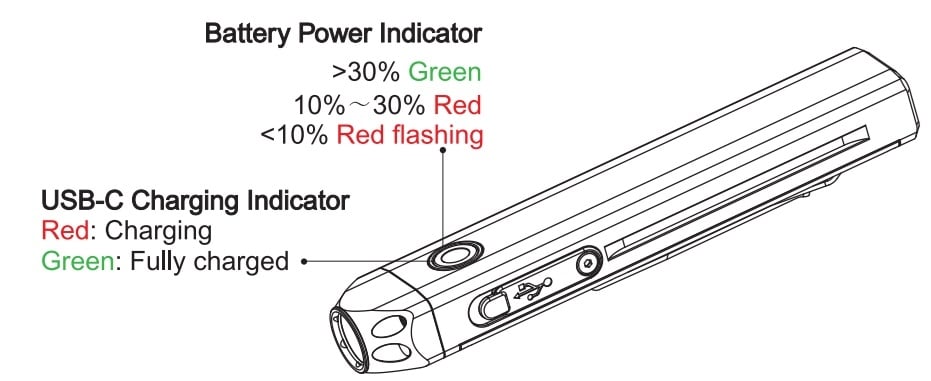

Does it have a battery power indicator?
yes.
How to prevent accidental activation?
When the light is OFF, long press the function switch for about 3s until the light flashes 3 times to indicate Locked.
How to unlock UC20?
Once locked, users can long press the function switch for about 2s until the light flashes 2 times to indicate unlocked.
Is the UC20 waterproof?
A: Yes, it can fully submersible to 6.5 feet for up to 30 minutes
What should I do if UC20 needs repair?
A: Please refer below:
• 15-day replacement: ACEBEAM will replace any quality defective lights within 15 days of purchase.
• 5-year free repair: ACEBEAM will repair an LED light free of charge within 5 years (LEP model, battery, battery pack, charger, remote switch, and other accessories: 1 year) of purchase if problems develop with normal use.
• Limited lifetime warranty, if repair is required after 5 years from the date of purchase, ACEBEAM will charge for parts.
Please keep your warranty card in contacting the authorized distributors for after-sale maintenance, and the customer information is required to fill out if repair is needed.
