• Two LED options:
-8 x SFT-25R HI LEDs, max output 8000 lumens, throw up to 645 meters
-8 x LUXEON HL4X LEDs, max output 10000 lumens, throw up to 440 meters
• Gently push the toggle switch left or right to cycle through tactical mode and duty mode
• Dual-stage tactical tail switch is for easily and quickly access Turbo and Strobe
• Six white brightness levels + Strobe to meet your multiple daily lighting needs
• Lockout function prevents accidental activation, ensuring worry-free transportation

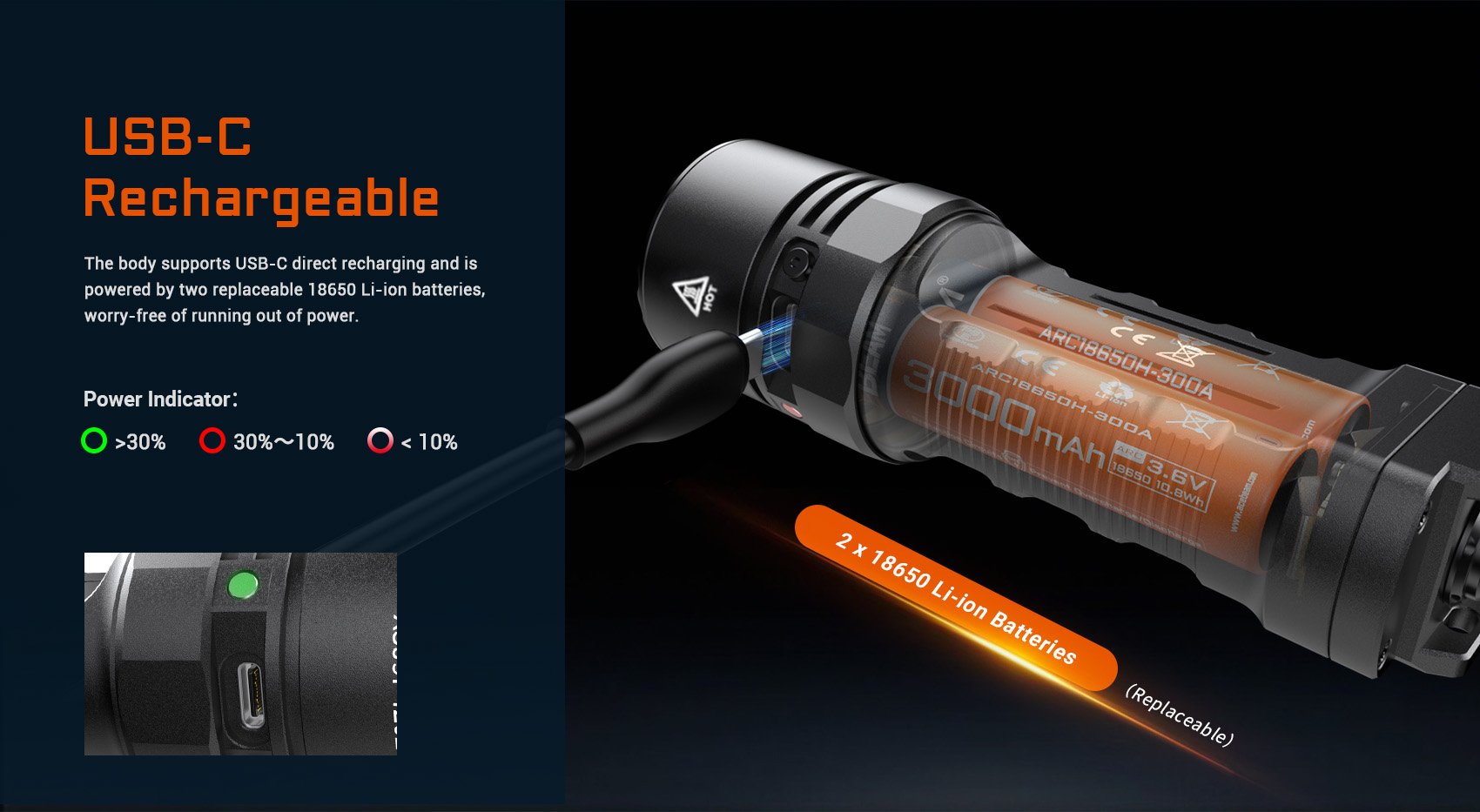

• Powered by 2 x 18650 Li-ion batteries, making replacement convenient
• The body supports USB-C direct charging for convenience

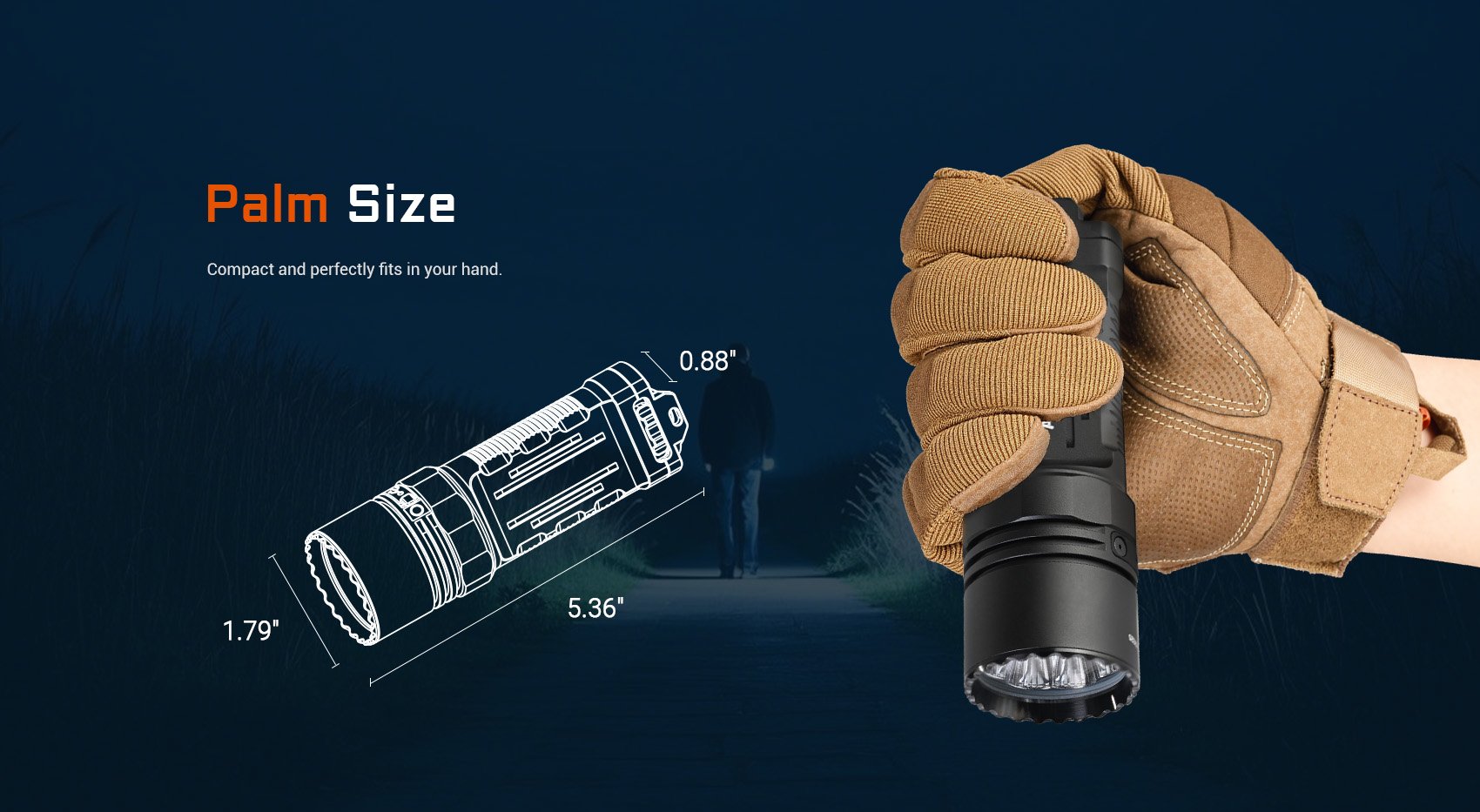

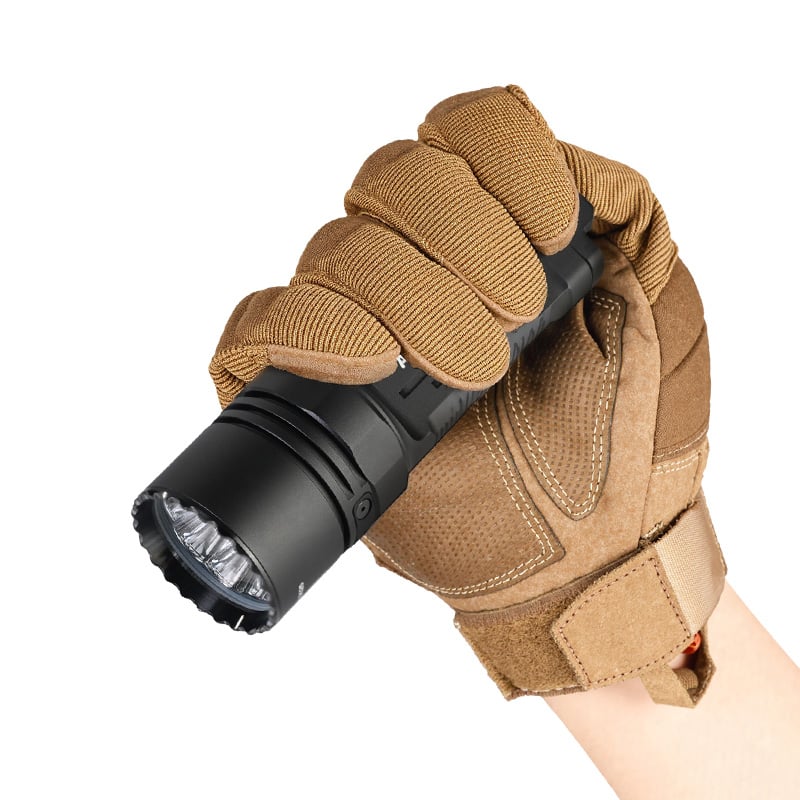

• Palm size, perfectly fits in your hand
• Double-sided tempered glass with anti-reflective coating lens with strong light transmittance
• High strength and impact-resistant HA III hard-anodized anti-abrasive and corrosion-resistant finish
• AL6061-T6 high-quality aluminum alloy body can withstand 1.5-meter drop test
• IP68 rated, provides effective protection against dust, and can fully submersible to 2 meters / 6.5 feet for up to 30 minutes

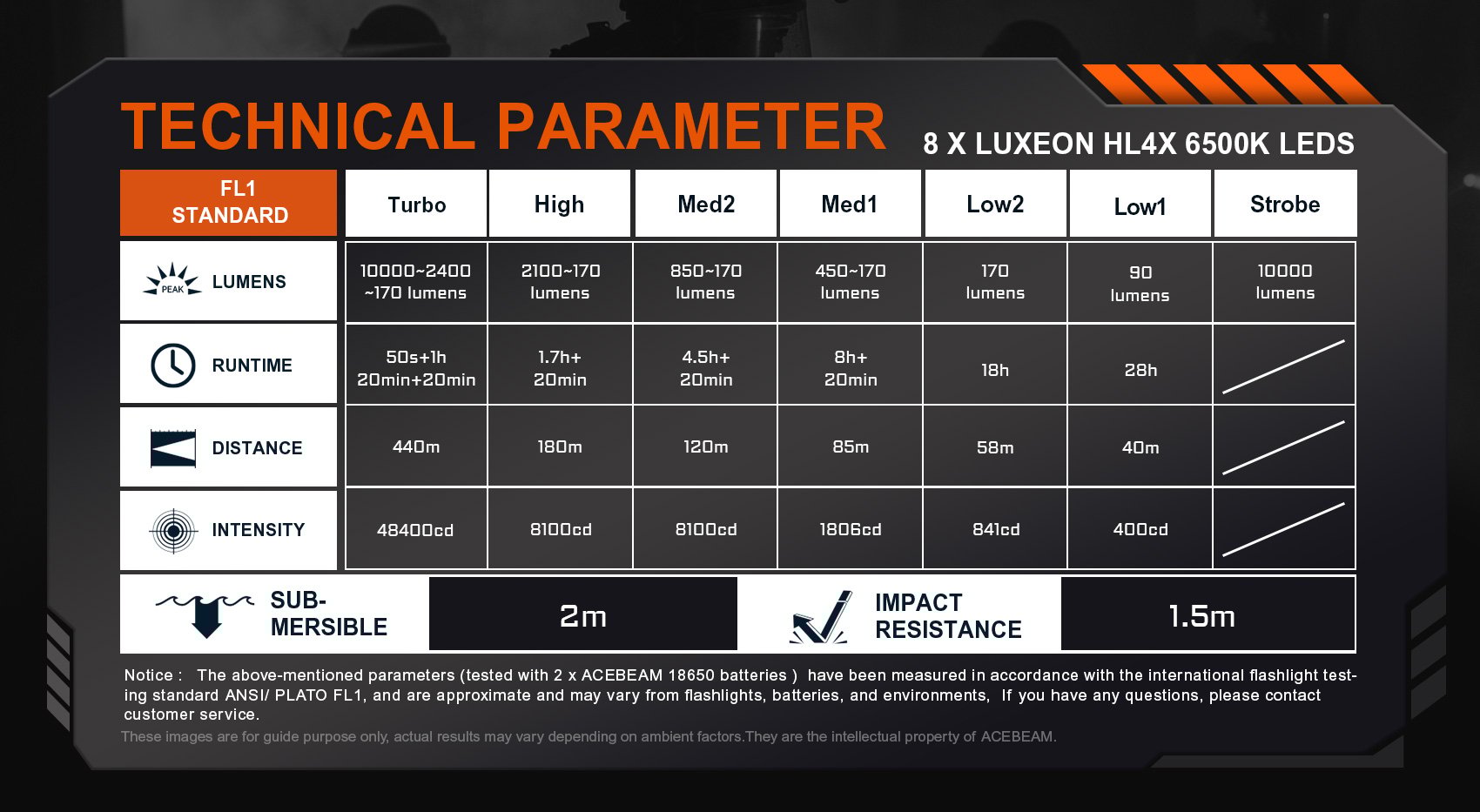

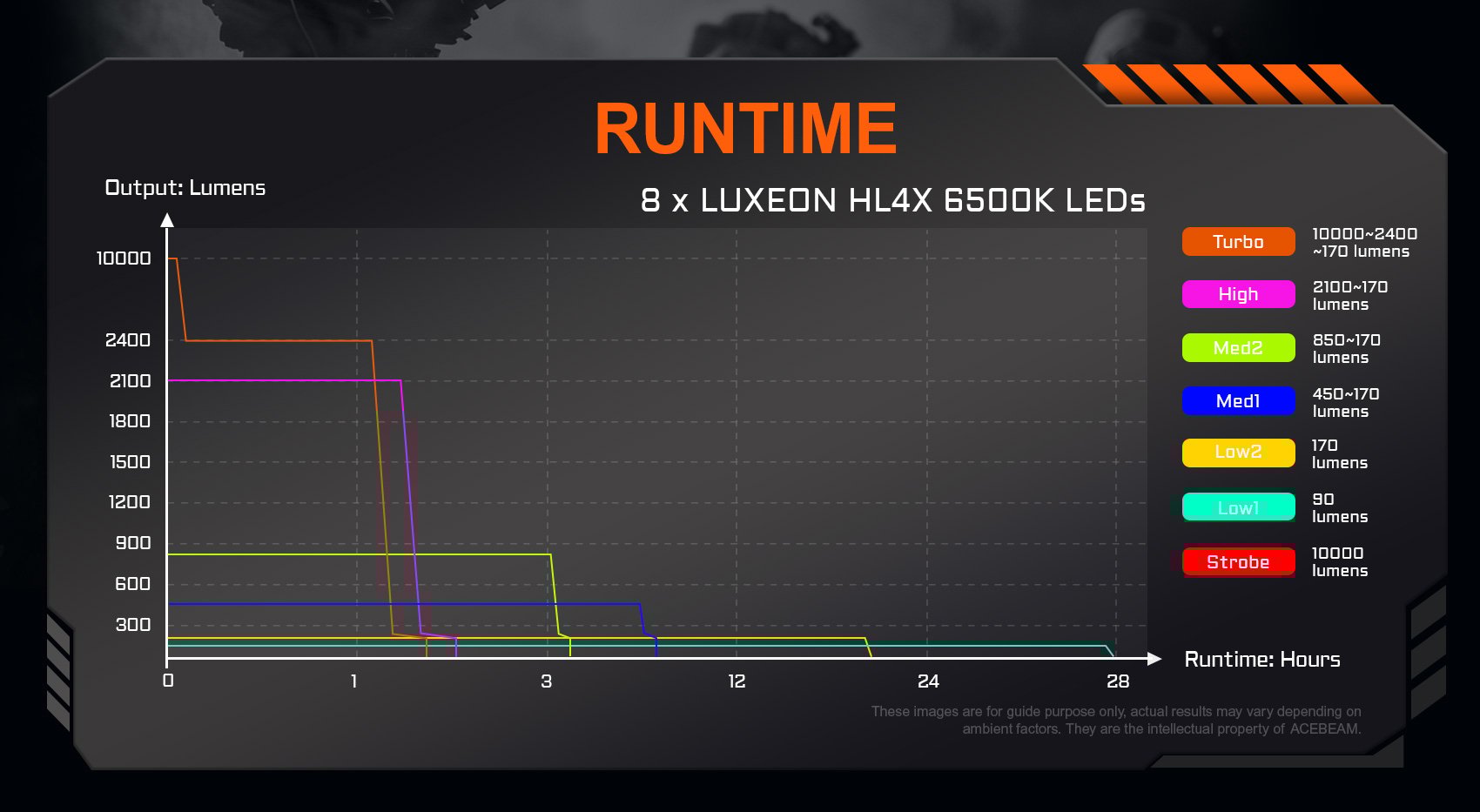

Low1: 90 lumens; 400cd; 40 meters; 28 hours
Low2: 170 lumens; 841cd; 58 meters; 18 hours
Med1: 450~170 lumens; 1806cd; 85 meters; 8h~20min
Med2: 850~170 lumens; 3600cd; 120 meters; 4.5h~20min
High: 2100~170 lumens; 8100cd; 180meters; 1.7h ~ 20min
Turbo: 10000~2400~170 lumens; 48400cd; 440 meters; 50s ~ 1h20min~20min
Strobe: 10000 lumens
Max. output: 10000 lumens
Max. beam distance: 440 meters
Max. runtime: 28 hours on Low 1 (90 lumens)
Peak beam intensity: 48400cd
Low1: 80 lumens; 900cd; 60 meters; 28 hours
Low2: 150 lumens; 1600cd; 80 meters; 18 hours
Med1: 400~150 lumens; 4225cd; 130 meters; 8h~20min
Med2: 750~150 lumens; 8100cd; 180 meters; 4.5h~20min
High: 1800~150 lumens; 19600cd; 280meters; 1.7h ~ 20min
Turbo: 8000~2100~150 lumens; 104006.25cd; 645 meters; 50s ~ 1h20min~20min
Strobe: 8000 lumens
Max. output: 8000 lumens
Max. beam distance: 645 meters
Max. runtime: 28 hours on Low 1 (80 lumens)
Peak beam intensity: 104006.25cd
How many LED options for X20? Does ACEBEAM offer LED replacement service?
Two LED options:
• 8 x SFT-25R HI LEDs, max output 8000 lumens, throw up to 645 meters
• 8 x LUXEON HL4X LEDs, max output 10000 lumens, throw up to 440 meters
ACEBEAM does not offer LED replacement services currently, and please do not replace the LEDs privately, as doing so might affect product performance and cause damage to the product.
How to get started?

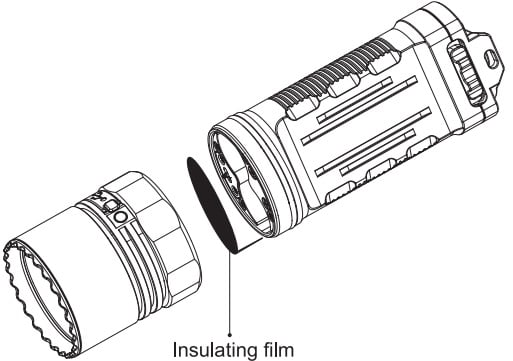

Before first use, unscrew the head of penlight and remove the insulating film.
What kind of battery is included?
2 x 3000mAh 18650 Li-ion batteries (replaceable)

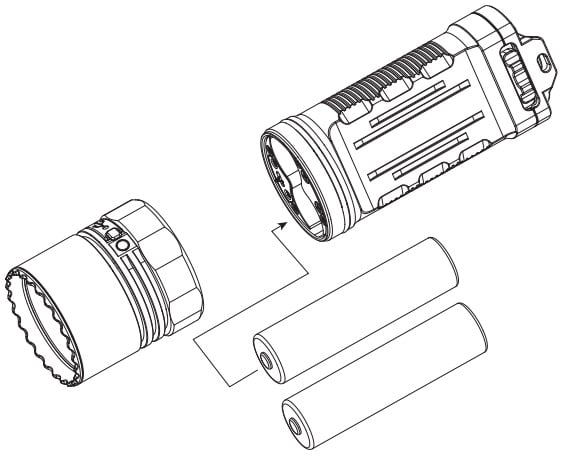

How to install the battery?
Battery power indicator
When charging the battery, the indicator will flash red, after fully charged, the indicator turns green.

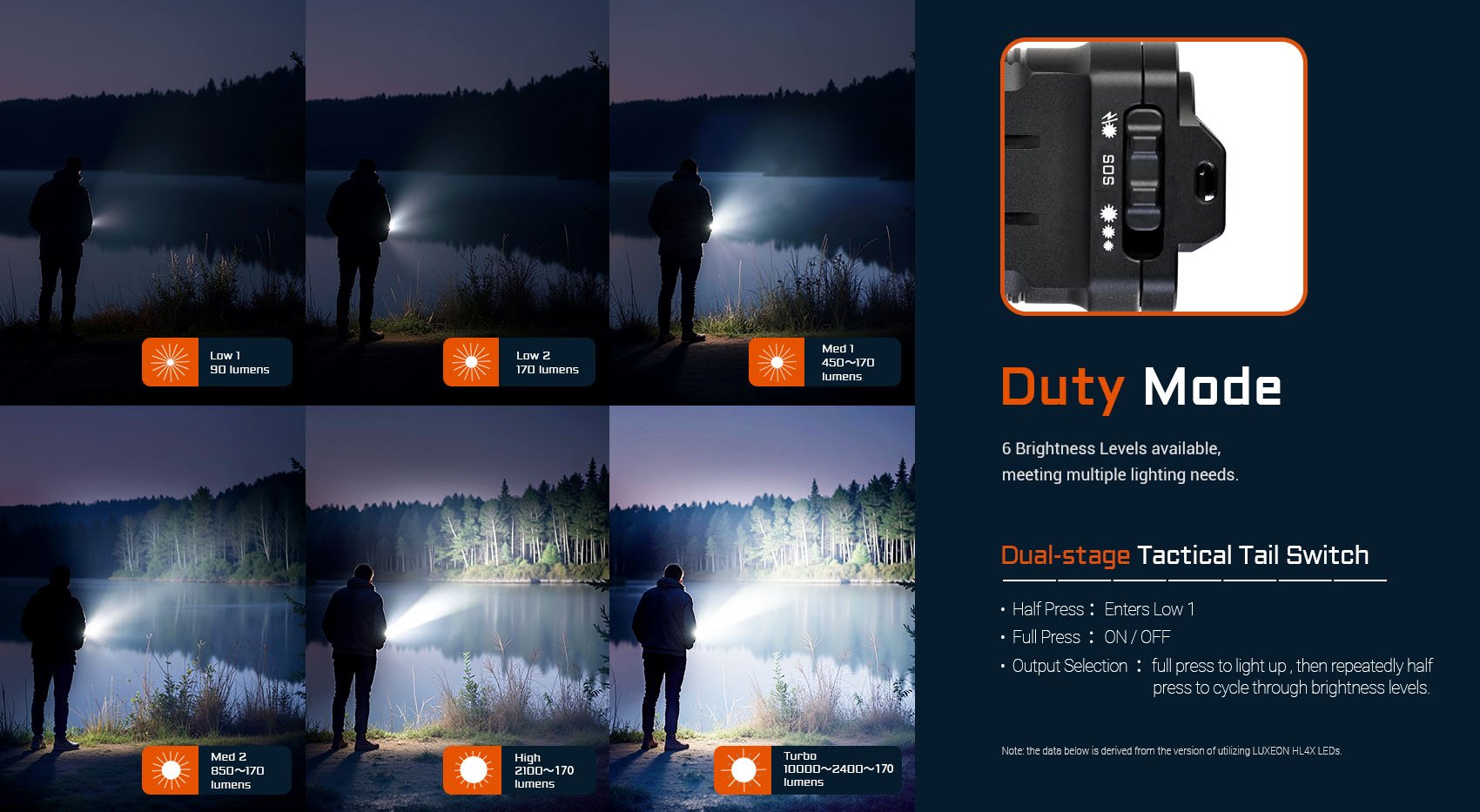

How to operate in Duty Mode?
Step1 | Step 2 |
Toggle Switch To enter Duty Mode,

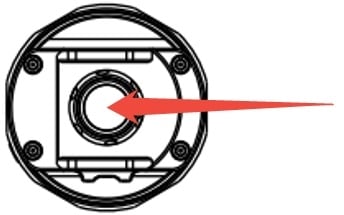

| Dual-stage Tactical Tail Switch
Note: “Low-Med-Med2-High-Turbo” has a memory function, X20 will automatically access the previous memorized brightness level when you power it ON again. |
How to operate in Tactical Mode?
Step1 | Step 2 |
Toggle Switch To enter Tactical Mode, | Dual-stage Tactical Tail Switch • Half Press: enters Momentary Turbo |
To prevent accidental activation, how to get it locked? Once locked, is there any operation available?
Step1 | Step 2 |
Lock Push the toggle switch to the left | Dual-stage Tactical Tail Switch Once locked, half / full press the Tail Switch, and the indicator of X20 will flash, flash once, indicates about 20% battery power left, flash twice, about 40%, and it can max flash 5 times. |
Unlock Push the toggle switch to the middle/right | / |
What should I do if it needs repair?
Please refer below:
• 15-day replacement: ACEBEAM will replace any quality defective lights within 15 days of purchase.
• 5-year free repair: ACEBEAM will repair an LED light free of charge within 5 years (LEP model, battery, battery pack, charger, remote switch, and other accessories: 1 year) of purchase if problems develop with normal use.
• Limited lifetime warranty, if repair is required after 5 years from the date of purchase, ACEBEAM will charge for parts.
Please keep your warranty card in contacting the authorized distributors for after-sale maintenance, and the customer information is required to fill out if repair is needed.
